Factory direct price cement equipment double valve float shoe & float collar for sale1

2 year ago

15 0 

2 year

Product details

Products Description

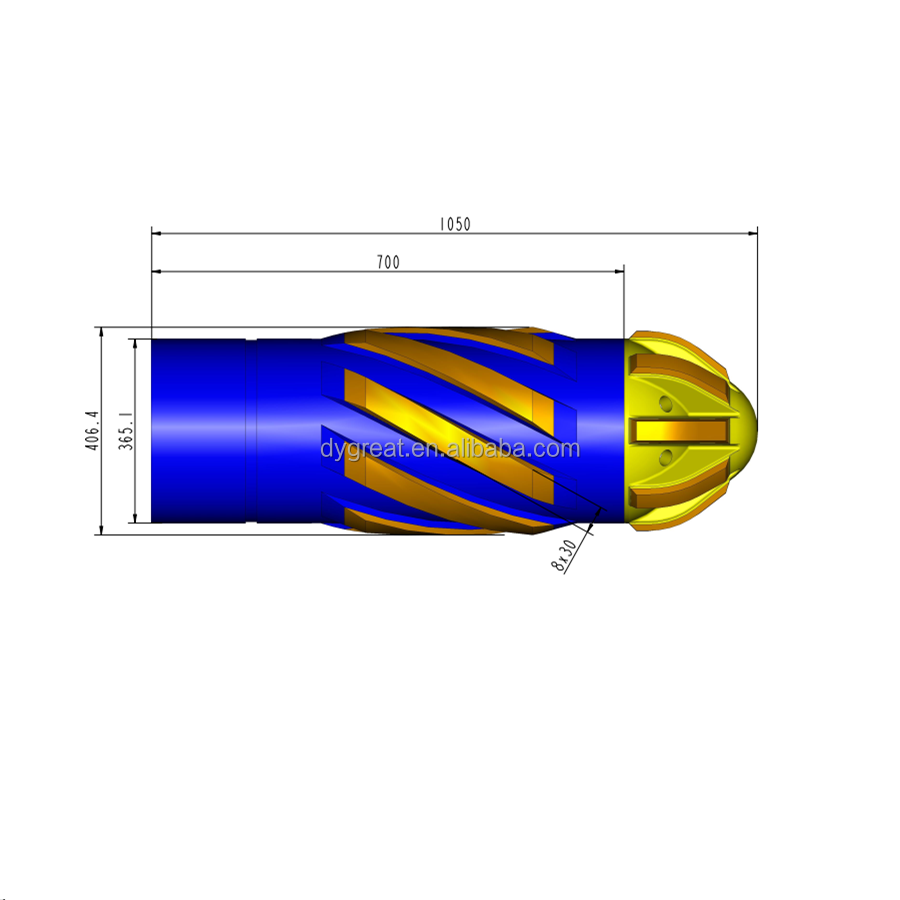

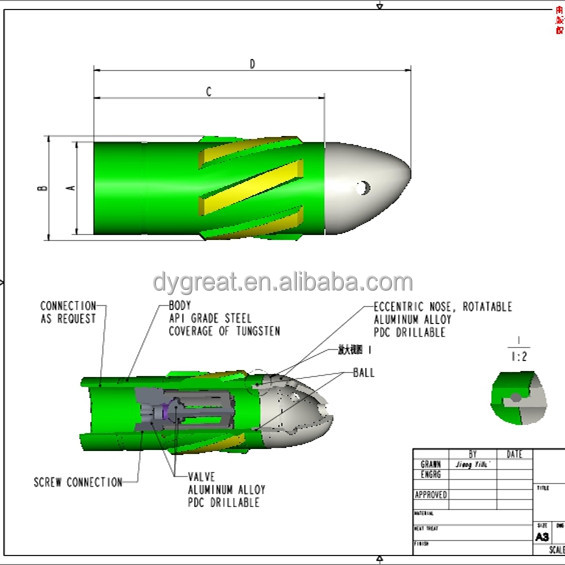

Reamer shoe system is a casing shoe that overcomes welbore obstructions to guide casing or liners to total depth (TD). The eccentric guide nose climbs ledges and negotiates obstructions while the cutting structure reams out tight spots or obstruction in the wellbore. Compatible with all casing and liner hanger assemblies, our Reamer Shoe provides highly effective protection- against unexpected or anticipated casing and liner running problems, and has been specifically designed for potentially difficult wellbore conditions such as swelling shales, ledges and washed out areas of wellbore.

Features of our reamer shoe:
API Standard Casing Reamer Shoe
Tough durable profiled cement nose
Fitted with High flow phenolic float valve tested in excess of API test procedures
5,000 & 10,000psi Valves Available
Double Valve Option Available
Autofill Option Available
New and Improved cementing process for valve retention
Cement tested to 5000 & 10,000psi
Material: P-110, K55, J55, N80
Thread Type: BTC, STC, LTC, NEW VAM or BLANK THREAD &Customized
Size Available: 5 1/2", 6 5/8", 7", 8 5/8", 9 5/8", 10 3/4", 11 3/4", 13 3/8", 16", 18 5/8", 20"

Product Paramenters

Specification	In-Dia	Out-Dia	Height	Forward pressure	Backward pressure	Connect screw thread	Material	Standard
FG-FZQ140	154	122	400	20MPa	25MPa	5-1/2"LCSG	40Cr	SY/T5618-2000
FG-FZQ178	194	159	400	20MPa	25MPa	7"LCSG	40Cr	SY/T5618-2000
FG-FZQ245	270	220	450	20MPa	25MPa	9-5/8"LCSG	40Cr	SY/T5618-2000
FG-FZQ340	365	313	450	10MPa	10MPa	13-3/8"LCSG	40Cr	SY/T5618-2000
FX-FZQ140	154	122	500	-	25MPa	5-1/2"LCSG	40Cr	SY/T5618-2000
FX-FZQ178	194	159	500	-	25MPa	7"LCSG	40Cr	SY/T5618-2000
FX-FZQ245	270	220	550	-	25MPa	9-5/8"LCSG	40Cr	SY/T5618-2000
FX-FZQ340	365	313	550	-	10MPa	13-3/8"LCSG	40Cr	SY/T5618-2000

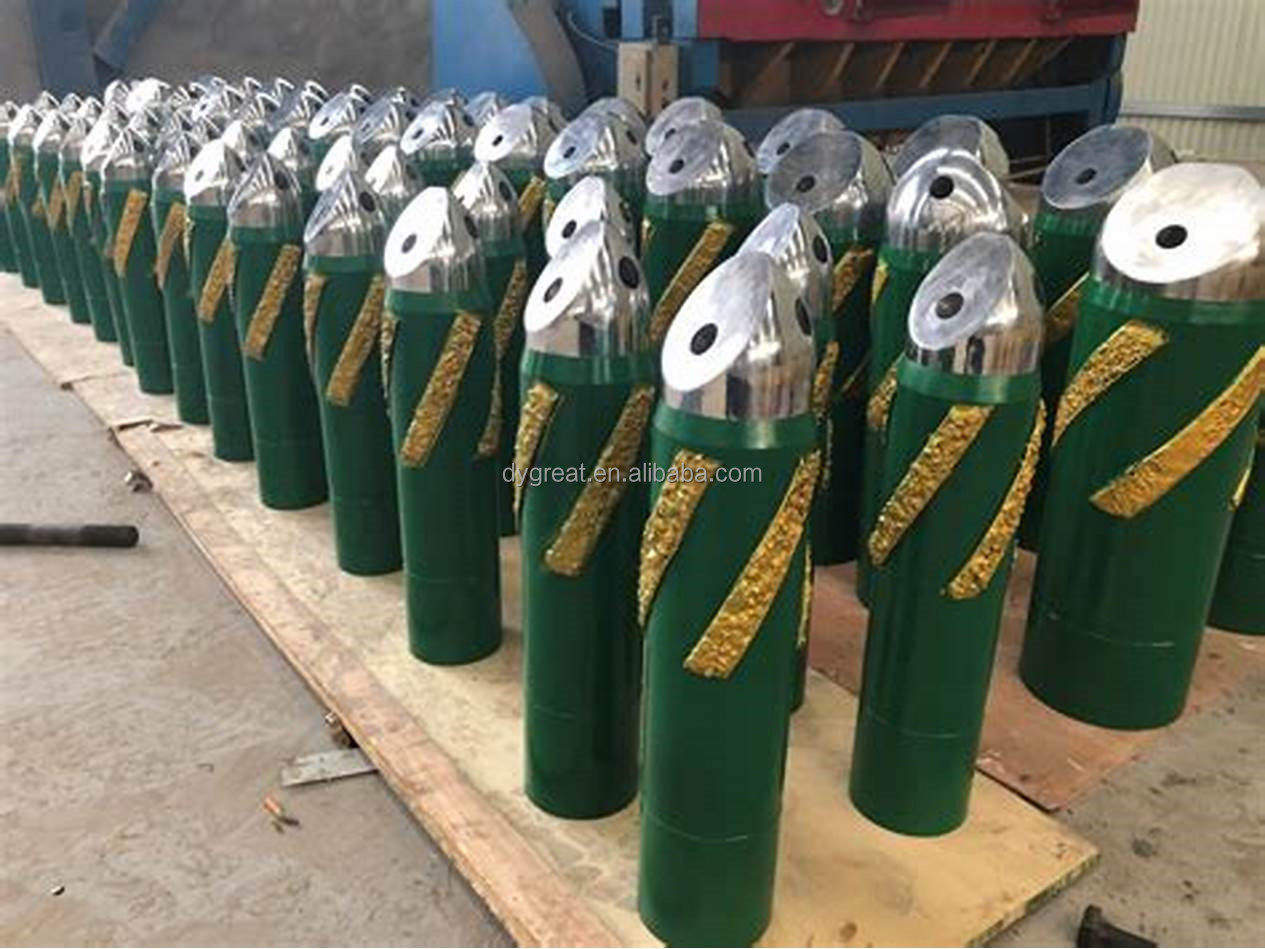

Details Images

Cementing Accessories, Casing Centralizer, Pressure Vessels, Cementing Tool, Pumping Units, Centralizers, Accessories, Sucker Rod
