cementing tool float shoe & float collar for well drilling1

About reamer shoe:

    Reamer shoe system is a casing shoe that overcomes welbore obstructions to guide casing or liners to total depth (TD). The eccentric guide nose climbs ledges and negotiates obstructions while the cutting structure reams out tight spots or obstruction in the wellbore. Compatible with all casing and liner hanger assemblies, our Reamer Shoe provides highly effective protection- against unexpected or anticipated casing and liner running problems, and has been specifically designed for potentially difficult wellbore conditions such as swelling shales, ledges and washed out areas of wellbore.

Features of our reamer shoe:

API Standard Casing Reamer Shoe

Tough durable profiled cement nose

Fitted with High flow phenolic float valve tested in excess of API test procedures

5,000 & 10,000psi Valves Available

Double Valve Option Available

Autofill Option Available

New and Improved cementing process for valve retention

Cement tested to 5000 & 10,000psi

Material: P-110, K55, J55, N80
Thread Type: BTC, STC, LTC, premium threads or BLANK THREAD
Size Available: 5 1/2", 6 5/8", 7", 8 5/8", 9 5/8", 10 3/4", 11 3/4", 13 3/8", 16", 18 5/8", 20"

Connection:

    Our reamer Shoe connections are available in all types of API and Premium connections depending on customer request, as well as with flush connections.

The smooth body design has eliminated potential areas which can trap solids and cuttings.

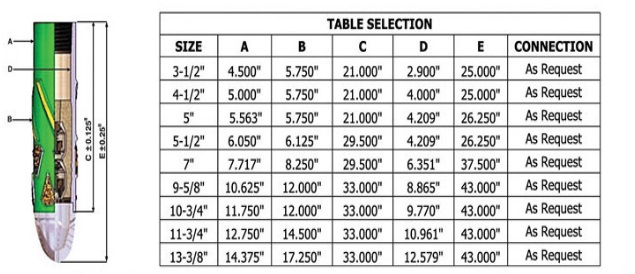

Technical specifications of float shoe

Technical specifications of float collar

RUN WITH LOW TORQUE STM SLIDER-3HD CENTRALIZER C/W. BEVELED STOP COLLAR TO OPTIMIZE PERFORMANCE

Freely rotating SLIDER-3HD centralizer installed with 2 heavy duty beveled Stop Collars run above and below the centralizer as per STM spacing program recommendations helps support the tool and reduces torque and drag during running operations.
