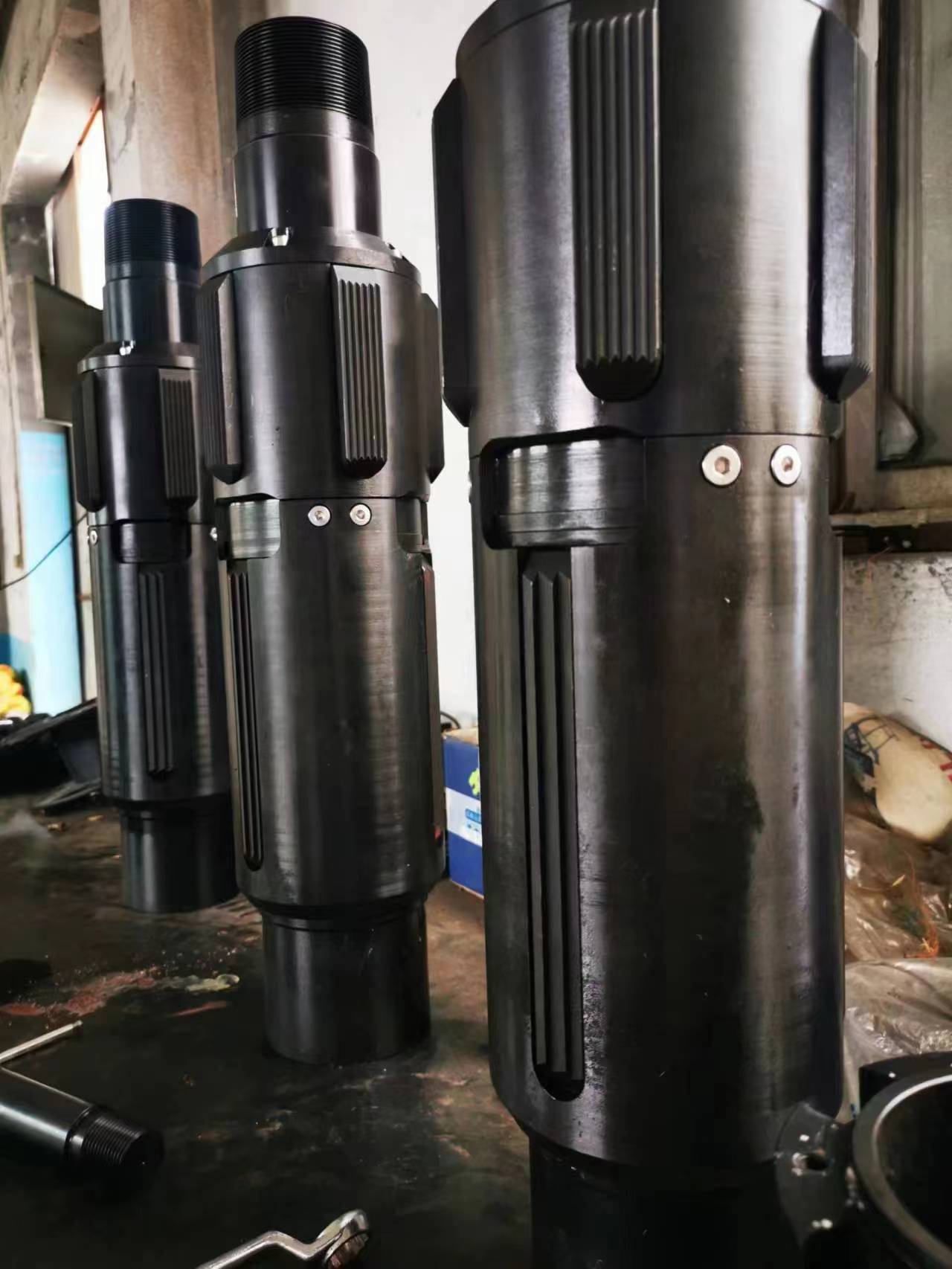

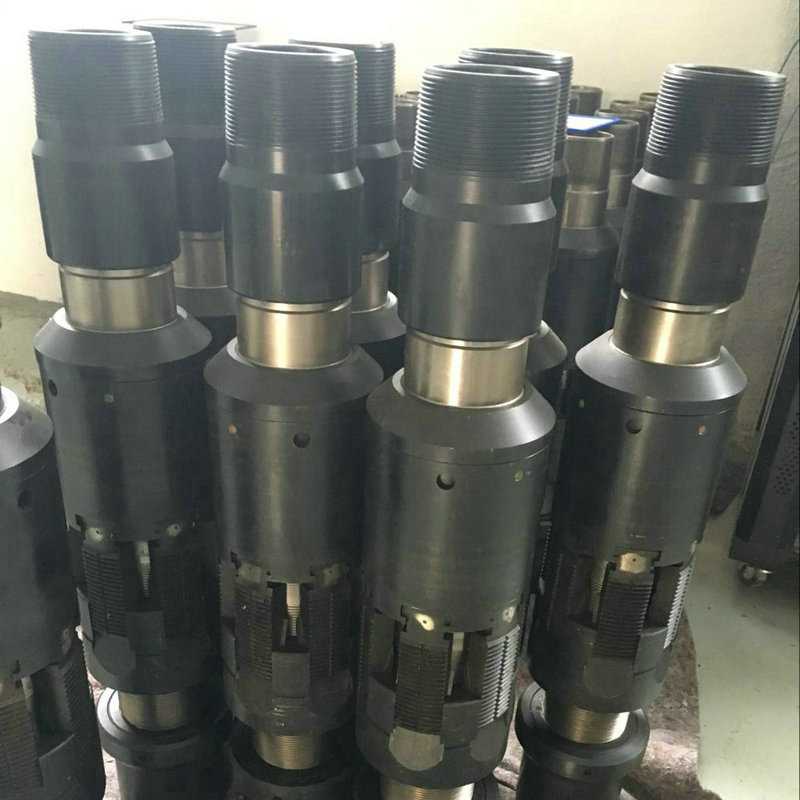

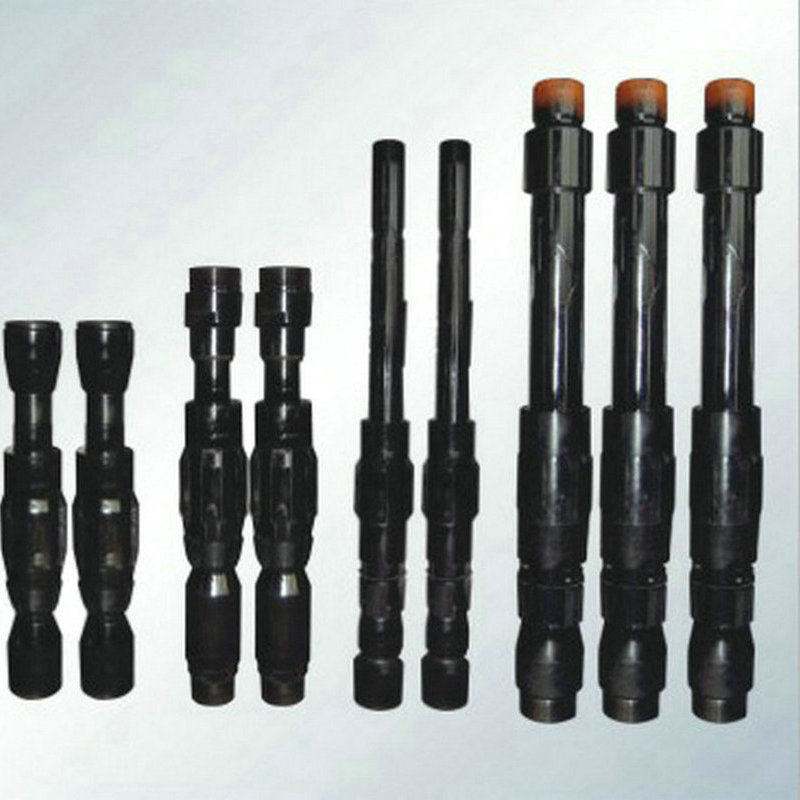

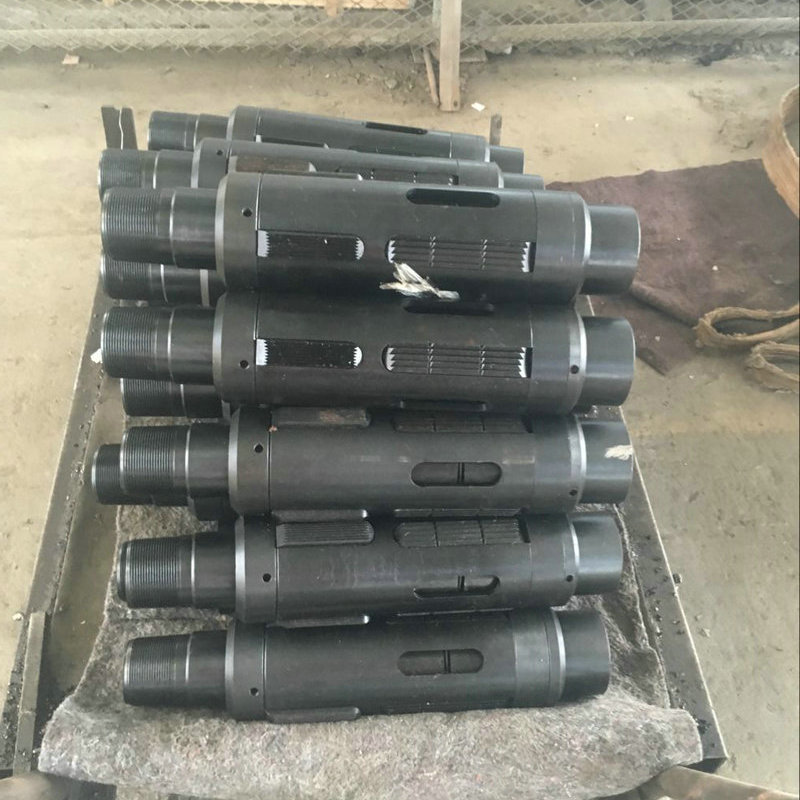

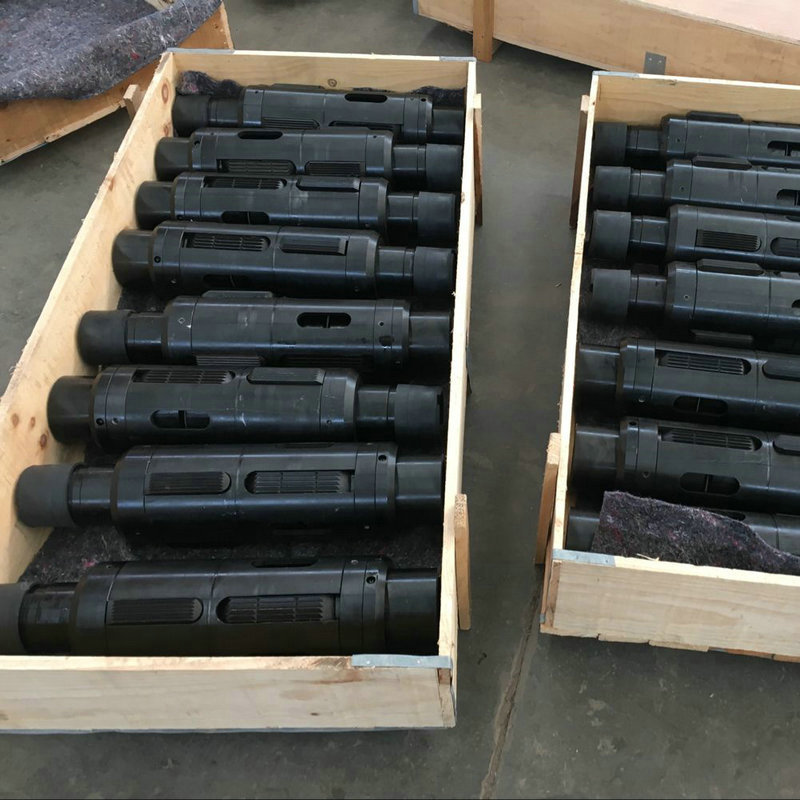

API Tubing Anchor
- Tubing anchor, which is used for oilfield to extract oil with pumping unit, fix the tubing anchor on the casing, to prevent the pipeline moving down and up
- It is made up of coupling, central tube, traction body, friction block, reset spring, upper cone, lower cone, slip sleeve, bi-direction slips, safety pin, safety pin cap and the bottom joint and more
- Long service life and easy operation
|
Casing size (inch) |
Anchor body OD (mm) |
Actual anchor OD (mm) |
Torque anchor ID (mm) |
Connections (inch) |
|
4-1/2” |
92.2 |
92.2 |
50.8 |
2-3/8”EU |
|
5-1/2” |
112.8 |
108.0 |
62.0 |
2-7/8”EU |
|
6-5/8” |
138.4 |
133.4 |
62.0 |
2-7/8”EU |
|
7” |
148 |
143.0 |
76.0 |
3-1/2”EU |
|
9-5/8” |
190 |
209.6 |
100.5 |
4-1/2”EU |
