China perfissional ESP Cable protector cross coupling electrical cable sleeve oil tubing for wholesale1
2 year ago

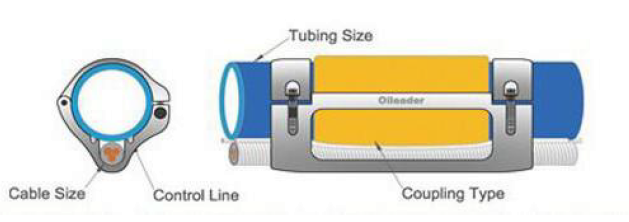

Cross coupling cable protector for tubing and casing
Pipe Size:2-3/8”,2-7/8”,3-1/2”,4”,4-1/2”,5”,5-1/2”,6”,6-3/8”,7”……
Coupling type:EUE,NUE,FOX,NEW V-AM,V-AM TOP,NK3SB,BGT11….
Cable size:#1Flat, #2Flat, #3Flat,
#1Round, #2Round, #3Round….
Control line: 1/8”,1/4”, 3/8”, 11mm*11mm…….
1. General introduction
The casting cable protector finds extensive use in cross coupling, tubing, safety valve protection, completions, fixation, well repair, and gauge completions. Precision casting techniques are employed to manufacture the protector's body using high-quality materials, ensuring the product's reliability. Its distinctive streamlined design effectively prevents damage during dynamic movements of the production tubing, ensuring uninterrupted continuity and accuracy in gauge complications. Additionally, the cable protector can be quickly installed as it lacks separate parts or pins, thereby reducing the risk of hang-ups. Furthermore, it can be easily uninstalled and reinstalled when necessary.
It is noteworthy that all cable protectors feature dual protection to effectively resist corrosion. Additionally, the hinges are spot-welded to bolster the overall integrity of the product, and a spring friction pad gripping system is incorporated to provide superior grip. Furthermore, the protectors are resistant to slipping and rotation, enabling non-destructive gripping action. Lastly, the design is formulated to eliminate compression-induced damage to the conductors, showcasing a commitment to safeguarding the integrity of the cables.
3. Specifications:
The cable protectors are manufactured using low carbon steel or stainless steel and are offered in cross-coupling and mid-joint configurations. They are suitable for API tubing sizes ranging from 2 3/8" to 7" and can be tailored to accommodate flat, round, or square cables, chemical injection lines, umbilicals, and similar components. Furthermore, a multichannel design is available to effectively separate multiple lines. These protectors can be customized upon request to meet specific requirements, ensuring a tailored solution for varied applications.
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
