Good Quality API 11B Well Oil Drilling Tool Steel Sucker Rod For Sale
Product Name: sucker rod, polished rod and accessories
Product Description: Our company produce and operate various standard sizes of sucker rod and the polished rod.
Grade of steel including:C, K, D, KD, H, the HL, HY, etc..
Polished rod surface treatment including:polishing and chrome plated layer, tungsten alloy layer.
Rod accessories including:sucker rod nipple, sucker rod coupling and variable diameter nylon coupling, sucker rod nylon centralizer, sucker rod roller centralizer, polished rod clip, polished rod sealing device, etc.

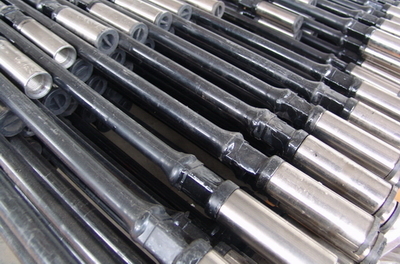

Sucker rod picture
Sucker rod specifications and main dimensions
|
Specification |
Diameter of rod body (mm) |
Thread nominal diameter (in) |
outside diameter (mm) |
Wrench width (mm) |
Length(m) |
|
5/8” |
16 |
5/16 |
31.8 |
22.2 |
---- |
|
3/4” |
19 |
11/16 |
38.1 |
25.4 |
|
|
7/8” |
22 |
13/16 |
41.3 |
25.4 |
|
|
1” |
25 |
13/8 |
50.8 |
33.3 |
|
Specification |
Connecting rod size (mm) |
Thread nominal diameter (mm) |
outside diameter (mm) |
Length |
Grade |
|
5/8 T |
16 |
15/16 |
38.1 |
101.6/4 |
T |
|
3/4 T |
19 |
1/16 |
41.3 |
||
|
7/8 T |
22 |
3/16 |
46.0 |
||
|
1 T |
25 |
3/8 |
55.6 |
Variable diameter coupling picture
Variable diameter coupling specification and main size
|
Specification |
Thread nominal size |
outside diameter (mm) |
Length |
Grade |
|
YJG5/8-3/4 |
15/16-11/16 |
41.3 |
101.6/4 |
T |
|
YJG3/4-7/8 |
11/16-13/16 |
46.0 |
||
|
YJG7/8-1 |
1 3/16-1 3/8 |
55.6 |
Company Information
Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
