API 11AX Downhole Insert Rod Sucker Rod Pump For Deep Oil Well
Product Features
For some large production wells, larger bore of tubing pump can be worked if the on-off connector is installed. Tubing pump is the strongest pump. It has large flowing area for fluid and it is suitable for producing viscosity oil.
Stationary Heavy Wall, Tubing Pump, its standing valve can not be pulled out.
1.High quality with competitive price
2.High efficiency of sucking oil
3.anti-corrosive and wear-resisting

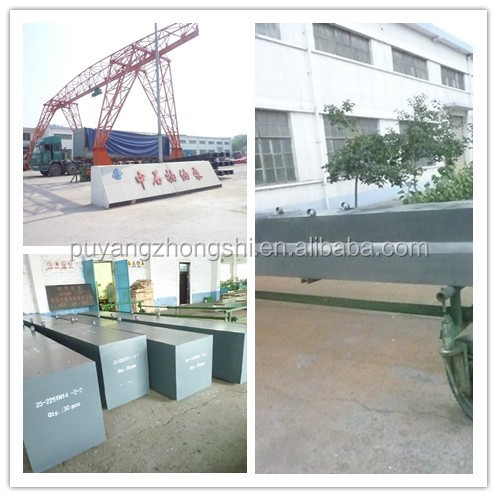

Our Oil Well Pump Plant, annual output of pump reaches to 2000sets, besides tubing pump and rod pump confirm to API standard, we have researched and developed sand proofing pump, thick oil use pump, airlock proofing pump and other special oil well pump.
Tubing Size
2-7/8"
3-1/2"
3-1/2"
Pump Diameter
2 1/4"-1 1/2"
2 3/4"-1 1/2"
2 3/4"-1 3/4"
Barrel OD
4.500"
5.250"
5.250"
Sucker Rod thread
3/4"
7/8"
7/8"
Connecting Tubing Thread
2-7/8"-8EU
3-1/2"-8EU
3-1/2"-8EU
Code
25-225/150PFK
30-275/150PFK
30-275/175PFK
Pump Diameter
2 1/4"-1 1/2"
2 3/4"-1 1/2"
2 3/4"-1 3/4"
Pump Constant
0.327
0.618
0.524

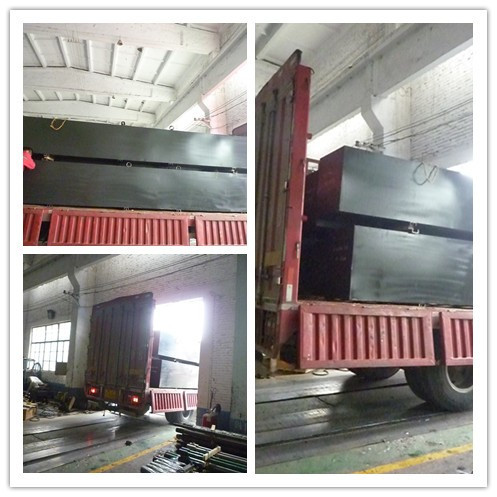

Packaging & Shipping
