API Standard Oilfield Cementing Tools Casing Accessories Bow Type Spring Centralizer1
2 year ago

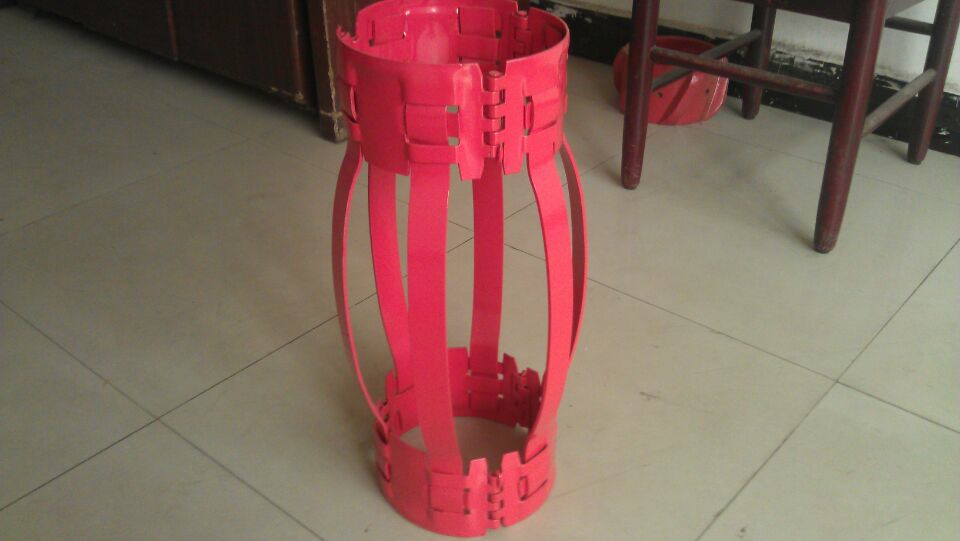

API Standard Oilfield Cementing Tools Casing Accessories Bow Type Spring Centralizer
Non-weled Hinged Rigid Crest Casing Centralizers
- Under reamed and washed-out wells.
- The high-quality, spring-steel bows are heat treated to optimize standoff in gauge holes
- Various bow shapes and heights are available to provide optimum restoring forces for most well requirements.
| Specification | In-Dia(mm) |
Largest Dia (mm) |
Wall Thickness(mm) | Height (mm) | Spring Number | Total height(mm) |
| 20”*26 | 510 | 660 | 3~5 | 55 | 12 | 600 |
| 18-5/8”*24 | 476 | 610 | 3~5 | 55 | 12 | 600 |
| 13-3/8”*17-1/2” | 342-347 | 450 | 3~5 | 55 | 11 | 650 |
| 10-3/4”*12-1/4” | 274-276 | 330 | 3~5 | 55 | 9 | 650 |
| 8-5/8”*12-1/4” | 223-228 | 330 | 3~5 | 55 | 8 | 650 |
| 9-5/8”*12-1/4” | 250-255 | 330 | 3~5 | 55 | 8 | 650 |
| 5-1/2”*8-1/2” | 142-148 | 225 | 3~5 | 55 | 5 | 650 |
| 7”*9-5/8” | 181-186 | 255 | 3~5 | 55 | 6 | 650 |
| 7”*8-1/2” | 181-186 | 235 | 3~5 | 55 | 6 | 650 |

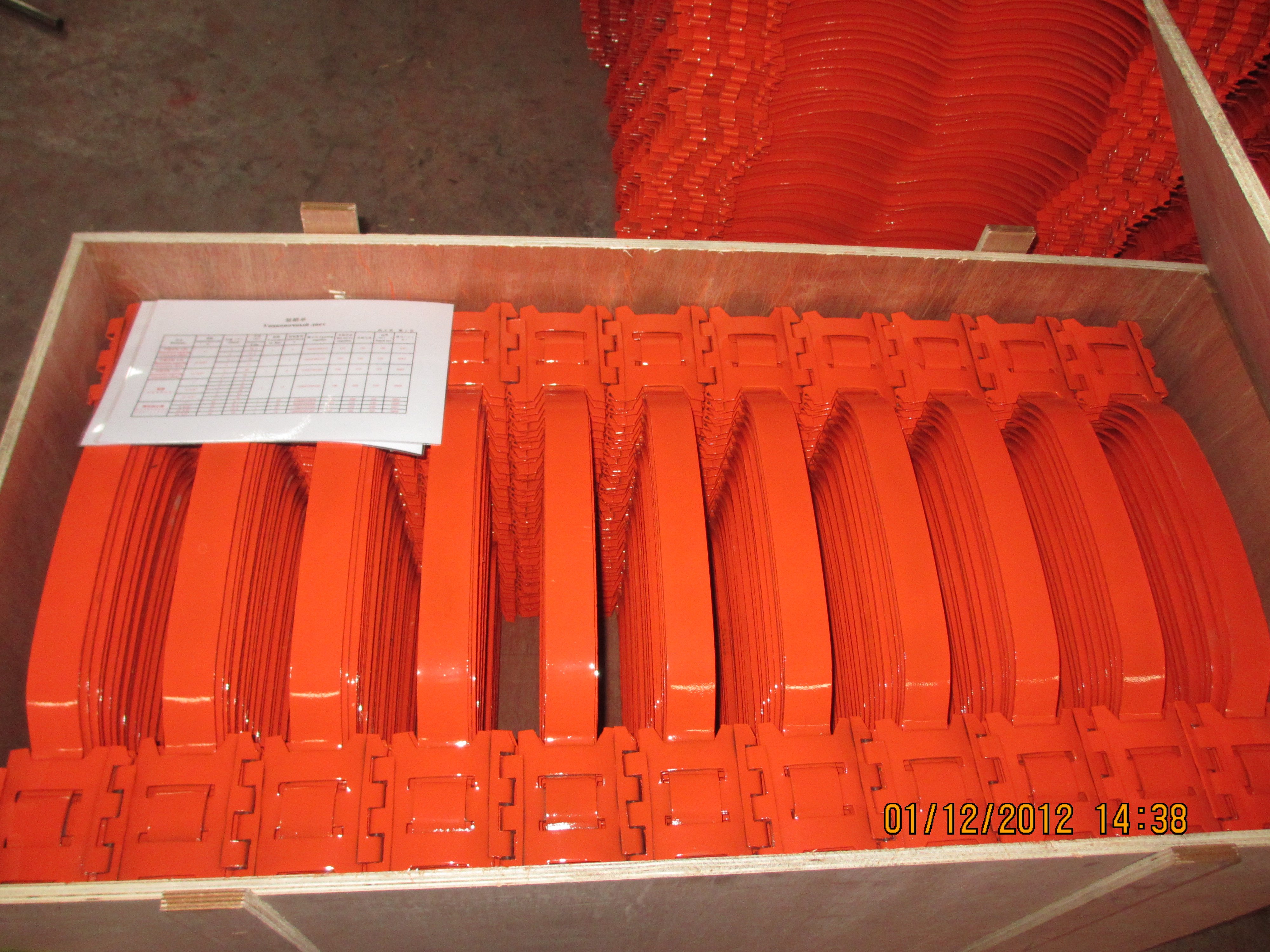

1,Wooden box package for cargo which quantity less than one 20FT/40FT container.
2. Group packing with Anti-collision foam for cargo which quantity more than 20FT/40FT container
3. According to customer' requirements
