Meskernel-PTFS-1
2 year ago

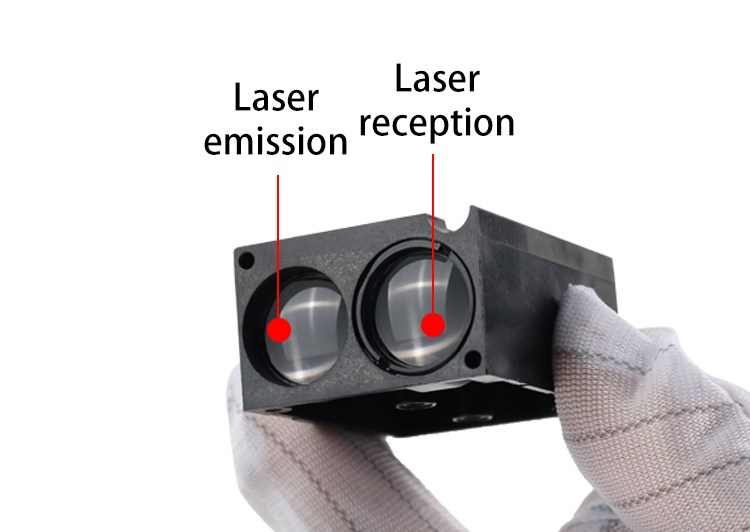

The Meskernel 100HZ High-speed laser distance lidar sensor employs TOF technology to measure distances with a range of accuracy up to 1m. This module is designed for applications involving dynamic target positioning, obstacle detection, and monitoring in various industries, including drones, vehicles, and industrial robots.
|
Range
|
3-400m
|
|
Maximum Single Measurement Time
|
About 1s
|
|
Absolute Accuracy
|
±1m
|
|
Frequency
|
100 Hz
|
|
Resolution
|
0.1m
|
|
Light
|
905 nm
|
|
Voltage
|
+2.5V~+3.5V
|
|
Current
|
100mA
|
|
Power
|
330mW
|
|
Operating temperature
|
0~50℃
|
|
Communication Interface
|
TTL/RS232/RS485/Bluetooth
|
|
Serial level
|
TTL 3.3V
|
|
Size
|
43*35*21mm
|
|
Weight
|
About 30g
|
The difference between the phase distance sensor and the pulse distance sensor is that the phase is the visible light used, the wavelength is 620-650nm, the general measurement distance is within 200 meters, the pulse is the invisible light used, the wavelength is 905nm, the measurement distance is generally several hundred thousand meters.
We also have long range laser distance sensor, High precision laser distacne sensor, IP protection sensor, industrial laser distance sensor, TOF sensor, welcome to consult us!
