LDK60-786 High Accurate Laser Distance Sensor

Product Introduction

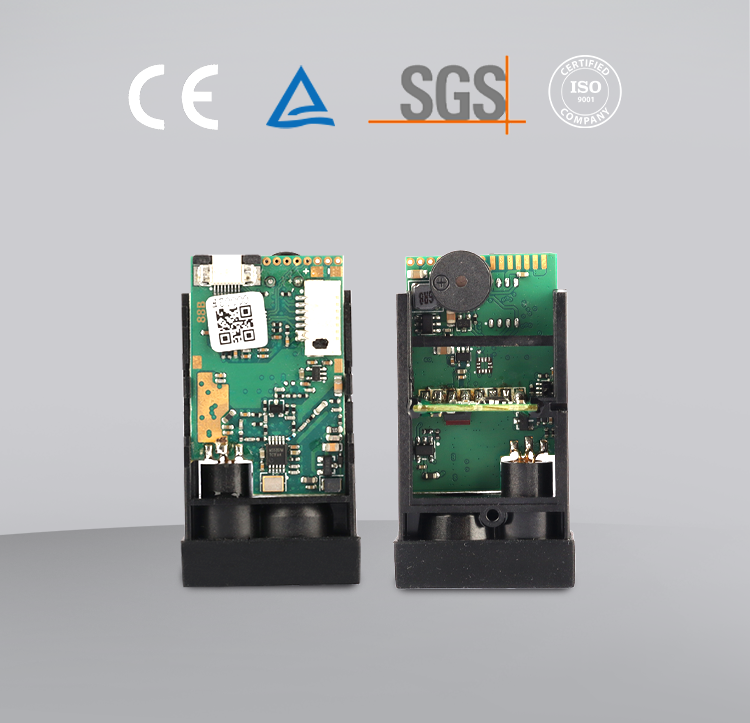

Introducing the LDK60-786, a high-accuracy laser distance meter from our advanced series. This cutting-edge device is designed for precise measurements, offering an extended range, compact size, and lightweight build. The LDK60-786 is perfect for a wide range of professional applications where accuracy and reliability are paramount.

“If you are looking for a longer range device of your application, check out our Pulse Ranging Sensor.”

“For this module, we accept frequency customization ranging from 3 to 20Hz.”

Key Features

• Measurement Range: 0.03 to 60 meters
• Size: 46.80 x 26.00 x 13.00 mm
• Measurement Time: 0.1 to 4 seconds
• Weight: 9g ± 0.9g
• Accuracy: ±3 mm
• Measurement Frequency: 3 to 10 Hz
• Laser Specifications:
• Wavelength: 620 nm to 690 nm
• Class: Class Ⅱ
• Power: <1 mW
• Temperature Range:
• Operation: 0 to 40℃
• Storage: -25 to 60℃
• Interfaces Supported: USART, RS232, RS485

Applications

The LDK60-786 is ideally suited for applications requiring high precision and rapid measurements, including:

• Industrial Automation: Providing accurate positioning and distance measurement for automated machinery and systems.
• Robotics: Enhancing navigation and obstacle detection in robotic applications.
• Surveying and Mapping: Delivering precise distance measurements for topographical surveys and mapping tasks.
• Construction: Facilitating accurate site measurements and material estimation.
• Consumer Electronics: Integrating into devices that require precise distance sensing capabilities.
• Research and Development: Supporting scientific research with accurate and reliable distance measurements.

Conclusion

The LDK60-786 High Accurate Laser Distance Meter is a versatile and reliable tool designed to meet the demands of various professional fields. With its extended measurement range, compact design, and exceptional accuracy, it is an essential device for achieving precise and dependable measurement results.

“If a higher frequency is needed, check out our High Frequency Ranging Sensor Module.”

“For industrial use, please check out our IP protection sensors.”
