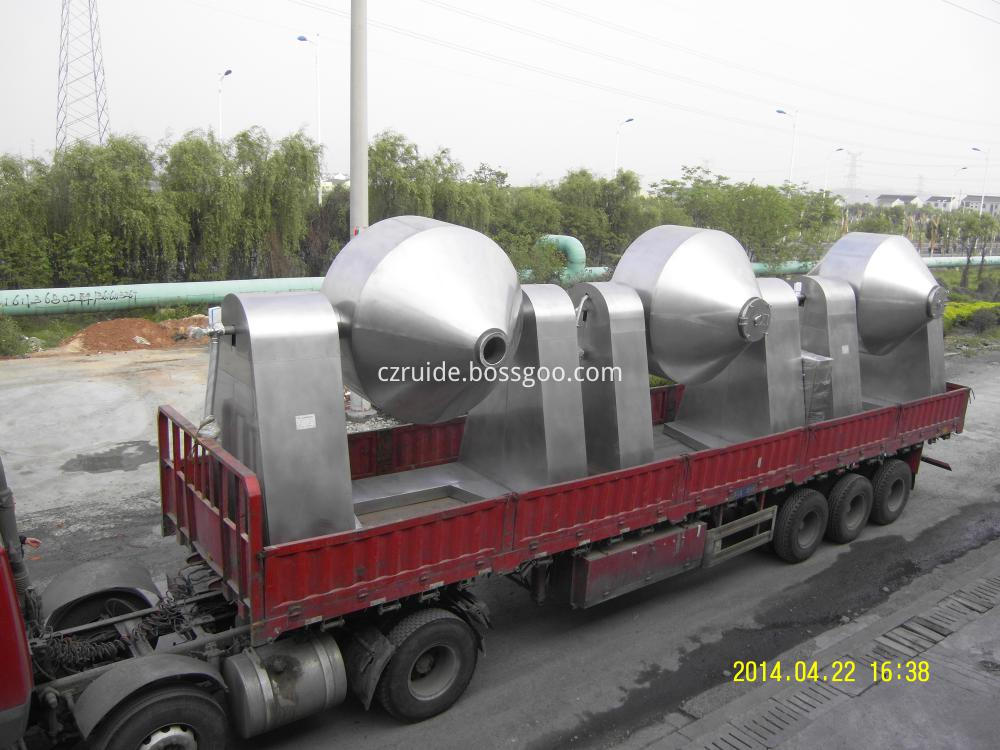

SZG double cone rotary vacuum dryer5
2 year ago
Working Principle
Raw material is charged in batches & is subjected to indirect heating while at the same time undergoing rotary motion of the cone assembly. The conical shape of the dryer ensures efficient circulation of hot liquid heating media.
Drying takes place when heat flows from outer cone through a jacket, and vacuum is applied in the inner cone. The drying operation is based on the principle that water or other volatile product moves from a zone of low pressure. This is accomplished by warming the product to be dried to raise the vapour pressure of the zone of low pressure. This is accomplished by warming the product to be dried to raise the vapour pressure of the absorbed or free liquid, by vacuum, or by sweeping it away with an air current. Thus the essential conditions for effective drying are efficient and uniform heat transfer throughout the batch and rapid removal of the vapour.
◎Let heat source(for example,low pressure steam or thermal oil)pass through the sealed Jacket The heat will be transmitted to raw material to be dried through inner shell;◎Under driving of power,the tank is rotated slowly and the raw material inside it is mixed continuously.The purpose of reinforced drying can be realized;
◎The raw mate rial is under vacuum The drop of steam pressure makes the moisture(solvent)at the surface of raw material become saturation and will evaporate The solvent will be discharged th rough vacuum pump and recovered in time The inner moisture(solvent)of raw material will infiltrate,evaporate and discharge continuously The th ree processes are carried out unceasingly and the purpose of drying can be realized within a shon time.
Material to Be Dried
It is suitable for the raw materials that need to concentrate,mixed and dried at low temperature(for example,biochemistry)products in chemical,phamaceutical and foodstuff industries.Particularly it is suitable for the raw materials that are easy to be oxidized,volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
Characteristics
◎When oil is used to heat,use automatic constant temperature control.It can be used for drying biology products and mine Its temperatu re of operation can be adjusted form 20-160oC.
◎Compared to ordinal d ryer,its heat efficiency will be 2 times higher.
◎The heat is indirect So the raw material can not be polluted.
◎It is in conformity with the requi rement of GMR It is easy in washing and maintenance.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- Granular wet materials can be handled.
- Low temperature operation is possible.
- Solvent recovery can be carried out
- System is batch
- High energy efficient
- Mode of heating is
indirect
- Conduction drying
- Closed operation
Typical Applications
|
» Pharmaceuticals » Crystalline Materials » Insecticides » Pesticides |
