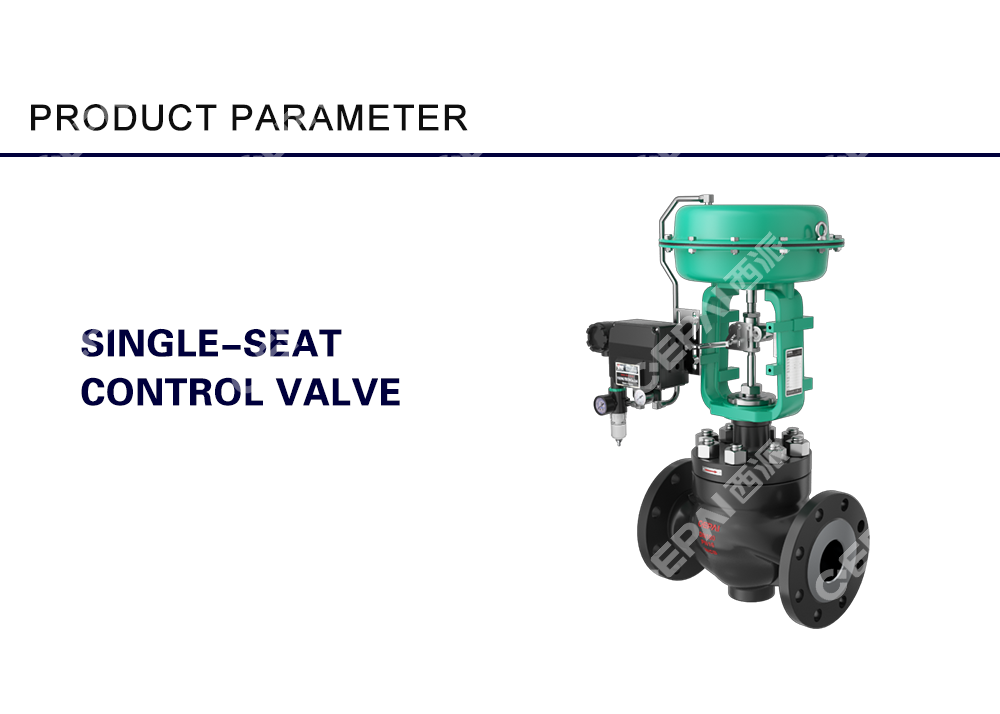

Single seat control valve
2 year ago
Product Description:
Pneumatic single-seat control valve is composed of valve body, valve seat, valve core, actuator, etc. The valve body is usually made of cast iron, stainless steel and other materials, with good corrosion resistance and sealing properties. The valve seat and valve core are usually made of wear-resistant and high-temperature-resistant materials to ensure the reliability and service life of the valve. The actuator usually uses a pneumatic device to drive the movement of the valve core through compressed air or gas to achieve fluid regulation and control.
Description Features:
1. High-precision adjustment: Pneumatic single-seat control valve adopts precision valve core design and pneumatic actuator, which can achieve precise flow and pressure adjustment and is suitable for occasions with high fluid flow and pressure requirements.
2. Fast response: The pneumatic single-seat regulating valve has a fast response speed and can quickly adjust the valve opening to meet the changing requirements of fluid flow and pressure.
3. Strong corrosion resistance: The valve body, valve seat and valve core are made of corrosion-resistant materials, which can operate stably in corrosive media for a long time and are suitable for chemical, petroleum, electric power and other industries.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Type | straight single seat ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P): -17-+230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
| Spool form: | upper guide single seat plunger spool |
| Adjustment characteristics: | equal percentage, linear, fast opening |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, 17-4PH, etc |
| Pneumatic actuator | |
| Model: | Film type |
| Film material: | ethylene propylene rubber sandwiched nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Gas supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | gas open (reaction), gas close (positive action) |
| Note： | ① This type of large diameter or high pressure difference regulating valve can also be equipped with straight stroke piston actuators. |
| ② If the ambient temperature is lower than -30 ° C, please contact the western technical personnel. |
| Leakage: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B16.104 Class VI |
