Ultra long pins LED 3mm LED
2 year ago

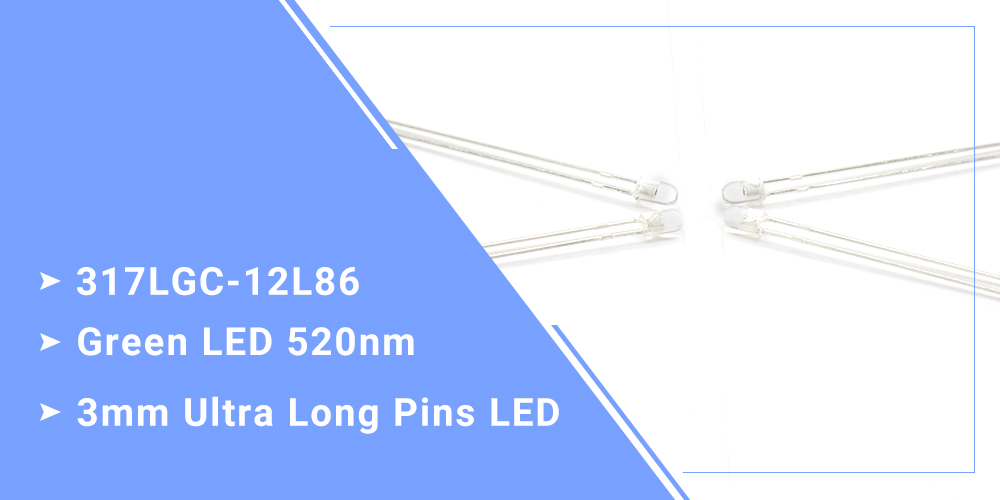

520nm 525nm Green LED 3mm LED Long Leg with Clear Lens;
317LGC-12L86 were packaged with 3mm through-hole LED clear lens. Compare with other Green Through-hole LED, what's the biggest different in this LED Lamps?
Check on the pins of Through-hole LED! This LED got a super long leg, which is 81mm for the longer pin. Common through-hole LED will just have the length on 29mm. We produce it longer than that. Which can make this green 520nm LED easy for most of LED light application. Clear lens make it have a bright light, narrow viewing angle make it have a longer lighting distance. This LED will going to zing your project!
Electrical Parameters:
Parameter
Symbol
Rating
Unit
Forward Current
IF
20
mA
Forward Voltage
V
2.8-3.0
V
Luminous Intensity
IV
10000-15000
mcd
Wavelength
λP
520-525nm
nm
Packing
Piece
1000
Bag
Vewing angle
2θ1/2
30
Deg
*Pulse forward current confition: Duty 1% and Pulse width=10us.
*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

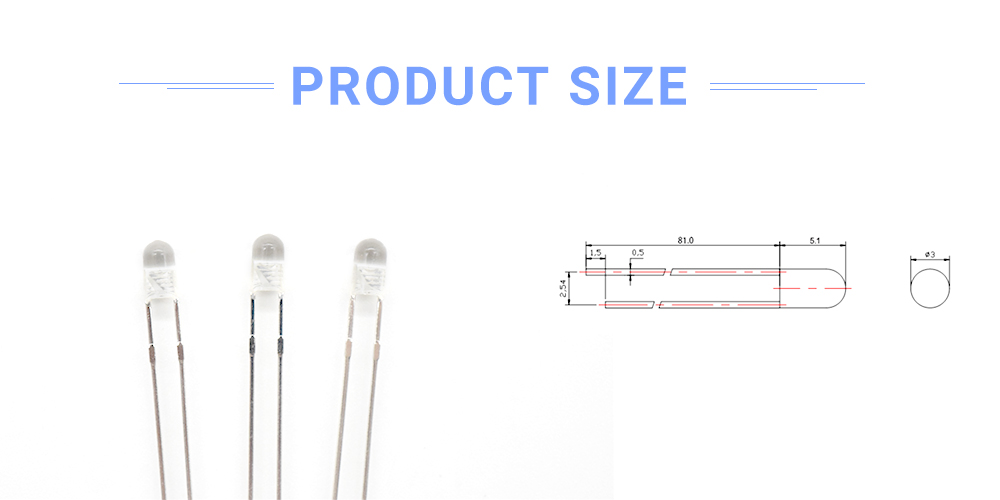

3mm LED Long Leg Size :
*This SMD LED size are also available in Yellow LED, Red Through-hole LED, Amber LED, Orange LED ect. *

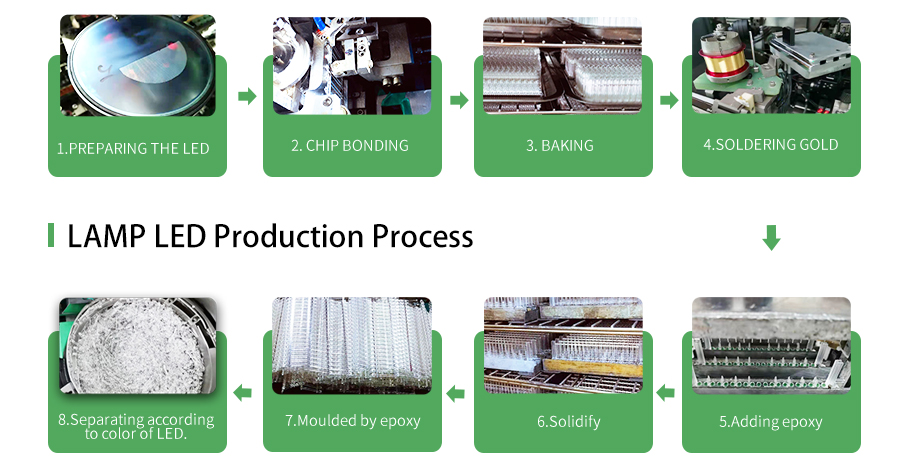

Production of LED Lamps;
