all kind of pin for PCB process
2 year ago
What's carlson pin?
Carlson pin , namely silk screen pin, is made by special steel with high precision, used on silk screen process to locate the place on PCB manufacturing,the pin tip is fixed by welding so it's very stable . Double-sided silk screen pin for pin bed, after silk screen the first side of welding, no need to bake the board,using the pin bed to hold up the PCB can silk screen the second side, saving time and improving efficiency.
Features: The material is made of special stainless steel substrate, durable.
Different size is available we accept customized for customers.
Technical data:
| Pin tip dia | 1.0mm,1.5mm,1.9mm,1.95mm,2.0mm,2.5mm,2.9mm,3.0mm ect.... |
| Pin tip hight | 1.4mm |
| Base plate size | 23*44.5mm |
| Base plate hight | 0.25mm |
| Tolerance | +0005/-0.02mm |
| Packing | 100pcs/pack,1000pcs/bag |

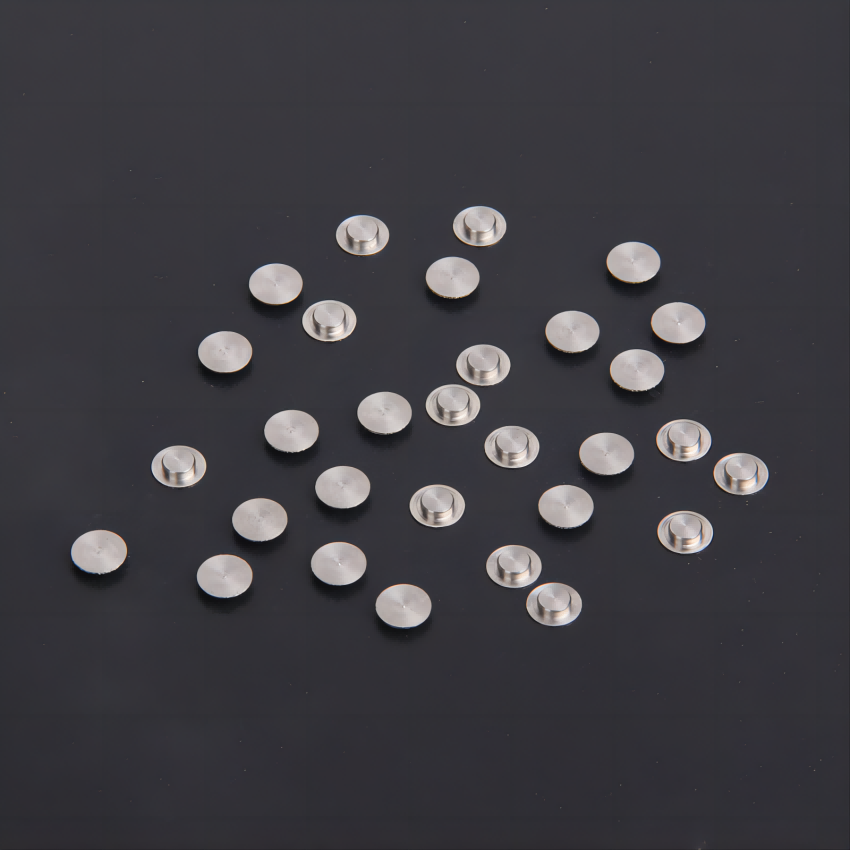

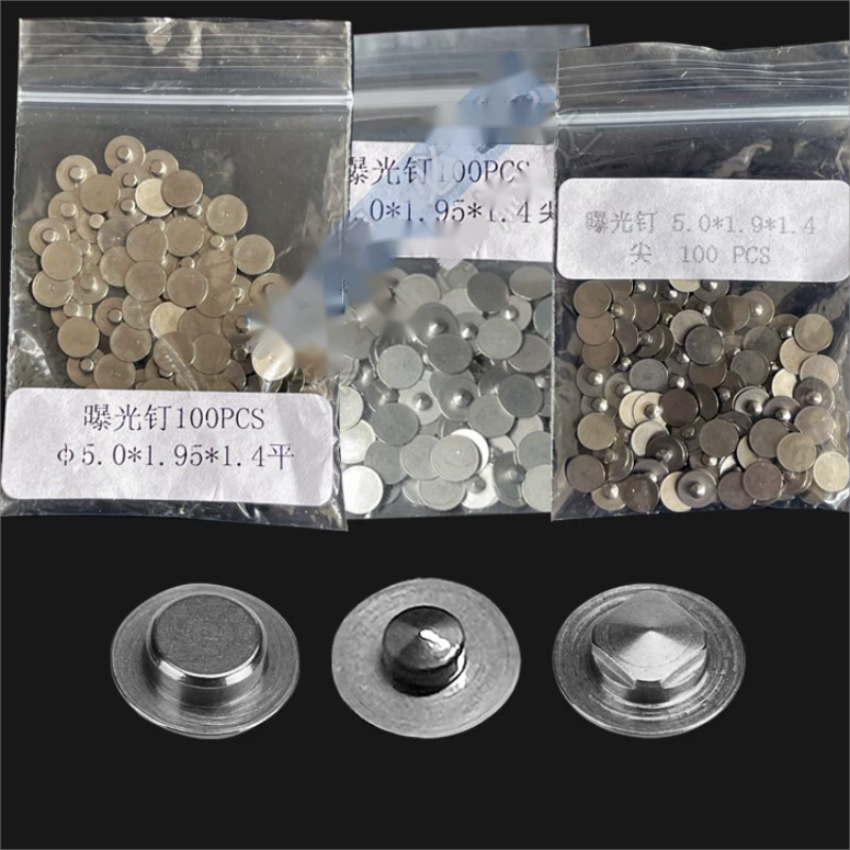

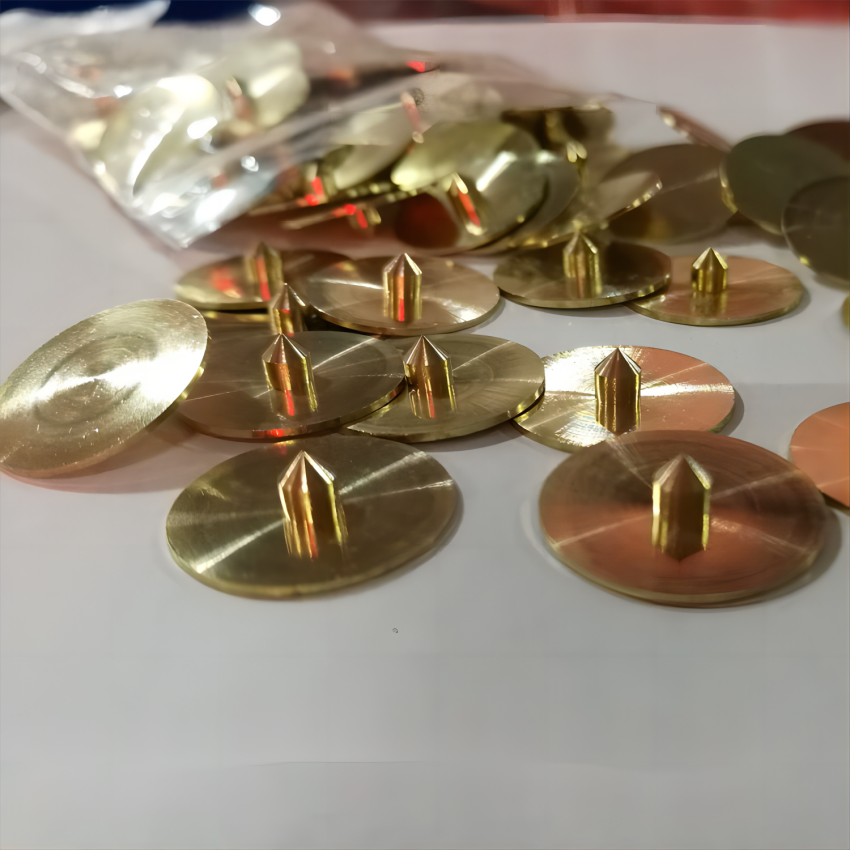

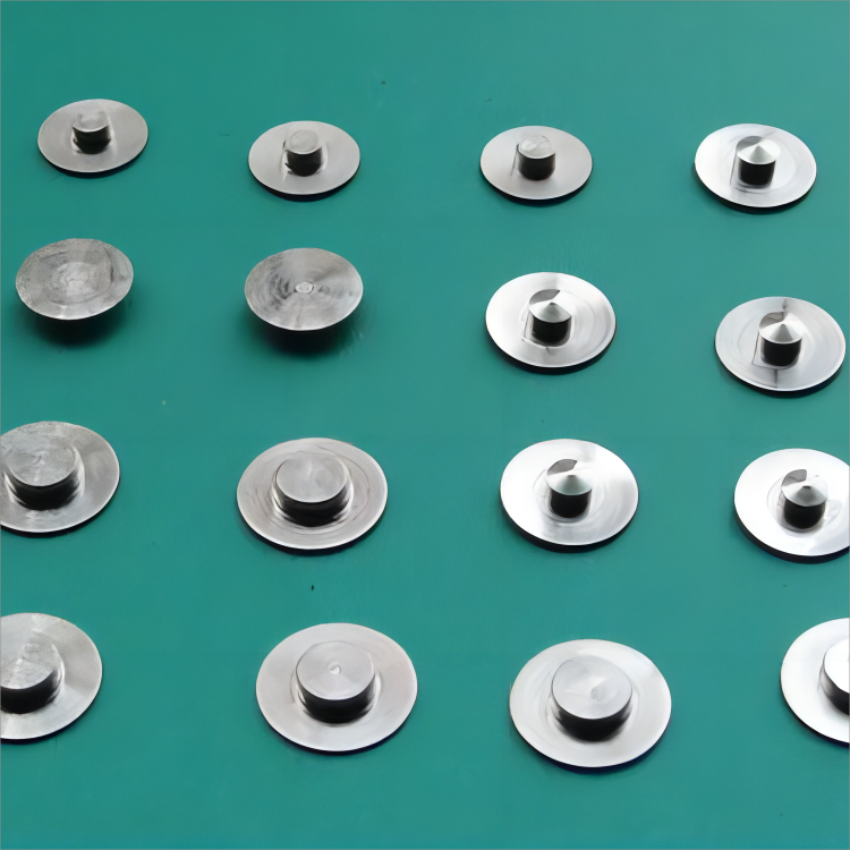

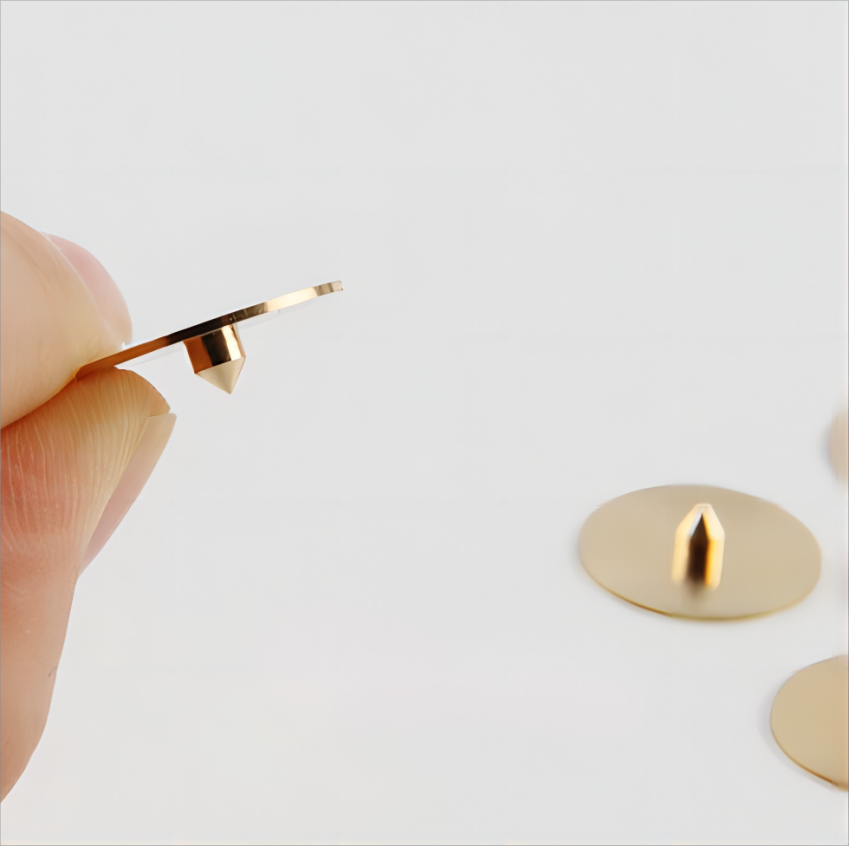

Other pins we provide: Exposure pin, carlson pin, silk screen pin, tooling pin, silk screen cooper pin,guide pin, locationing pin,positioning pin, routing pin
Welltronics Technology is a PCB material and consumables supplier in China, our pin series product include routing pin, silk scree pin, exposure pin, carlson pin ,presser pin ect.... Welcome to choose us if you have such kind of requirement.
