Guide pin，routing pin
2 year ago
What's guide pin?

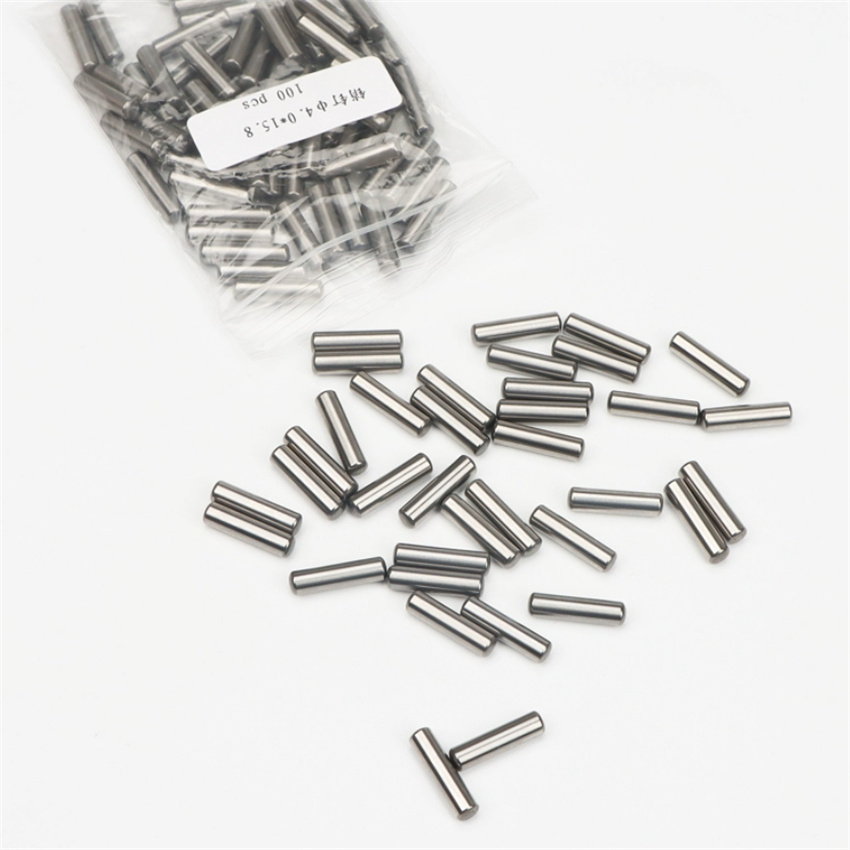

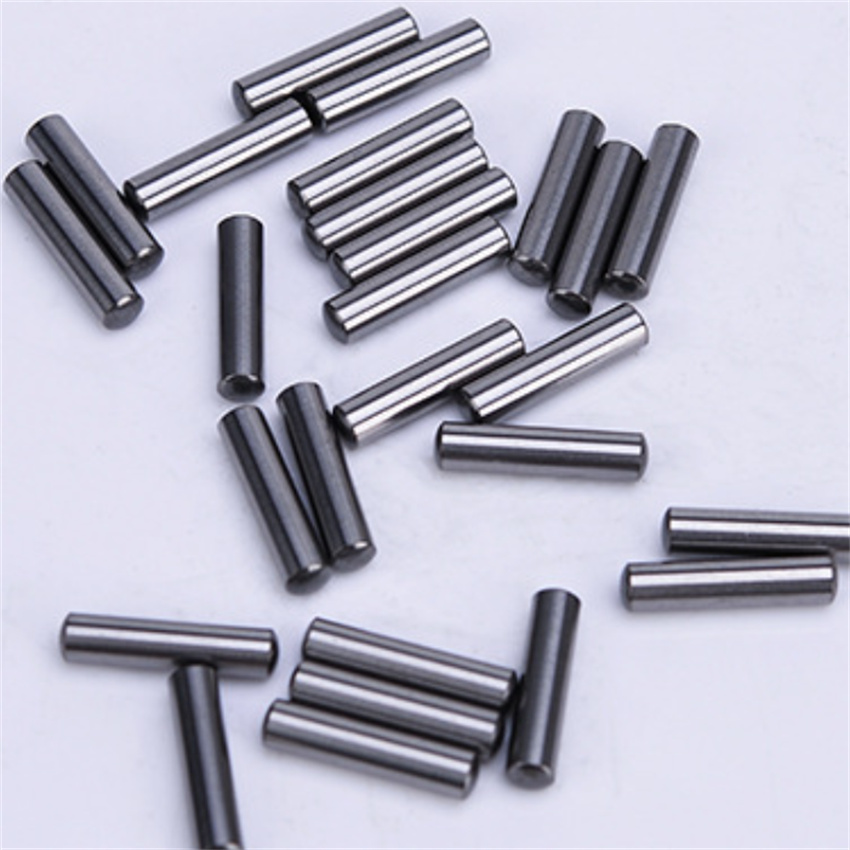

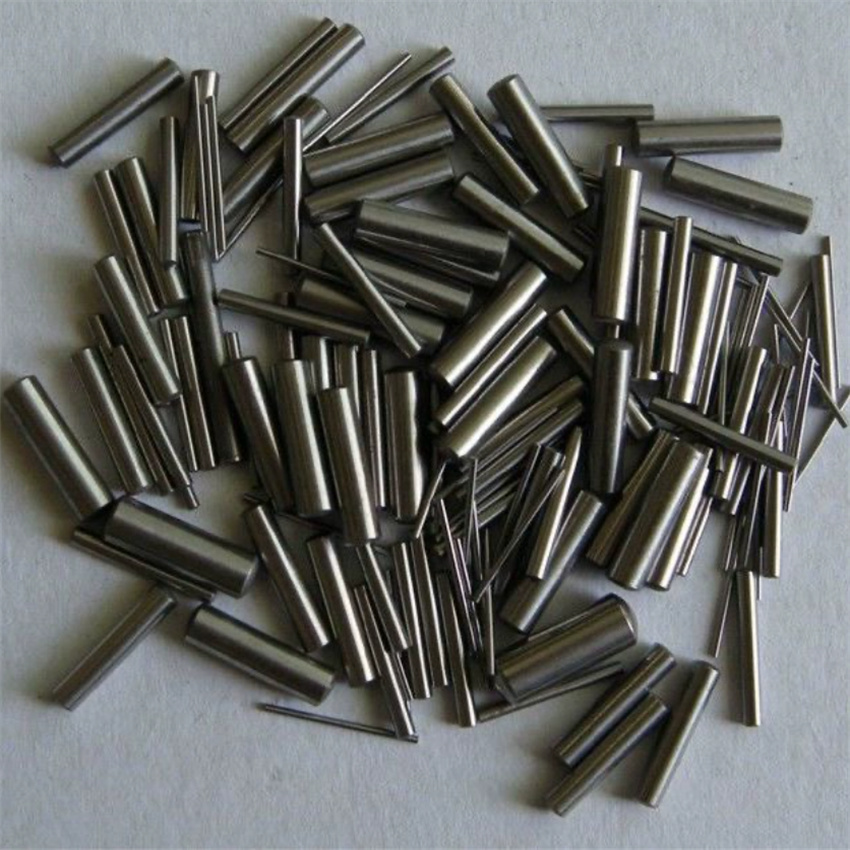

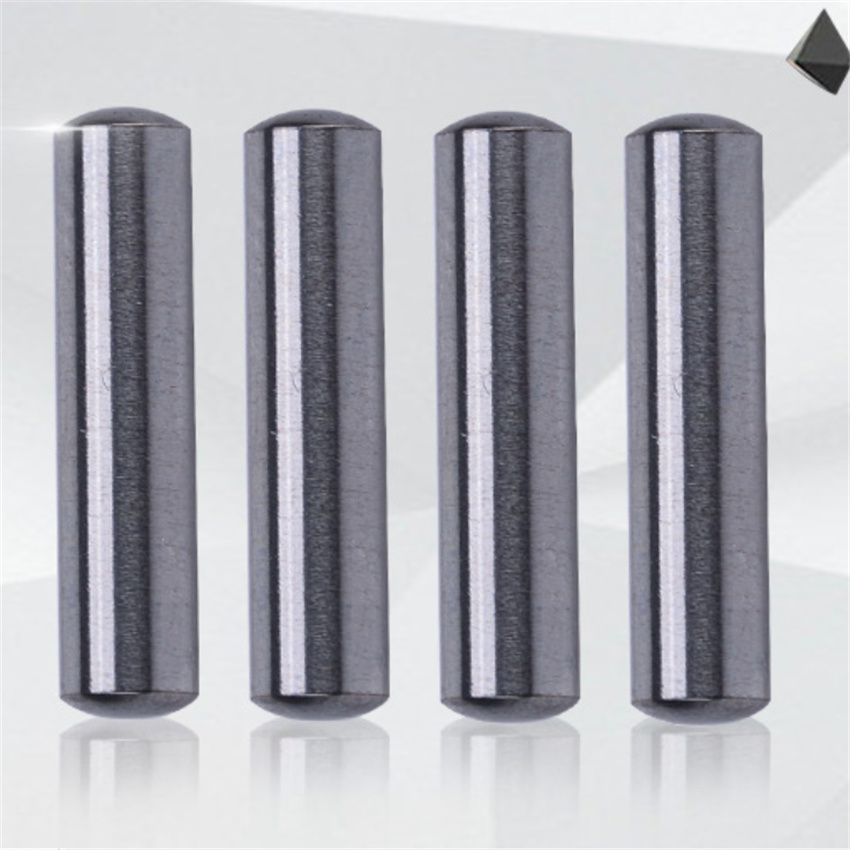

Guide pin, namely locationing pin, positioning pin, tooling pin, routing pin.... , is made of special steel with high hardness,2 side rounded or flat, it's used to positioning during routing and milling process
Technical data of positioning pin:
| Diameter | 0.8-6.0mm |
| Lenght: | 10mm,12.8mm,15.8mm,17.8mm,19.8mm |
| Tolerance | diameter :±0.003mm, length:±0.2mm |
| Hardness | 58-62HRC |
| Material | Special steel |
| Standard | GB/T18254-2002 Standard |

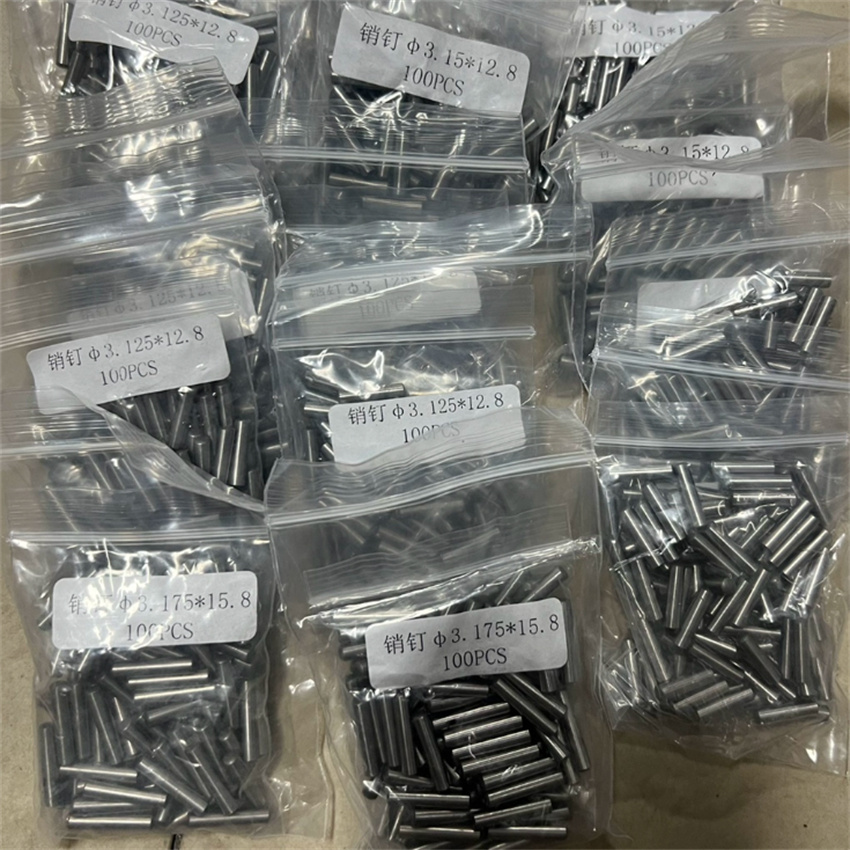

| Packing | 100pcs/PE bag |
| Suitable | PCB drilling , milling, routing |
Feature of PCB routing pin:
High precision, clean and brightness, high hardness, not easy to rust
For most size,we have stock, if not have stock our lead time also very short for about 3-5 days.
Other pins we can provide for PCB:
Exposure pin for exposure process, silk screen pin for silk screen process, cooper pin, carlson pin for silk screen process, guide pin,presser pin after punching,.....
Welltronics Technology is a PCB material and consumables supplier in China, our pin series product include routing pin, silk scree pin, exposure pin, carlson pin ,presser pin ect.... Welcome to choose us if you have such kind of requirement.
