2W040-10 brass solenoid valve
2 year ago
2W040-10 2/2 Way Direct Acting Water Solenoid Valve
Product introduction
2W040-10 is made of high quality brass material, belongs to 2/2 direct acting type solenoid valve 220v, port size: 3/8", orifice size: 4mm. The product has stable and reliable performance, and has a variety of voltage to choose from, can meet the needs of different industries, also can effectively control the fluid medium, play an important role in the hydraulic control system.
Brass valve body
The body of 2W040-10 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

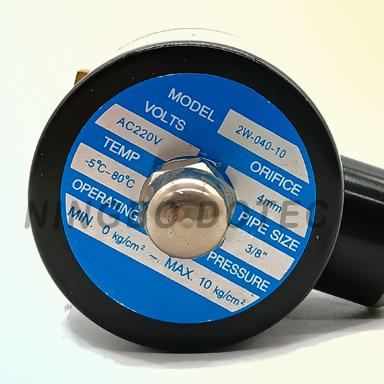

Stable Solenoid coil
Good heat dissipation, good insulation performance. Clearly and comprehensively display the specific parameters of the water valve.
Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Specification |
|||||||||||||
|
Model |
2W025-06 |
2W025-08 |
2W030-08 |
2W040-10 |
2WH012-06 |
2WH012-08 |
2W020-10 |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting, 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
1/8 '' |
1/4 '' |
1/4 '' |
3/8 '' |
1/8 '' |
1/4 '' |
3/8 '' |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air, Water, Oil, Gas: 0~1.0Mpa; Air, Water, Oil: 0~2.0Mpa |
||||||||||||
|
Orifice Size |
2.5 |
3 |
4 |
1.2 |
1.2 |
2 |
|||||||
|
CV Value |
0.23 |
0.23 |
0.33 |
0.60 |
0.05 |
0.05 |
0.15 |
||||||
|
Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃, EPDM: -5~120℃, VITON: -10~150℃, SI: -15~150℃ |
||||||||||||

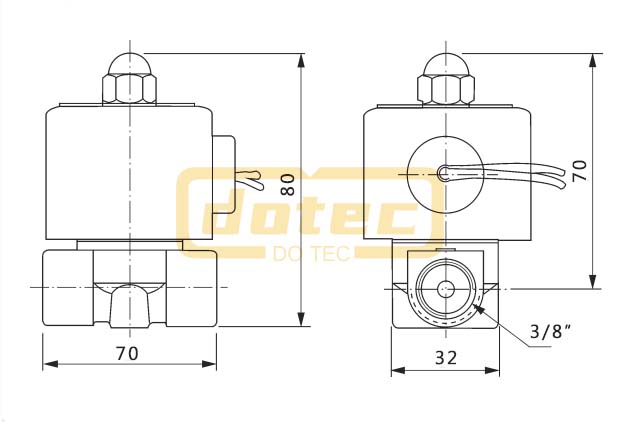

2W040-10 Dimension
