2W025-08 brass solenoid valve
2 year ago
2W025-08 2/2 Way Water Brass Solenoid Valve 24VDC
Product introduction
2W025-08 solenoid valve is constructed with brass body, orifice size: 2.5mm, port size: 1/4", 24V voltage, normally closed valve. Its compact size, convenient and flexible installation. At the same time, it has excellent sealing performance and corrosion resistance to ensure long-term stable operation. It is widely used in hydraulic and pneumatic systems, heating and air conditioning equipment and other areas requiring fluid control.
Brass valve body
The body of 2W025-08 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.
Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. The surface shell clearly and comprehensively display the specific parameters of the water valve.
Wide range of applications
It can be used for both industrial use and household use, such as air control, liquid control, irrigation control, water filtration and treatment, etc.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Specification |
|||||||||||||
|
Model |
2W025-06 |
2W025-08 |
2W030-08 |
2W040-10 |
2WH012-06 |
2WH012-08 |
2W020-10 |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting, 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
1/8'' |
1/4'' |
1/4'' |
3/8'' |
1/8'' |
1/4'' |
3/8'' |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air, Water, Oil, Gas: 0~1.0Mpa; Air, Water, Oil: 0~2.0Mpa |
||||||||||||
|
Orifice Size |
2.5 |
3 |
4 |
1.2 |
1.2 |
2 |
|||||||
|
CV Value |
0.23 |
0.23 |
0.33 |
0.60 |
0.05 |
0.05 |
0.15 |
||||||
|
Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃, EPDM: -5~120℃, VITON: -10~150℃, SI: -15~150℃ |
||||||||||||

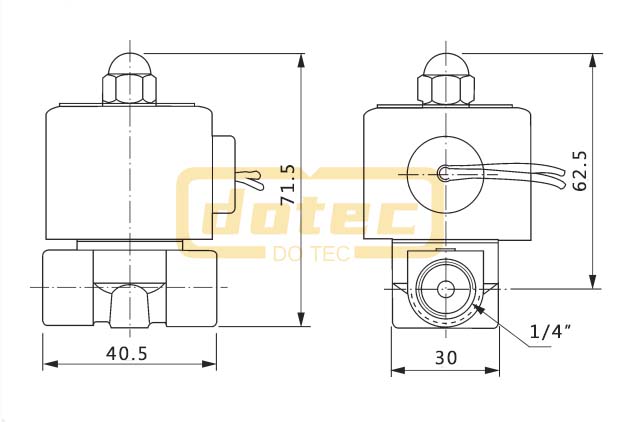

2W025-08 Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
