2W160-15 brass solenoid valve
2 year ago
2W160-15 1/2" Diaphragm Solenoid Valve 220VAC
Product introduction
The 2W160-15 brass water solenoid valve is renowned for its exceptional performance and extensive range of applications. It boasts high efficiency, stability, and reliability characteristics, operating as a normally closed type that finds widespread use in various gases and liquids. Moreover, this product exhibits outstanding corrosion resistance and high temperature tolerance, ensuring unwavering stability and reliability even under near-zero working pressure differences. We can customize the voltage, such as solenoid coil 24VDC, solenoid coil 110VAC, etc.

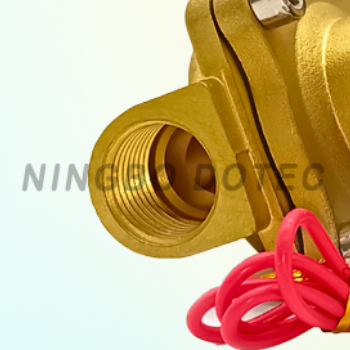

Brass valve body
The body of 2W160-15 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

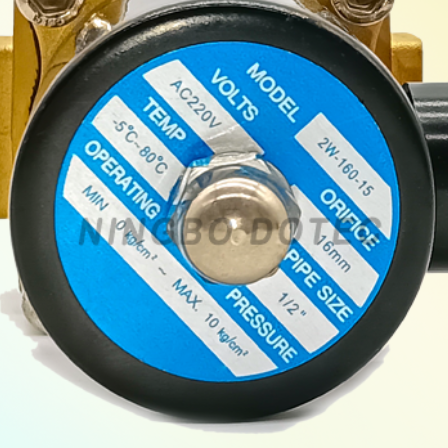

Stable Solenoid coil
Good heat dissipation, good insulation performance. Clearly and comprehensively display the specific parameters of the water valve.

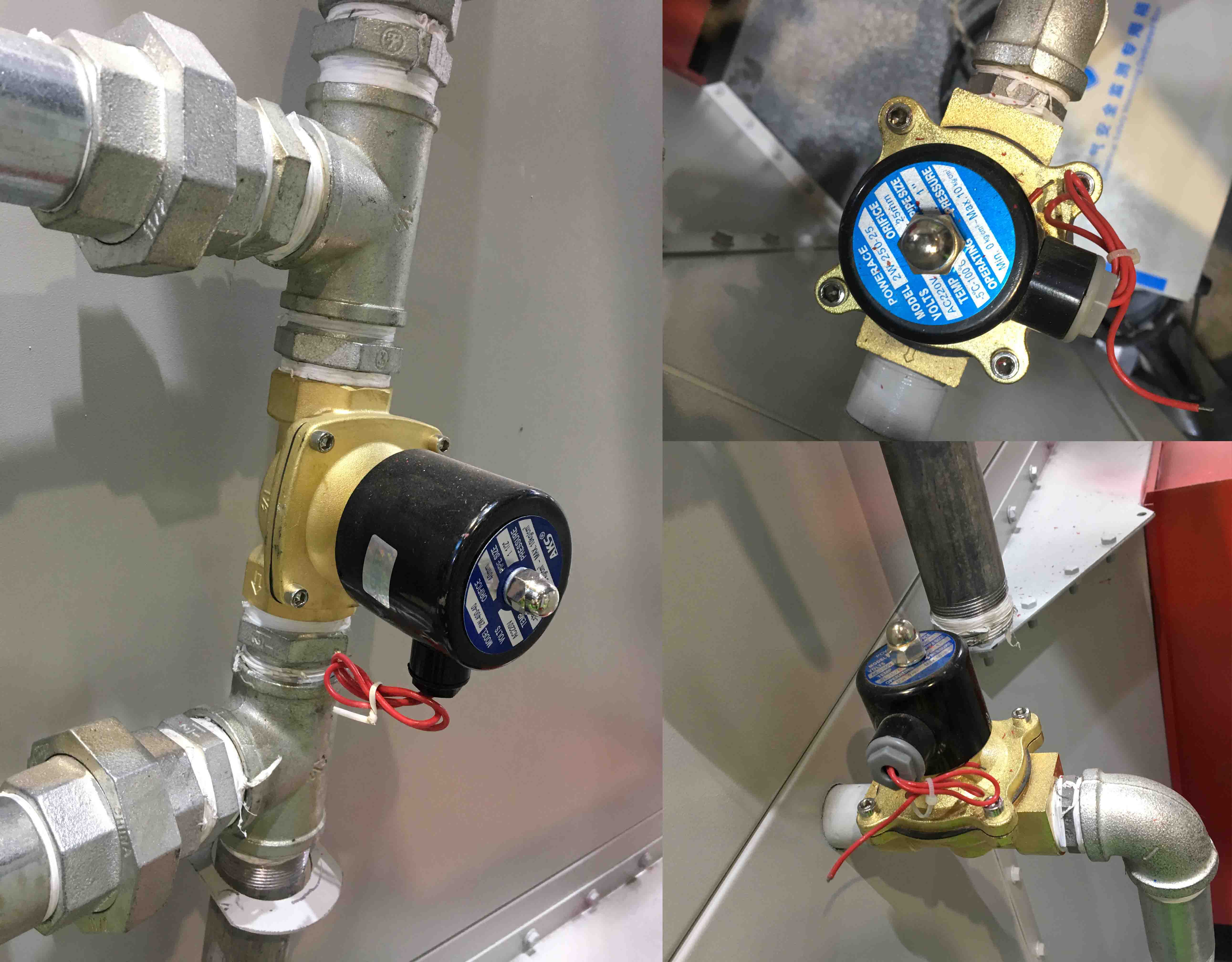

Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Specification |
|||||||||||||
|
Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting, 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
3/8 '' |
1/2 '' |
3/4 '' |
1 '' |
1 1/4 '' |
1 1/2 '' |
2 '' |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air: 0~7Mpa, Water: 0~5Mpa, Oil: 0~5Mpa, Gas: 0~7Mpa |
||||||||||||
|
Orifice Size |
16 |
20 |
25 |
35 |
40 |
50 |
|||||||
|
CV Value |
4.8 |
4.8 |
4.8 |
12 |
24 |
29 |
48 |
||||||
|
Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃, EPDM: -5~120℃, VITON: -10~150℃, SI: -15~150℃ |
||||||||||||

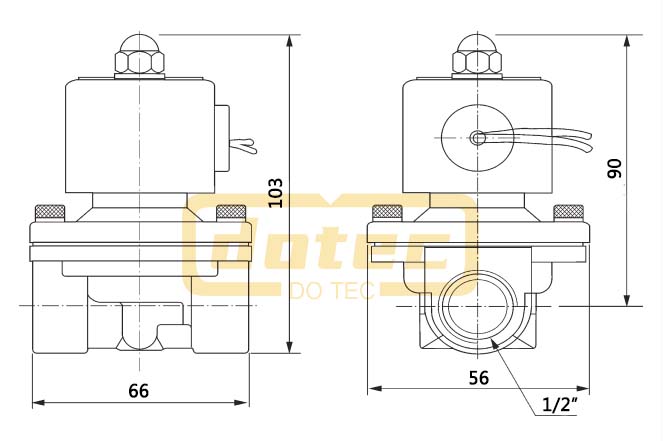

2W160-15 Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
