1 1/4" 2W350-35 Brass Diaphragm Solenoid Valve
Product introduction
The 2 way brass water solenoid valve has two ports, one inlet and one outlet, used to allow or stop the flowof media. Detecting the flow rate through the valve is crucial to ensure normal operation, and there are also arrows on the valve body to indicate the flow direction of the medium. As a typical water control solenoid valve, 2W350-35 can implement remote automatic control, making it an ideal choice for water treatment equipment.

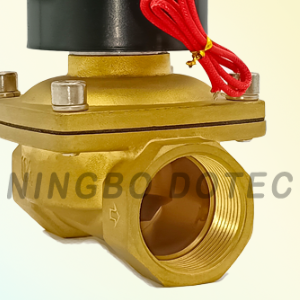

Brass valve body
The body of 2W350-35 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

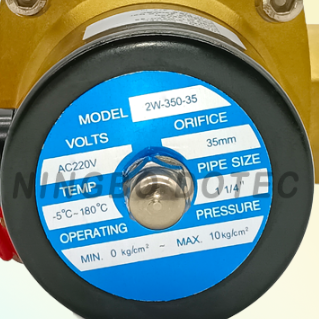

Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. The surface shell clearly and comprehensively display the specifice parameters of the water valve.
Wide application
It can be used forboth industrail use and household use, such as air control, liquid control, irrigation control, water filtration and treatment, etc.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Specification |
|||||||||||||
|
Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting, 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air: 0~7Mpa, Water: 0~5Mpa, Oil: 0~5Mpa, Gas: 0~7Mpa |
||||||||||||
|
Orifice Size |
16 |
20 |
25 |
35 |
40 |
50 |
|||||||
|
CV Value |
4.8 |
4.8 |
4.8 |
12 |
24 |
29 |
48 |
||||||
|
Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃, EPDM: -5~120℃, VITON: -10~150℃, SI: -15~150℃ |
||||||||||||

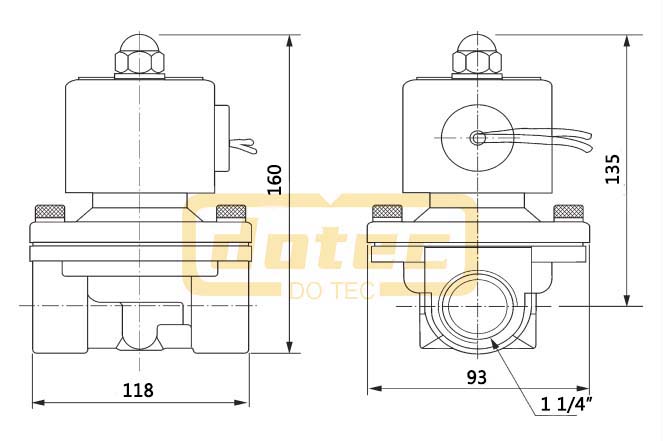

2W350-35 Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Committed to providing high quality products and services
◆ Focus on customer needs
◆ Create the perfect fit
