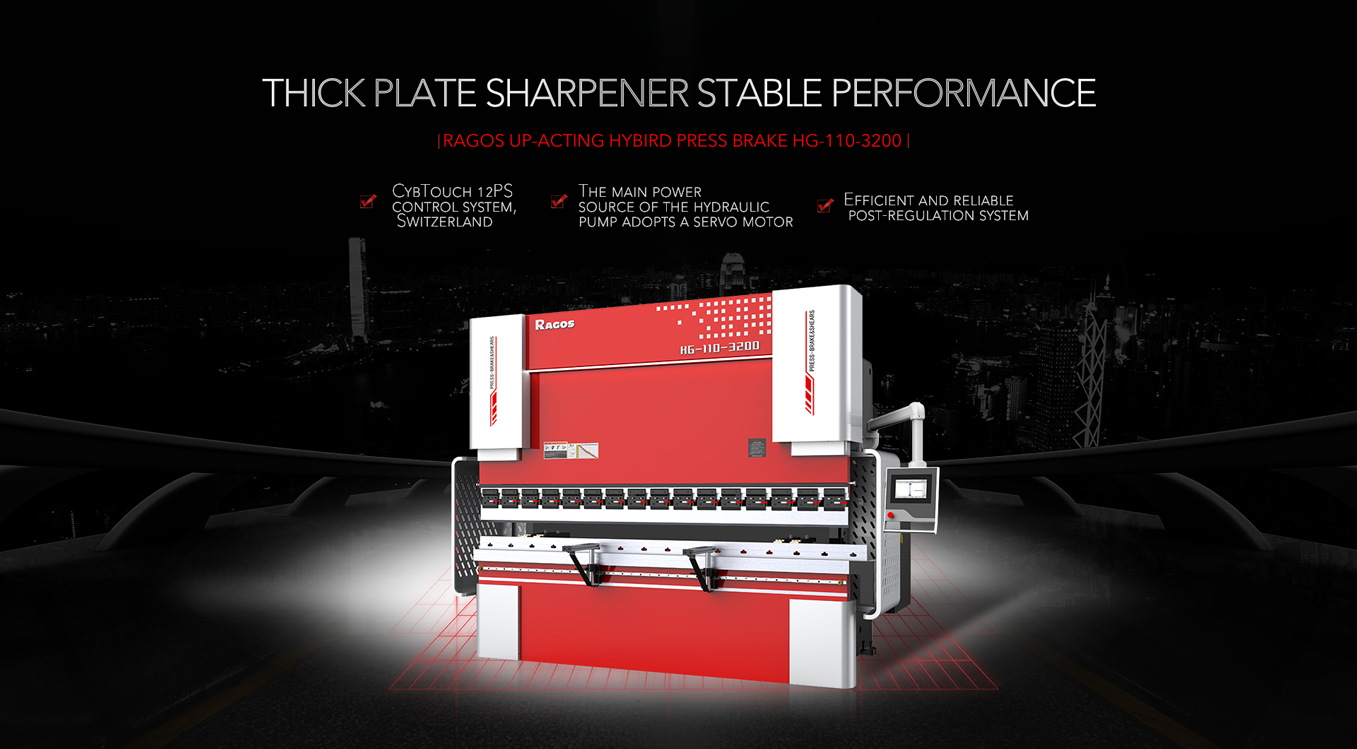

Hybrid CNC press brake HG110-3200

The 110-ton, 3200mm electric-hydraulic servo Press Brake is replete with benefits for complex metalwork tasks:

Advanced accuracy: The cutting-edge electric-hydraulic servo technology promises unparalleled precision and consistency, guaranteeing superior, consistent results.

Energy-saving design: The innovative servo system is engineered to minimize energy consumption and reduce operational costs, providing a green solution for metalworkers.

Formidable bending power: Boasting a robust 110-ton capacity and a bending capacity of up to 3200mm, this CNC Press Brake Machine effortlessly handles challenging metalwork projects. It's extensively used in various industries, including mechanical engineering, aerospace, automotive, and electrical sectors.

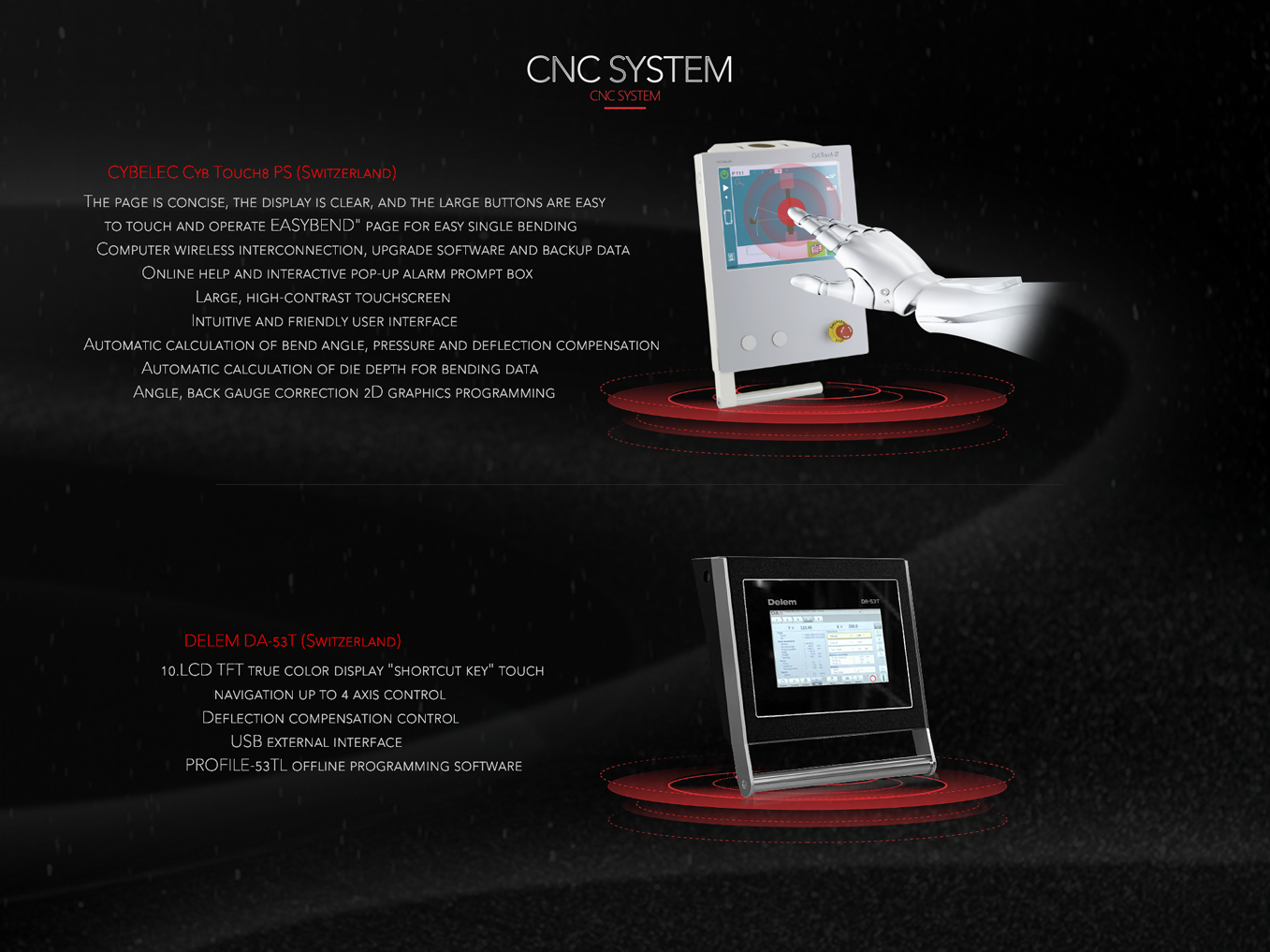

User-friendly CNC operation: The machine is equipped with a state-of-the-art CNC control system featuring an accessible interface, streamlining the programming and customization process for a variety of bending tasks.

Durable and reliable design: Our Hydraulic Press Brake is made from premium components and built to last, ensuring consistent performance with minimal maintenance.

In summary, the 110-ton, 3200mm electric-hydraulic servo Press Brake is an exemplary option for precise metal bending and shaping, offering advanced accuracy, energy efficiency, significant bending capacity, user-friendly control, and robust reliability. It is the great bending machine for sheet metal fabrication.

Technical Parameters & Specification：

Parts name		Parameter	Unit
Nominal pressure		110	Ton
Workbench length		3200	mm
Distance between columns		2700	mm
Slider stroke		200/250	mm
Open height		500	mm
Throat depth		400	mm
Axis number of NC		Y1、Y2、X、R、V	axes
Main motor power		11	kW
Speed of slide	Fast down	200	mm/s
	Work	10	mm/s
	Return	140	mm/s
Machine Dimensions	Length	3800	mm
	Width	1800	mm
	Height	2700	mm
Machine weight		8000	kg
