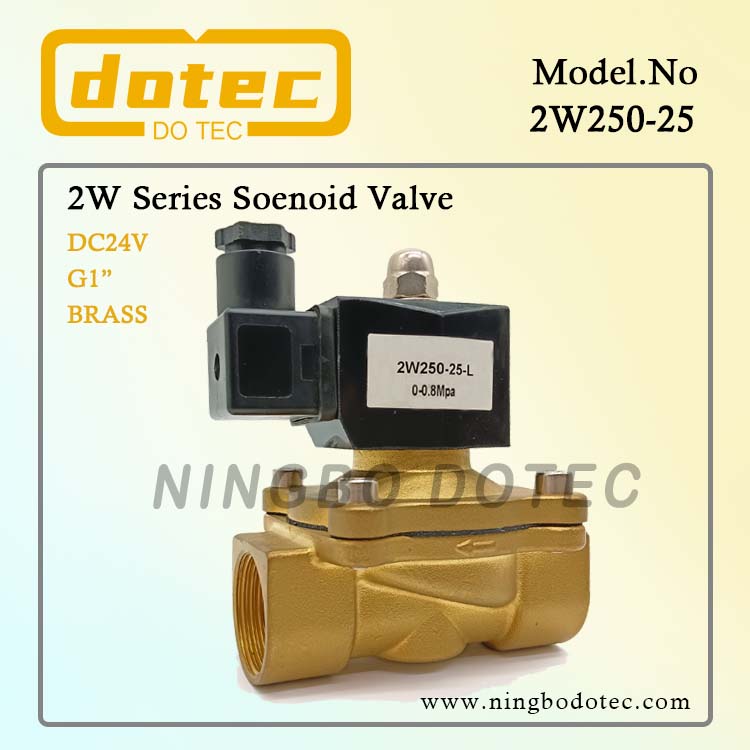

2W Series 2W250-25 Brass Water Solenoid Valve
Product introduction
2W series 2W250-25 solenoid valve is a brass water solenoid valve , belongs to the direct-acting diaphragm structure, for 2/2-way solenoid valve, and can work at zero pressure. There are 12V, 24V, 110V, 220V, voltage to choose from. Its port size: 1", orifice size: 25mm.The working medium is air, water, oil, gas. The valve body is made of brass with high reliability, corrosion resistance and long life. It can be used in industrail ,household usage and personal product development, such as farm irrigation , pipe control and factory machine operation.

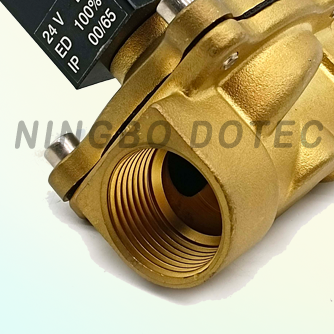

Brass valve body
The body of 2W250-25 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

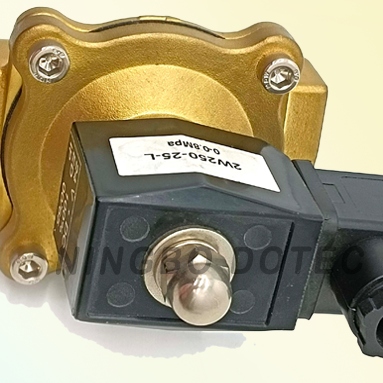

Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.

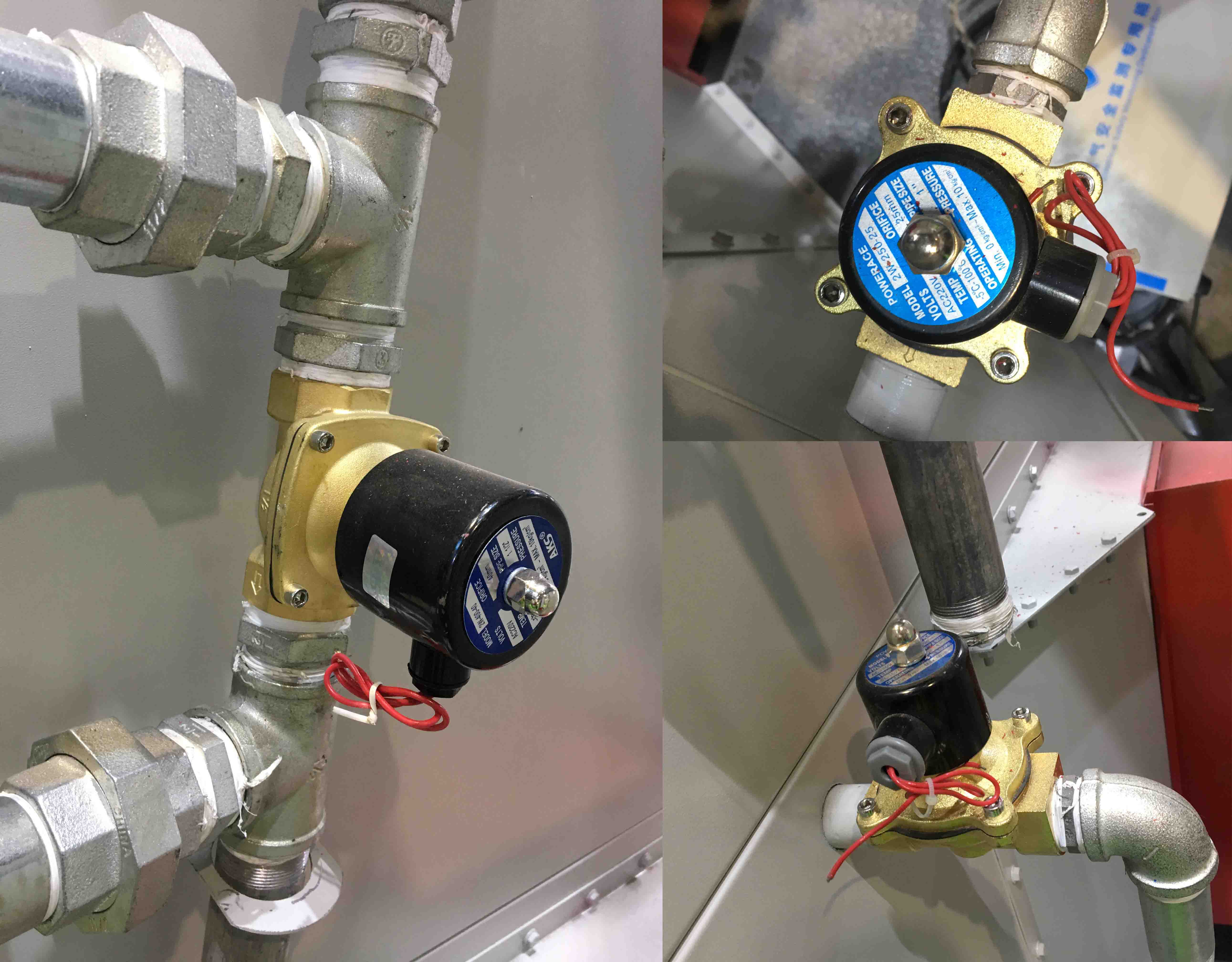

Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Specification |
|||||||||||||
|
Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting, 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air: 0~7Mpa, Water: 0~5Mpa, Oil: 0~5Mpa, Gas: 0~7Mpa |
||||||||||||
|
Orifice Size |
16 |
20 |
25 |
35 |
40 |
50 |
|||||||
|
CV Value |
4.8 |
4.8 |
4.8 |
12 |
24 |
29 |
48 |
||||||
|
Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃, EPDM: -5~120℃, VITON: -10~150℃, SI: -15~150℃ |
||||||||||||

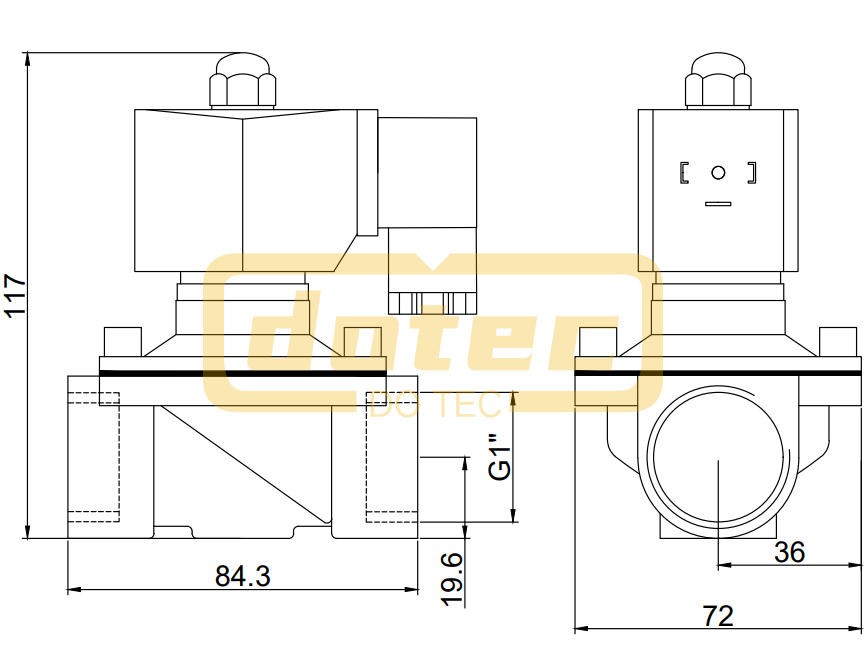

2W250-25 Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
