2S350-35 Stainless Steel Solenoid Valve
2 year ago
2S350-35 1 1/4'' 220VAC NC Stainless Steel Solenoid Valve
Product introduction
The 2S350-35 is a 1 1/4 inch hydraulic control water solenoid valve, and its most valve part are made of stainless steel or cast stainless steel for good corrosion proof, reasonable material selection compact structure and simple, easy of installation, combined with the advantages of direct acting type. It can work reliably even zero differential pressure. Its valve diaphragm sealing material including NBR, EPDM, VITON and so on. And we also can customize the solenoid coil voltage.

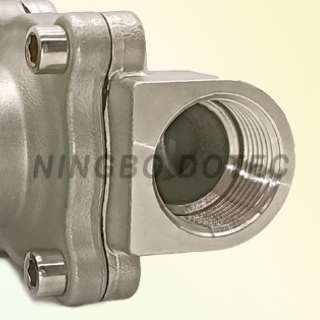

Stainless Steel valve body
The body of 2S350-35 is made of stainless steel and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

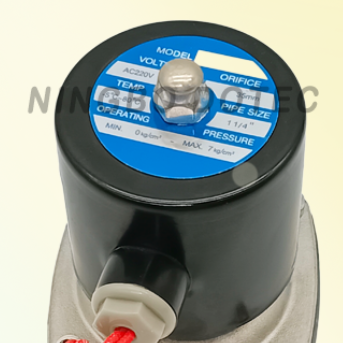

Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.
Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
2S160-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
|
Port Size (Inch) |
3/8'' |
1/2'' |
3/4'' |
1'' |
1 1/4'' |
1 1/2'' |
2'' |
|
Orifice Size (mm) |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
4.8 |
12 |
24 |
29 |
48 |
||
|
Material |
Stainless Steel |
||||||
|
Seal |
NBR, EPDM, VITION |
||||||
|
Voltage |
12VDC, 24VD, 24VAC, 110VAC, 220VAC |
||||||
|
Fluid Viscosity |
20 CST below |
||||||
|
Working Media |
Water, Air, Oil, Gas, etc |
||||||
|
Pressure |
0 to 10 bar |
||||||
|
Operation |
Directing Acting |
||||||
|
Function |
Normally Closed |
||||||
|
Temperature Range |
NBR: -5 to 80℃; EPDM: -5 to 120℃; VITON: -10 to 150 |
||||||

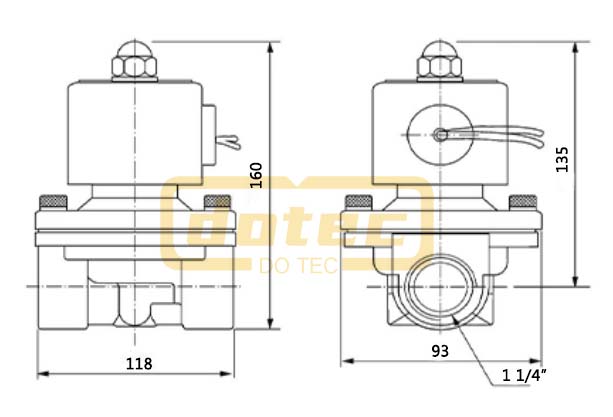

2S350-35 Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
