2S500-50 Stainless Steel Solenoid Valve
2 year ago
SUW-50 2S500-50 G2'' 2 Way Normally Closed Diaphragm Solenoid Valve For Water 24VDC
Product introduction
2S500-50 water solenoid valve is constructed with stainlss steel body, orifice size: 50mm, port size: 2", solenoid coil 220V AC. It is widely used to control the flow of fluids, and uses an electric current to open or close the machine. Its working medium including water, air, gas, oils, gasoline, hydrocarbons, diesel, kerosene or very low viscosity fluids( < 20 cst). It has excellent corrosion resistance to ensure long service life.

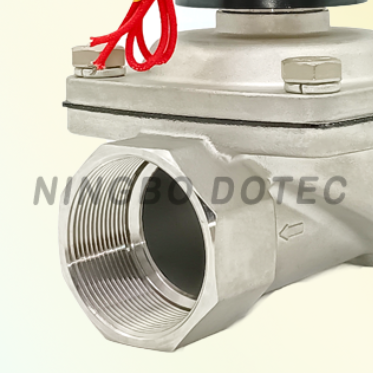

Stainless Steel valve body
The body of 2S500-50 is made of stainless steel and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

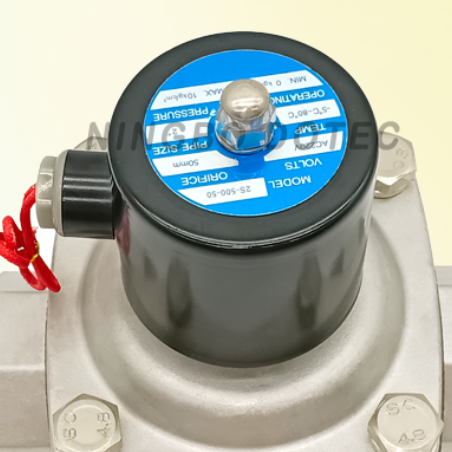

Stable Solenoid valve coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation. Clearly and comprehensively display the specific parameters of the water valve.

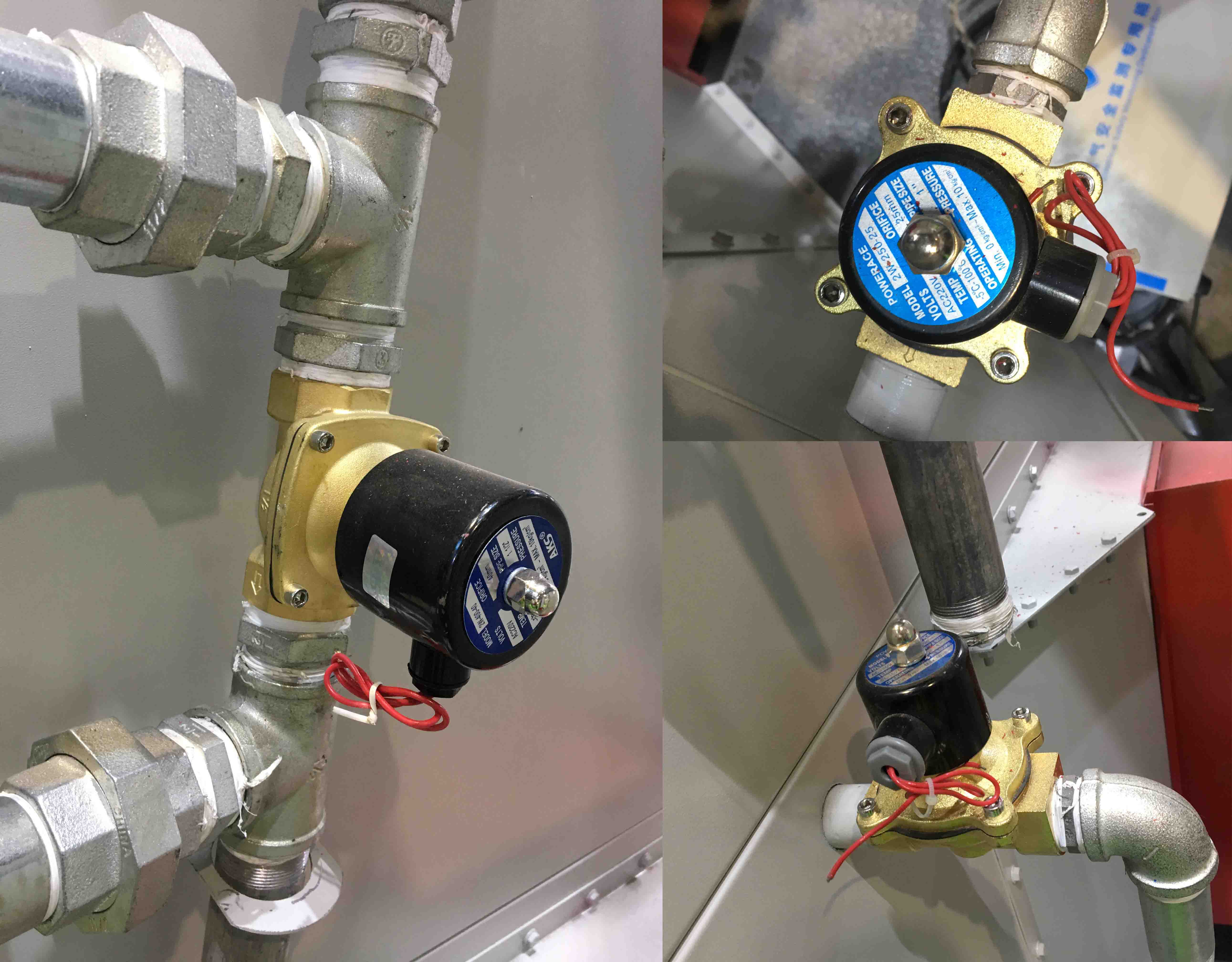

Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
2S160-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
|
Port Size (Inch) |
3/8'' |
1/2'' |
3/4'' |
1'' |
1 1/4'' |
1 1/2'' |
2'' |
|
Orifice Size (mm) |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
4.8 |
12 |
24 |
29 |
48 |
||
|
Material |
Stainless Steel |
||||||
|
Seal |
NBR, EPDM, VITION |
||||||
|
Voltage |
12VDC, 24VD, 24VAC, 110VAC, 220VAC |
||||||
|
Fluid Viscosity |
20 CST below |
||||||
|
Working Media |
Water, Air, Oil, Gas, etc |
||||||
|
Pressure |
0 to 10 bar |
||||||
|
Operation |
Directing Acting |
||||||
|
Function |
Normally Closed |
||||||
|
Temperature Range |
NBR: -5 to 80℃; EPDM: -5 to 120℃; VITON: -10 to 150 |
||||||

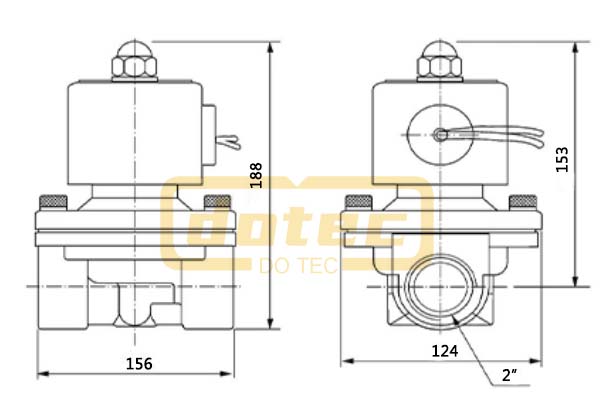

2S500-50 Dimension
