2W400-40S brass solenoid valve
2 year ago
2W400-40S G 1 1/2" NC Brass Water Solenoid Valve 24VDC
Product introduction
The 2W400-40S is a 1 1/2" inch hydraulic diaphragm solenoid valve, most valve part are made of brass for good corrosion proof, combined with the advantages of direct acting type. The valve is suitable for applications involving media containing hard suspended solids and particularly well-suited for corrosive, viscous and slurry media. It is high flow valve for liquid and air service, sealing material including NBR, EPDM, VITON and so on.
Brass valve body
The body of 2W400-40S is made of solid brass and has thick wall for longer service life. Continuous operation is not easy to burn, more safe and reliable.

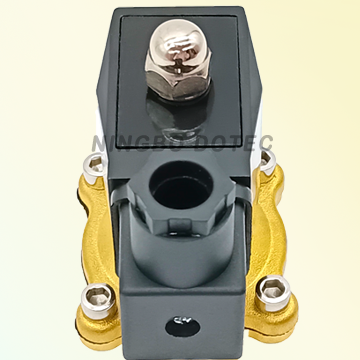

Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.
Wide application

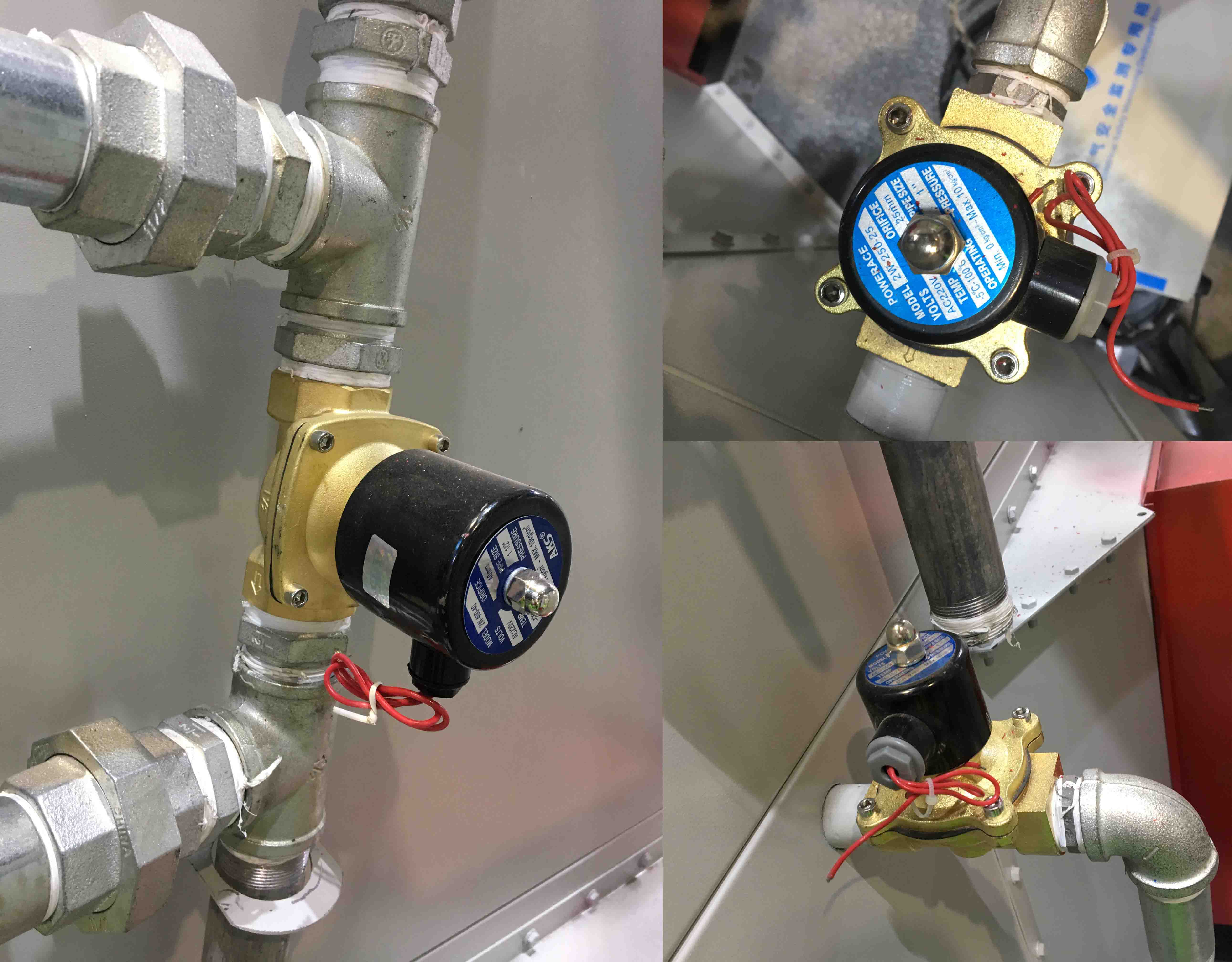

Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Specification |
|||||||||||||
|
Model |
2W160-10S |
2W160-15S |
2W200-20S |
2W250-25S |
2W350-35S |
2W400-40S |
2W500-50S |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air: 0~7Mpa; Water: 0~5Mpa; Oil: 0~5Mpa; Gas: 0~7Mpa |
||||||||||||
|
Orifice Size |
16 |
20 |
25 |
35 |
40 |
50 |
|||||||
|
CV Value |
4.8 |
4.8 |
4.8 |
12 |
24 |
29 |
48 |
||||||
|
Voltage |
DC12V; DC24V; AC24V; AC110V; AC220V; AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material for sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃; EPDM: -5~120℃; VITON: -10~150℃; SI: -15~150℃ |
||||||||||||

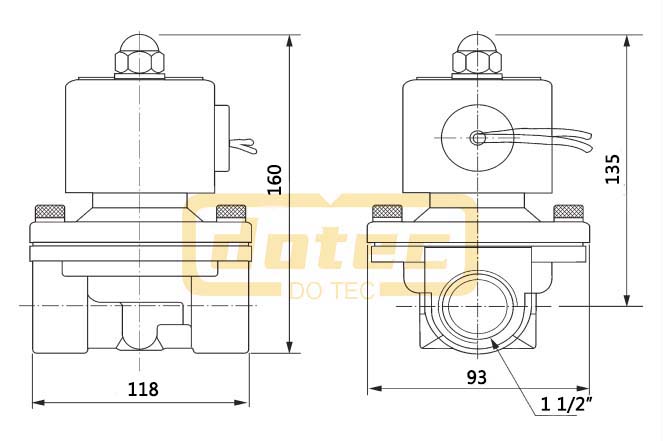

2W400-40S Dimension
About Us

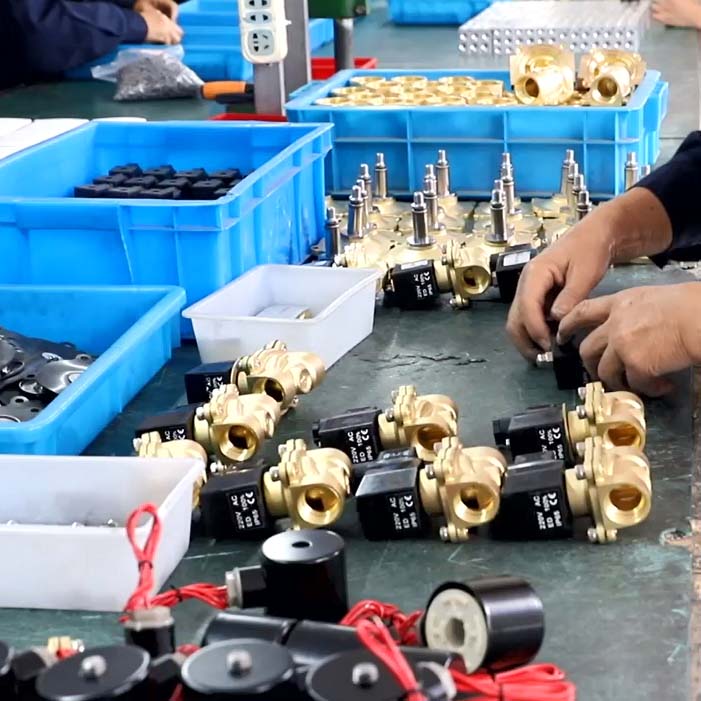

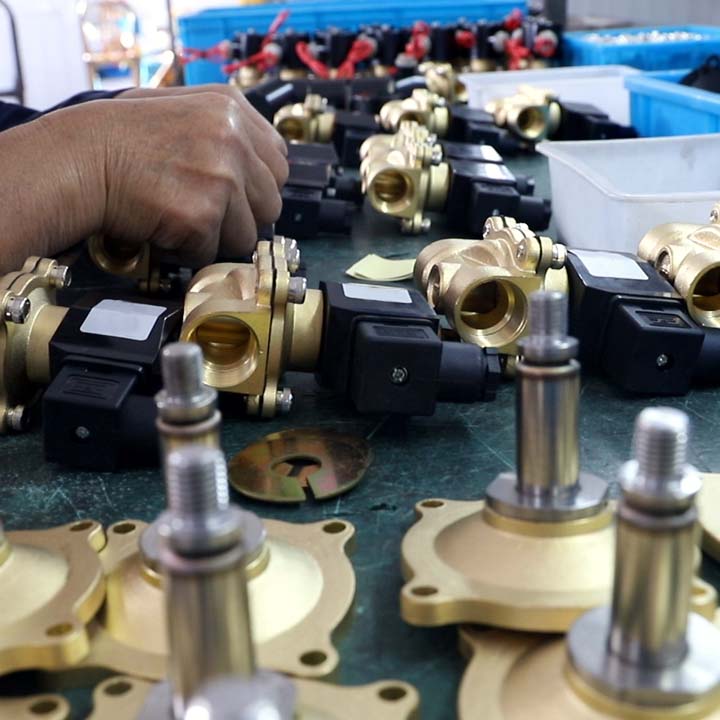

Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
