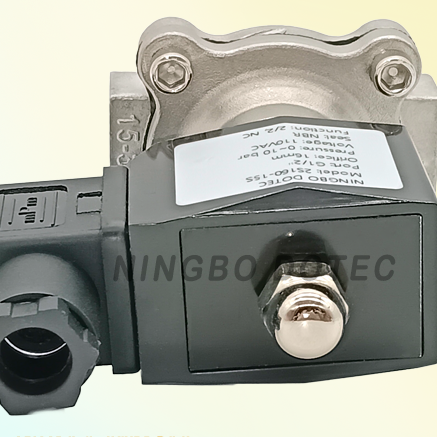

2S160-15S Stainless Steel Solenoid Valve
2 year ago
1/2" 2S160-15S NC Direct Diaphragm Solenoid Valve 220VAC
Product introduction
The 2S160-15S is direct, connected diaphragm, 1/2 inch stainless steel water solenoid valve 110VAC, suitable for air, liquid, oil, water and vacuum processing. The 2 way solenoid valve has one upstream and one downstream port and is used to block or allow fluid flow. It is able to be operated directly under low pressure and even under zero pressure. Stainless steel material are chosen to optimize functional reliability, fluid compatibility, service life and cost.
Stainless Steel valve body
The body of 2S160-15S is made of stainless steel and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.
Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.

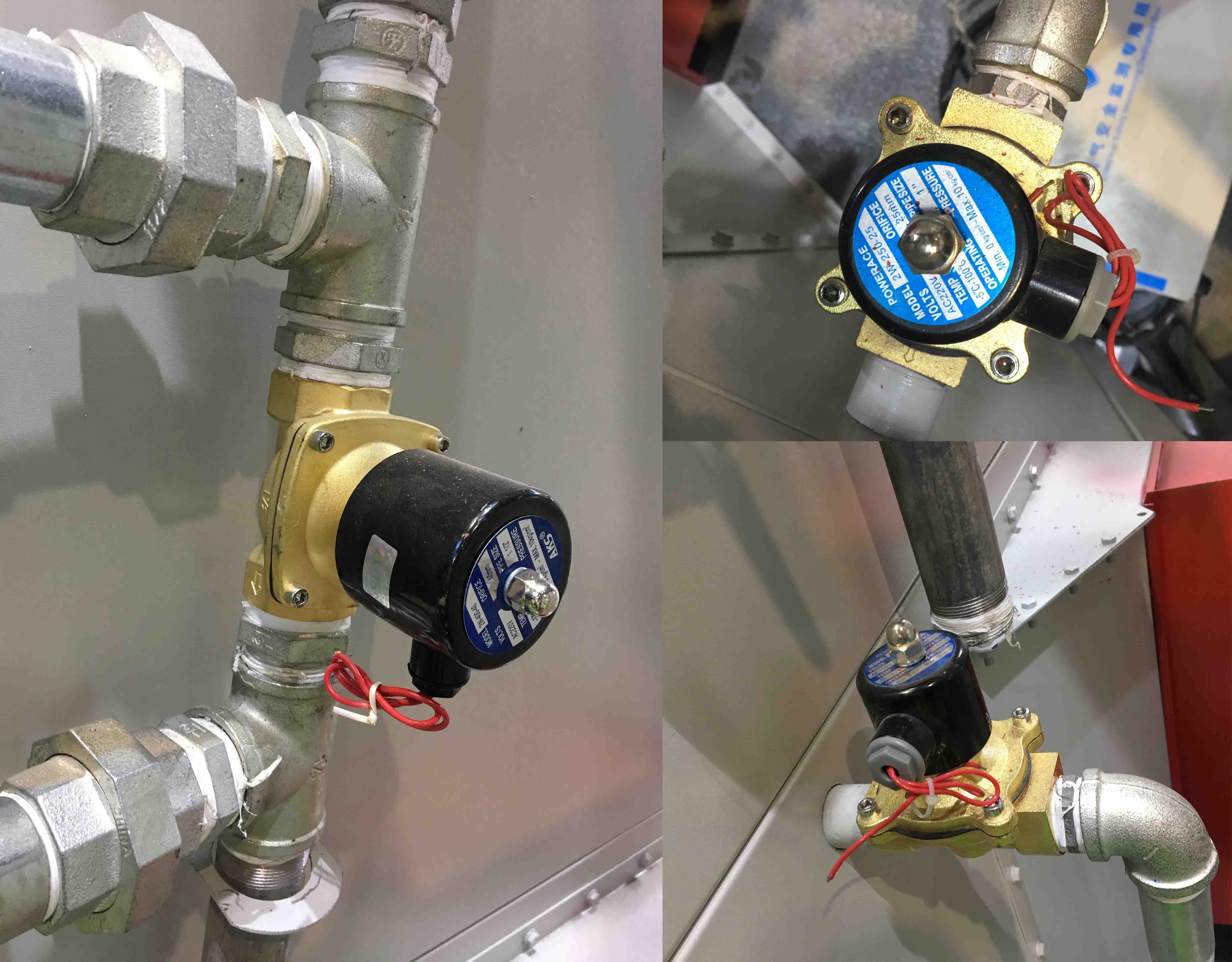

Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
2S160-10S |
2S160-15S |
2S200-20S |
2S250-25S |
2S350-35S |
2S400-40S |
2S500-50S |
|
Port Size( Inch) |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
|
Orifice Size( mm) |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
4.8 |
12 |
24 |
29 |
48 |
||
|
Material |
Stainless Steel |
||||||
|
Seal |
NBR, EPDM, VITION |
||||||
|
Voltage |
12VDC, 24VD, 24VAC, 110VAC, 220VAC |
||||||
|
Fluid Viscosity |
20 CST below |
||||||
|
Working Media |
Water, Air, Oil, Gas, etc |
||||||
|
Pressure |
0 to 10 bar |
||||||
|
Operation |
Directing Acting |
||||||
|
Function |
Normally Closed |
||||||
|
Temperature Range |
NBR: -5 to 80℃; EPDM: -5 to 120℃; VITON: -10 to 150 |
||||||

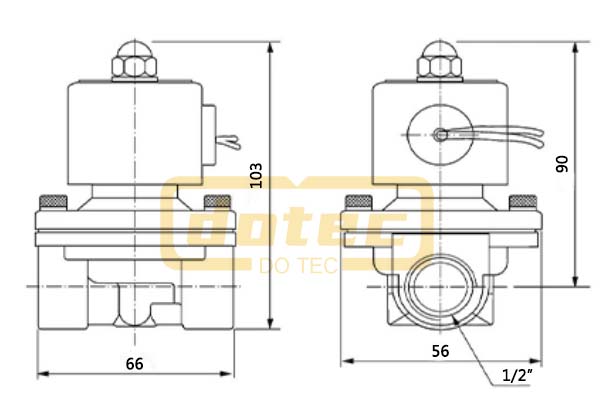

2S160-15S Dimension
