DMF-Y-50S dust collector solenoid valve
2 year ago

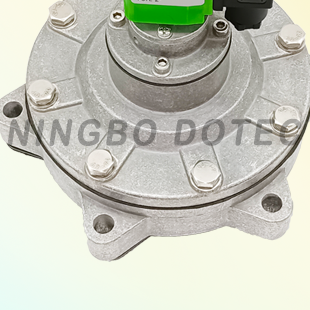

BFEC DMF-Y-50S 2'' Embedded Dust Collector Solenoid Pulse Jet Valve
Product introduction
The DMF-Y-50S is a submerged SBFEC Type pulse valve that adopts double diaphragms design to ensure a high-quality valve diaphragm for an extended lifespan and perfect working performance. It has 2" port size, 50mm orifice size and pressure range from 0.1 to 0.8 MPa. They have better flowability and run with lower pressure loss. Therefore they are suitable for places with lower air pressure and a variety of dust collector applications.
Aluminum valve body
The body of DMF-Y-50S is made of aluminum (diecast), which has low resistance and good circulation. It expands the use range of pressure and provides the best flow performance.
Stable Solenoid coil
The stable coil has good heat dissipation and insulation, which can ensure that it is not easy to burn out during continuous operation, making the overall system safer and more reliable.
Wide application
This vlave is mostly used in dust removal system, clean filters system, dust collector, bag filters, sintered matal fiber filters, ceramic filters, etc. And it can be used with different pipe size and materials for a wide range of applications.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Integral Pilot |
DMF-Y-25 |
DMF-Y-40S |
DMF-Y-50S |
DMF-Y-62S |
DMF-Y-76S |
DMF-YA-76S |
DMF-YB-76S |
DMF-Y-102S |
DMF-Y-102SA |
DMF-Y-102SE |
|
Remote Pilot |
MF-Y-25 |
MF-Y-40S |
MF-Y-50S |
MF-Y-62S |
MF-Y-76S |
MF-YA-76S |
MF-YB-76S |
MF-Y-102S |
MF-Y-102SA |
MF-Y-102SE |
|
Port Size |
1'' |
1-1/2'' |
2'' |
2-1/2'' |
3'' |
3'' |
3'' |
4'' |
4'' |
4'' |
|
Orifice Size (mm) |
25 |
40 |
50 |
62 |
76 |
76 |
76 |
102 |
102 |
102 |
|
Diaphragm Number |
1 |
2 |
||||||||
|
Pressure Range |
0.1 to 0.8 MPa |
|||||||||
|
Diaphragm Material |
NBR, VITON |
|||||||||
|
Body Material |
Aluminum ( diecast ) |
|||||||||
|
Voltage |
24VDC, 24VAC, 110VAC, 220VAC |
|||||||||

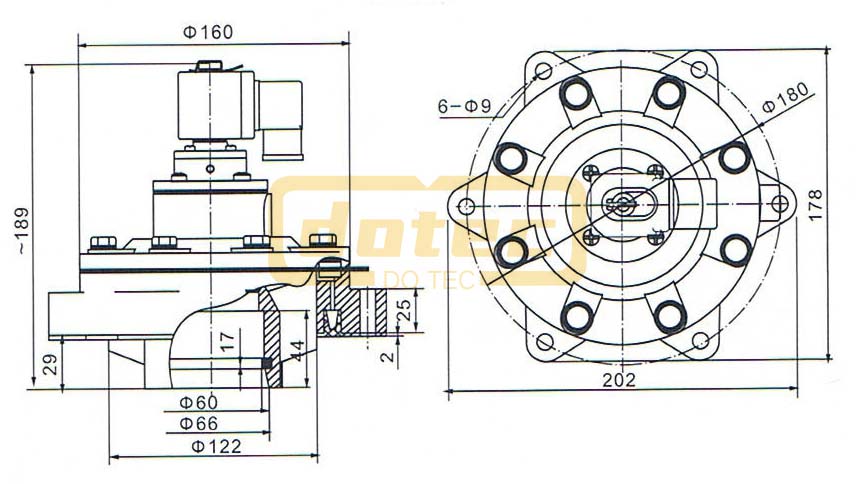

DMF-Y-50S Dimension
