DMF-T-40S dust collector solenoid valve
2 year ago
BFEC 1.5'' DMF-T-40S Straight Through Pulse Jet Valve For Dust Removal
Product introduction
The DMF-T-40S is a straight throught electromagnetic SBFEC Type pulse valve, with the 180 degree angle between the inlet and outlet; 1-1/2 inch port size; 40mm orifice size; 0.1 to 0.8 MPa working pressure range. It is suitable for the installation connection between the air inlet, the air outlet and the blow pipe, which can effectively remove accumulated dust and maintain the efficiency of the filtration system. We provide a variety of voltage options 24VDC, 24VAC, 110VAC, 220VAC.

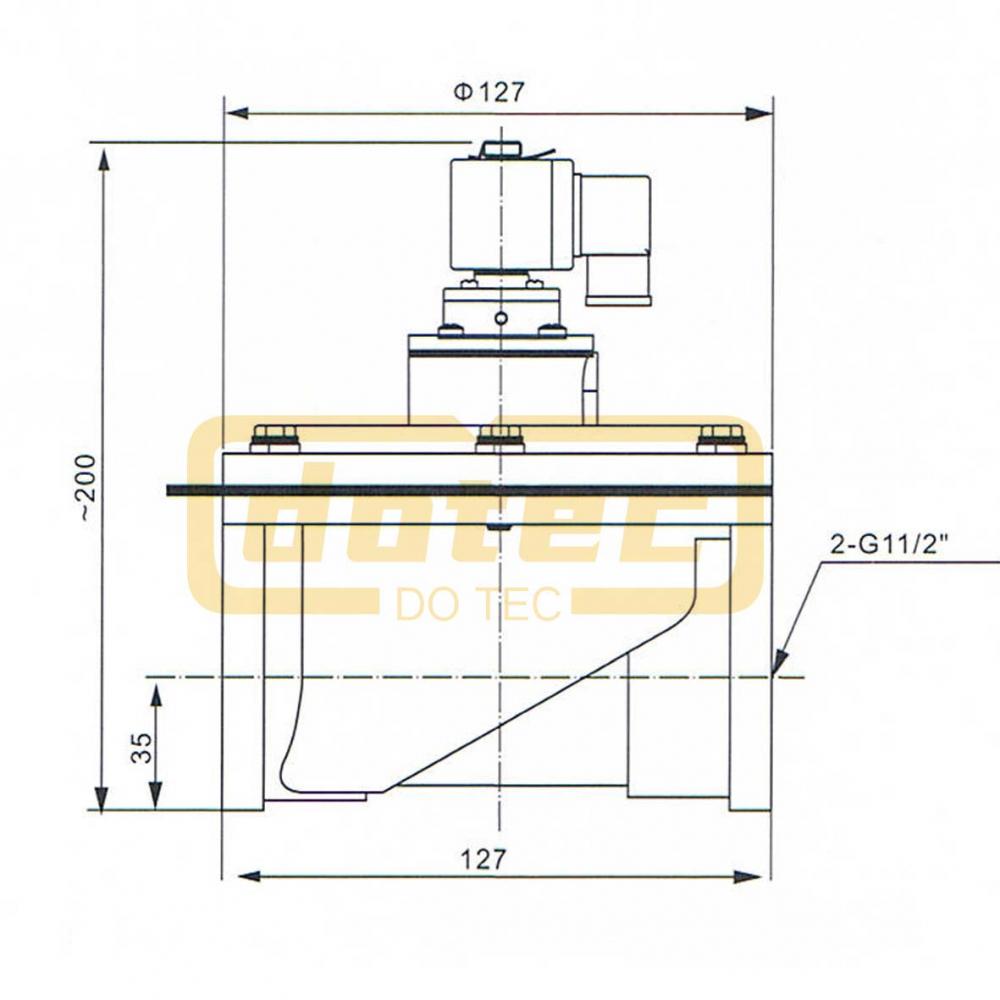

DMF-T-40S Dimension
|
Integral Pilot |
DMF-T-20 |
DMF-T-25S |
DMF-T-40S |
DMF-T-50S |
DMF-T-62S |
|
Remote Pilot |
MF-T-20 |
MF-T-25S |
MF-T-40S |
MF-T-50S |
MF-T-62S |
|
Port Size |
3/4 '' |
1 '' |
1-1/2 '' |
2 '' |
2-1/2 '' |
|
Orifice Size (mm) |
20 |
25 |
40 |
50 |
62 |
|
Diaphragm Number |
1 |
2 |
|||
|
Pressure Range |
0.1 to 0.8 MPa |
||||
|
Diaphragm Material |
NBR, VITON |
||||
|
Body Material |
Aluminum ( diecast ) |
||||
|
Voltage |
24VDC, 24VAC, 110VAC, 220VAC |
||||
Aluminum valve body
The body of DMF-T-40S is made of aluminum (diecast), and the valve inlet and outlet are at a 180 degree angle, which can effectively collect and clean dust.
Stable Solenoid coil
The stable coil has good heat dissipation and insulation, which can ensure that it is not easy to burn out during continuous operation, making the overall system safer and more reliable.
Wide application
This vlave is mostly used in dust removal system, clean filters system, dust collector, bag filters, sintered matal fiber filters, ceramic filters, etc. And it can be used with different pipe size and materials for a wide range of applications.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
