Product details

Product Name	Cold Drawn Boiler Seamless Steel Pipe A179 A192
Standard	A179 A192
Material	Seamless Steel

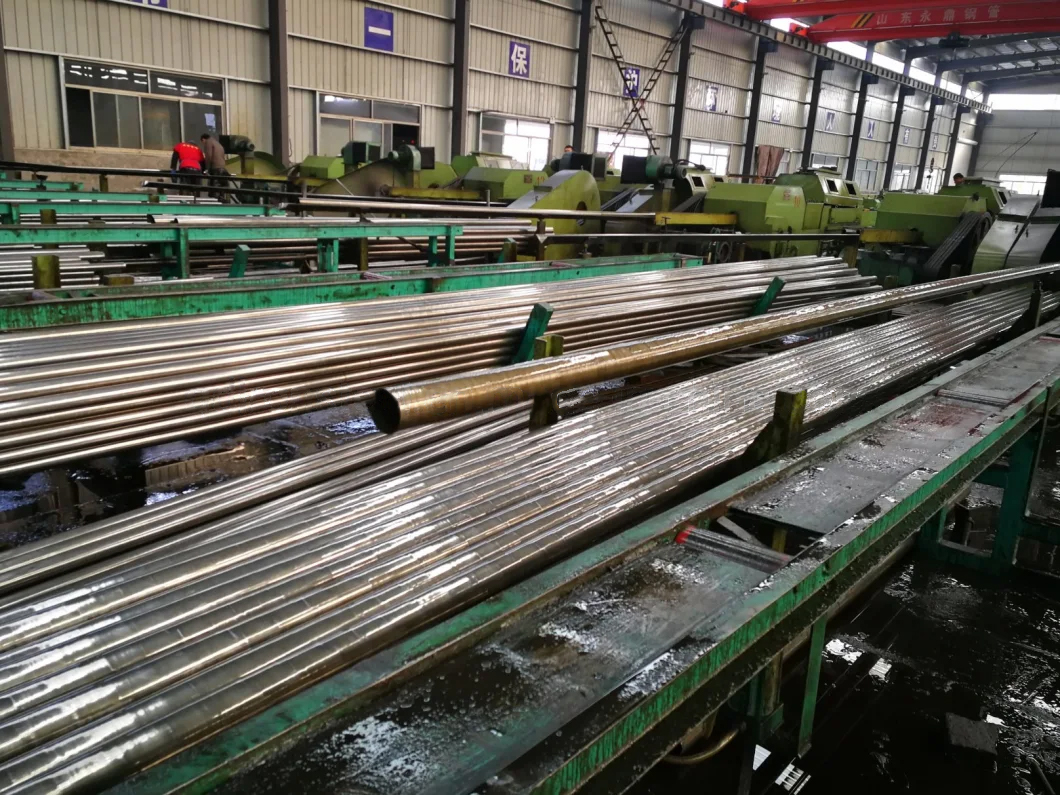

Production Process	Cold Drawn
Tolerance	OD :+/-1% ,WT:+/-10% ,Length:+/-5cm
Length	3-12m or as per customers' requirements
Surface	Black Painting or According to customer Requirement
Payment Terms	EXW, FOB, CIF, CFR etc.
Delivery Time	Within 14 days after Receiving 30% TT Advanced or LC at Sight Original
Application	Generally, boiler tubes are mainly used to make water wall tubes, boiling water tubes, superheated steam tubes, superheated steam tubes for locomotive boilers, large and small smoke tubes and arched brick tubes. High-pressure boiler tubes are mainly used to manufacture superheater tubes, reheater tubes, air ducts, main steam tubes, etc. of high-pressure and ultra-high-pressure boilers.

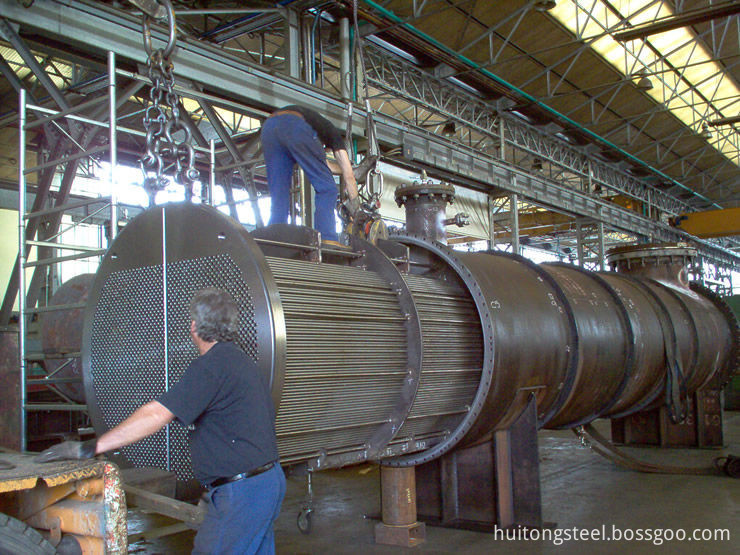

ASTM A179/ASME SA179 Standard covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.

ASTM A179/ASME SA179 Tubes shall be made by the seamless process and shall be cold drawn. ASTM A179/ASME SA179 Tubes shall be heat treated after the final cold drawn pass at a temperature of 1200°F [650°C] or higher.

ASTM A179/ASME SA179 Tubes should do Product Analysis test, Hardness test, Mechanical Test, Flattening Test, Flaring Test, Hydrostatic Test or NDT Test if agreed by Client.

ASTM A179/ASME SA179 Tube Chemical Compositions

Chemical Components (%)
C	Si	Mn	P	S	Mo	Cr	V
0.06-0.18	/	0.27-0.63	≤0.035	≤0.035	/	/	/

ASTM A179/ASME SA179 Tube Mechanical Properties

Mechanical Properties

Tensile

Strength (Mpa)

Yield

Strength (Mpa)

Elongation

(%)

Hardness

(HRB)

≥325

≥180

≥35

≤72

ASTM A179/ASME SA179 Tube Wall Thickness Tolerance

Seamless, Cold-Finished Tubes
Outside Diameter ,In. (mm)	Wall thickness Tolerance %
Outside Diameter ,In. (mm)	Over (+)	Under (-)
1 ½ (38.1) and under	20	0
Over 1½ (38.1)	22	0

ASTM A179/ASME SA179 Tube Outside Diameter Tolerance

Cold-Finished Seamless Tubes
Outside Diameter ,In. (mm)	Permissible Variations ,In. (mm)
Outside Diameter ,In. (mm)	Over (+)	Under (-)
Under 1 (25.4)	0.004 (0.1)	0.004 (0.1)
1 to 1 ½ (25.4 to 38.1), Incl	0.006 (0.15)	0.006 (0.15)
Over 11⁄2 to 2 [38.1 to 50.8], Excl	0.008 (0.2)	0.008 (0.2)
2 to 21⁄2 [50.8 to 63.5], Excl	0.010 (0.25)	0.010 (0.25)
21⁄2 to 3 [63.5 to 76.2], Excl	0.012 (0.3)	0.012 (0.3)

ASTM A179/ASME SA179 Tube Cut Length Tolerance

Cold-Finished Seamless Tubes
Outside Diameter ,In. (mm)	Cut Length ,in. (mm)
Outside Diameter ,In. (mm)	Over(+)	Under(-)
All Sizes	3⁄16 [5]	0 [0]
Under 2 [50.8]	1⁄8 [3]	0 [0]
2 [50.8] and over	3⁄16 [5]	0 [0]
Under 2 [50.8]	1⁄8 [3]	0 [0]
2 [50.8] and over	3⁄16 [5]	0 [0]

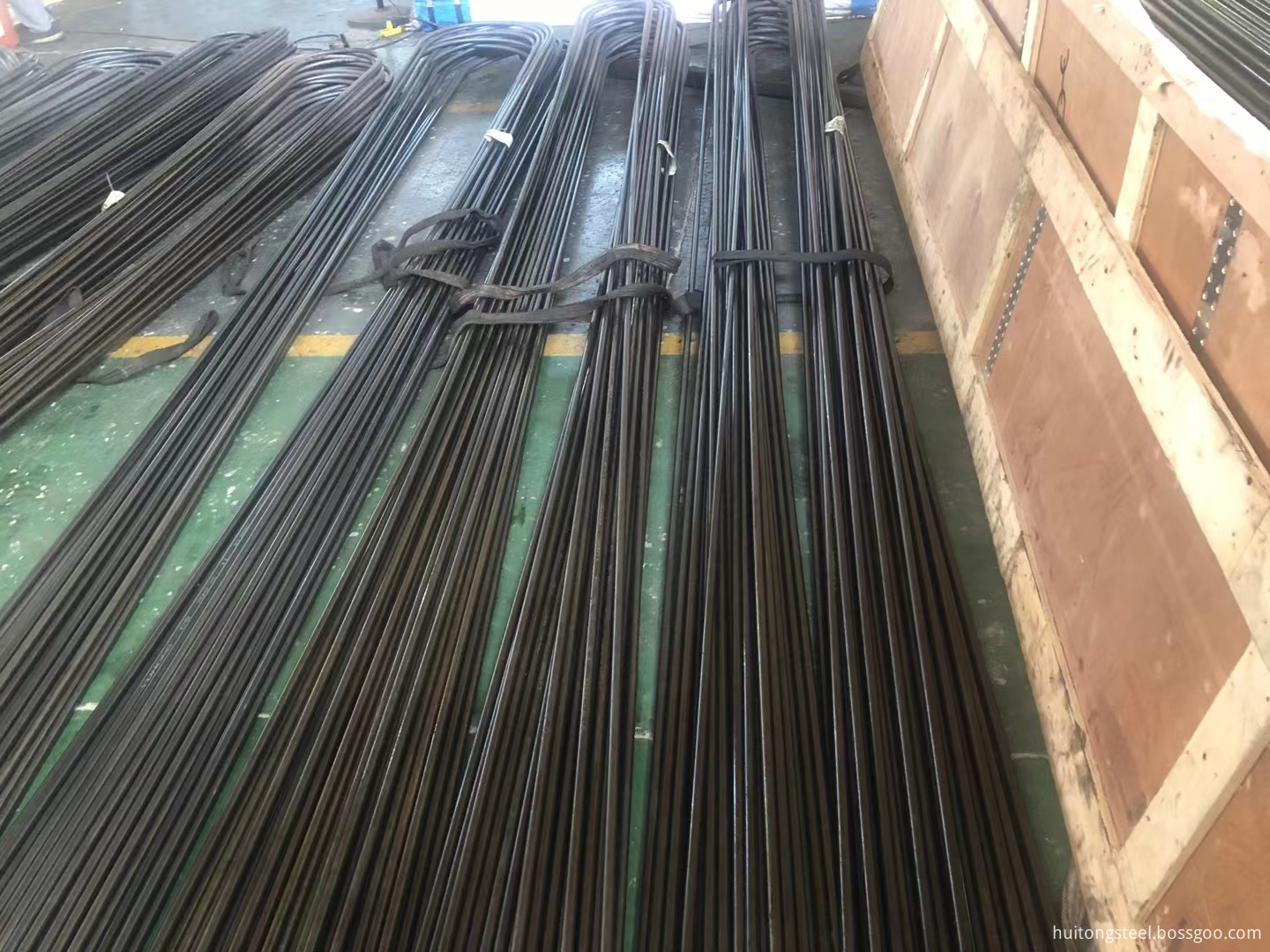

These permissible variations in length apply to tubes before bending. They apply to cut lengths up to and including 24 ft [7.3 m]. For lengths greater than 24 ft [7.3 m], the above over-tolerances shall be increased by 1⁄8 in. [3 mm] for each 10 ft [3 m] or fraction thereof over 24 ft or 1⁄2 in. [13 mm], whichever is the lesser.

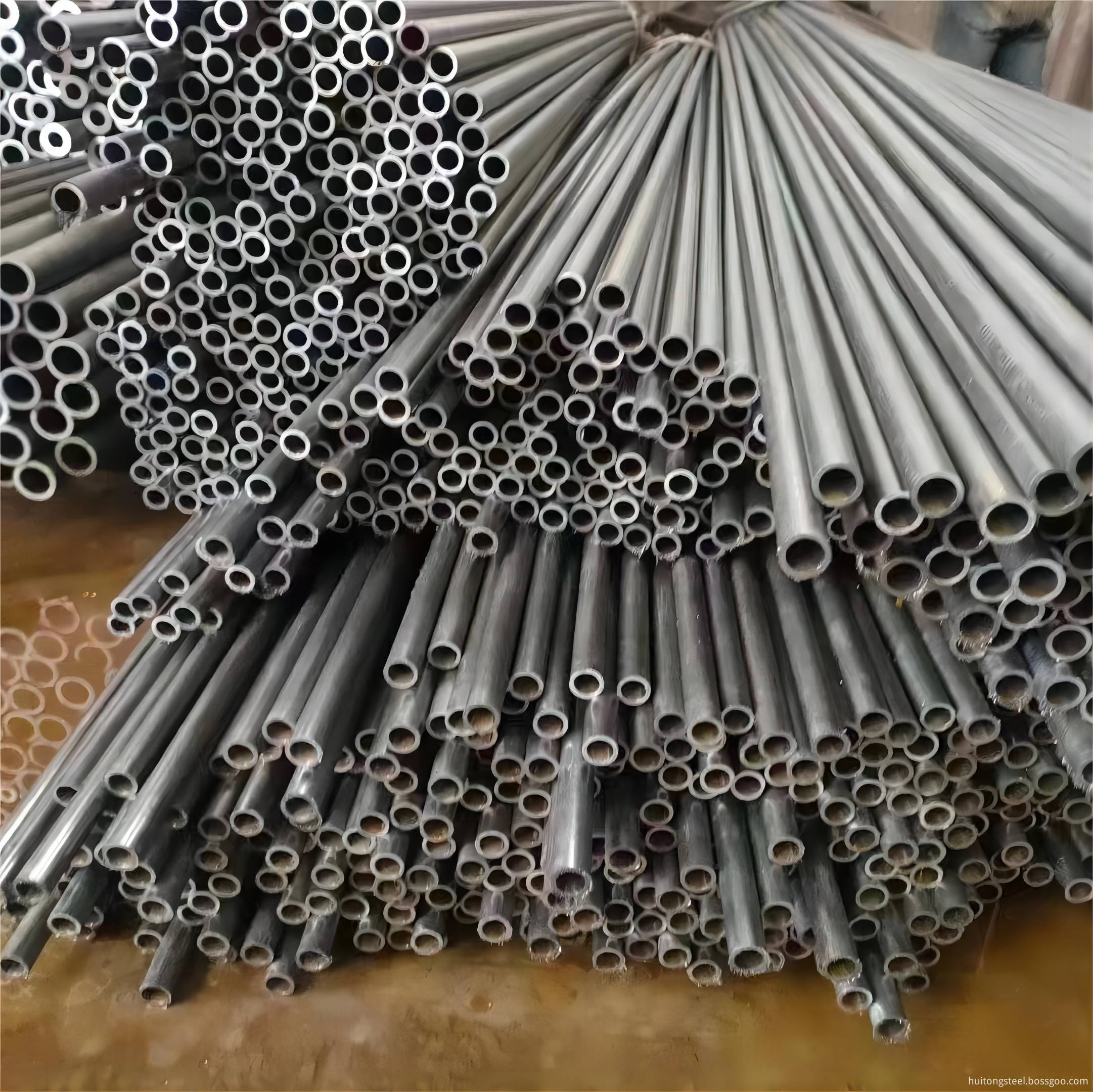

Cold Drawn Smls Steel Pipe Cold Drawn Steel Pipe

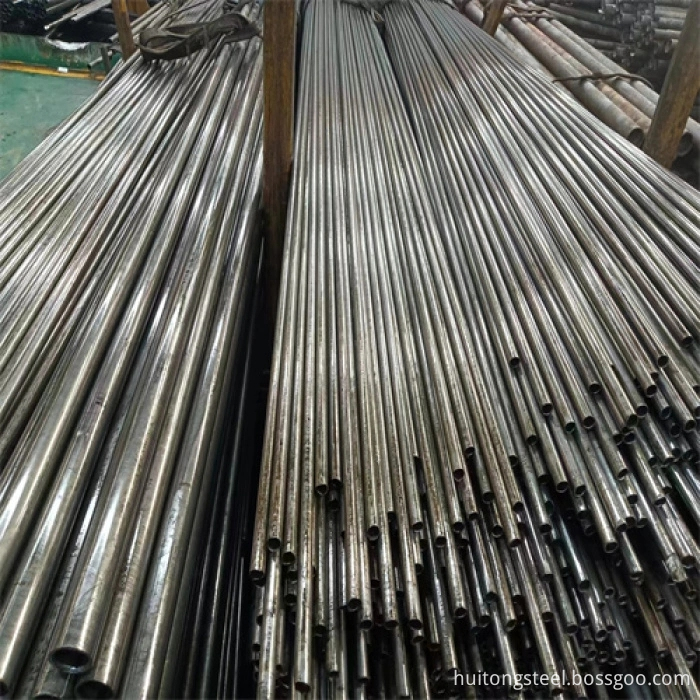

Cold Drawn Seamless Steel Pipe Cold Drawn Steel Pipe

ASTM A192 steel tube in hot rolled and cold drawn delivery state, It is generally used for high-pressure boiler (working pressure does not exceed 9.8Mpa and the working temperature between 450 ℃ -650 ℃) heating surface tubes, header, economizer, superheater, reheater.

Product Introduction

ASTM A192 / A192M is the standard applicable to seamless carbon steel boiler tubes for high-pressure service

ASTM A192 seamless steel tube sizes and thicknesses usually furnished to this specification are 1⁄2 in. to 7 in. [12.7 to 177.8 mm] outside diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.

ASTM A192 seamless steel tubes mechanical property requirements do not apply to tubing smaller than 1⁄8 in. [3.2 mm] inside diameter or 0.015 in. [0.4 mm] thickness.

ASTM A192 Referenced Documents:

ASTM A450 / A450M Specification for General Requirements for Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes.

Standard: ASTM A192 / ASME SA 192

Description Name: ASME SA 192 / ASTM A192 boiler pipes; A192 pipes; A192 carbon steel tube; ASTM A192 seamless tubing; ASTM A192 carbon steel pipe; SA192 SEAMLESS PIPE; ASTM A192 cold drawn seamless steel tubes; ASTM A192 pipes and tubing; carbon steel tube; Seamless steel tube; steel tube.

Size: 1⁄2 in. to 12 in. [12.7 to 304.8 mm]

Schedule: 1.5mm-35mm

Shape: Round

Production type: Hot finished and cold finished.

Length: Single random length/ Double random length or as customer’s actual request max length is 27m.

Grade: A192 / SA192

Technical data

ASTM A192 Seamless tubes test requirement:

Chemical Compositions

Chemical Components (%)
C	Si	Mn	P	S	Mo	Cr	V
0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	/	/	/

Mechanical Tests Required

Mechanical properties
Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	Hardness (HRB)
≥325	≥180	≥35	≤77

H518a07bf6bd64bc0bd296d3db95283cdV

ASTM A192 Seamless tubes Wall Thickness Tolerance

Seamless, Cold-Finished Tubes
Outside Diameter In. (mm)	Wall thickness Tolerance %
Outside Diameter In. (mm)	Over (+)	Under (-)
1 ½ (38.1) and under	20	0
Over 1½ (38.1)	22	0

ASTM A192 Seamless Tube Outside Diameter Tolerance

Cold-Finished Seamless Tubes
Outside Diameter In. (mm)	Permissible Variations In. (mm)
Outside Diameter In. (mm)	Over (+)	Under (-)
Under 1 (25.4)	0.004 (0.1)	0.004 (0.1)
1 to 1 ½ (25.4 to 38.1), Incl	0.006 (0.15)	0.006 (0.15)
Over 11⁄2 to 2 [38.1 to 50.8], Excl	0.008 (0.2)	0.008 (0.2)
2 to 21⁄2 [50.8 to 63.5], Excl	0.010 (0.25)	0.010 (0.25)
21⁄2 to 3 [63.5 to 76.2], Excl	0.012 (0.3)	0.012 (0.3)

ASTM A192 Seamless Tube Cut Length Tolerance

Cold-Finished Seamless Tubes
Outside Diameter, In. (mm)	Cut Length, in. (mm)
Outside Diameter, In. (mm)	Over (+)	Under (-)
All Sizes	3⁄16 [5]	0 [0]
Under 2 [50.8]	1⁄8 [3]	0 [0]
2 [50.8] and over	3⁄16 [5]	0 [0]
Under 2 [50.8]	1⁄8 [3]	0 [0]
2 [50.8] and over	3⁄16 [5]	0 [0]
These permissible variations in length apply to tubes before bending. They apply to cut lengths up to and including 24 ft [7.3 m]. For lengths greater than 24 ft [7.3 m], the above over-tolerances shall be increased by 1⁄8 in. [3 mm] for each 10 ft [3 m] or fraction thereof over 24 ft or 1⁄2 in. [13 mm], whichever is the lesser.

ASTM A192 Seamless tubes Hydrostatic Test Pressures

Each tube shall be subjected to the hydrostatic pressure test, or instead of this test, a nondestructive test may be used when specified by the purchaser.

Hydrostatic Test Pressures
Outside Diameter of Tube, in. [mm]	Hydrostatic Test Pressure, psi [MPa]
Under 1 [25.4]	1000 [7]
1 to 11⁄2 [25.4 to 38.1], excl	1500 [10]
11⁄2 to 2 [38.1 to 50.8], excl	2000 [14]
2 to 3 [50.8 to 76.2], excl	2500 [17]

ASTM A192 Seamless Tubes Flattening Test

One flattening test shall be made on specimens from each end of two tubes selected from each lot or fraction thereof.

ASTM A192 Seamless Tubes Flaring Test

One flaring test shall be made on specie- men from each end of two tubes selected from each lot or fraction thereof. These tubes shall be selected apart from those used for the flattening test.

Ordering Information

Orders for ASTM A192 Seamless carbon steel tubes should include the following, as required, to describe the desired material adequately:

Quantity (feet, meters, or number of lengths),

Name of material (seamless tubes),

Manufacture (hot-finished or cold-finished),

Size (outside diameter and minimum wall thickness),

Length (specific or random),

Optional requirements,

Test report required (see section on Certification of Specification A 450/A 450M),

Specification designation,

Special requirements.
