Vertical Line Post Insulator
2 year ago
| Type | Rated Voltage | Rate Mechanical Torsion ≥ | Overall Height | Insulation Distance | Minimum Nominal Creep Distance | 1 Min Power Frequency Withstand Voltage ≥ | Lightning Fullwave Impulse Withstand Voltage ≥ | ||
| Bend | Torsion | Dry | Wet | ||||||
| kV | kN | kN.m | mm | mm | mm | kV | kV | ||
| FZSW-66/8 | 66 | 8 | 2 | 770±1 | 620 | 1820 | 165 | 140 | 325 |
| FZSW-69/10 | 69 | 10 | 3 | 770±1 | 620 | 1820 | 165 | 140 | 325 |

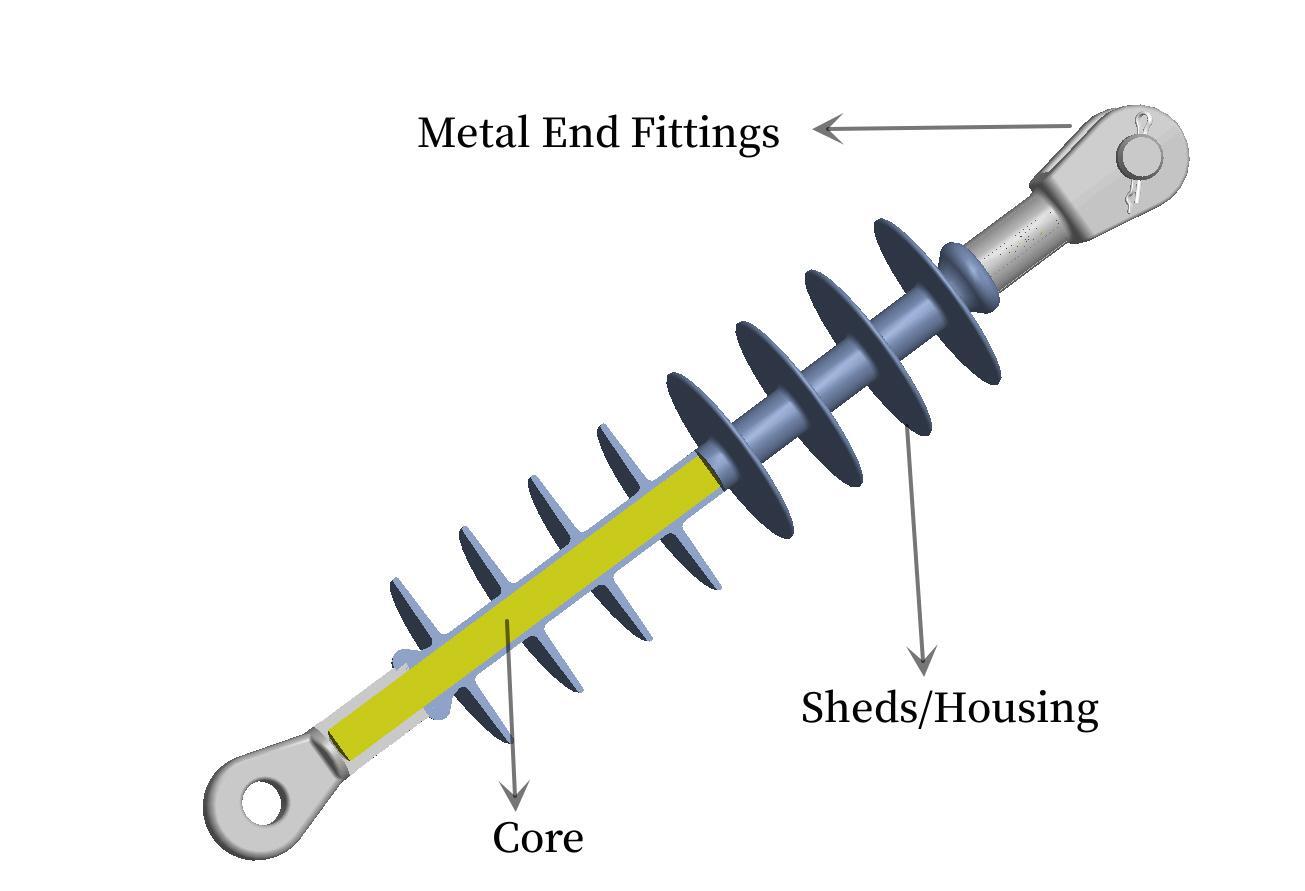

1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.

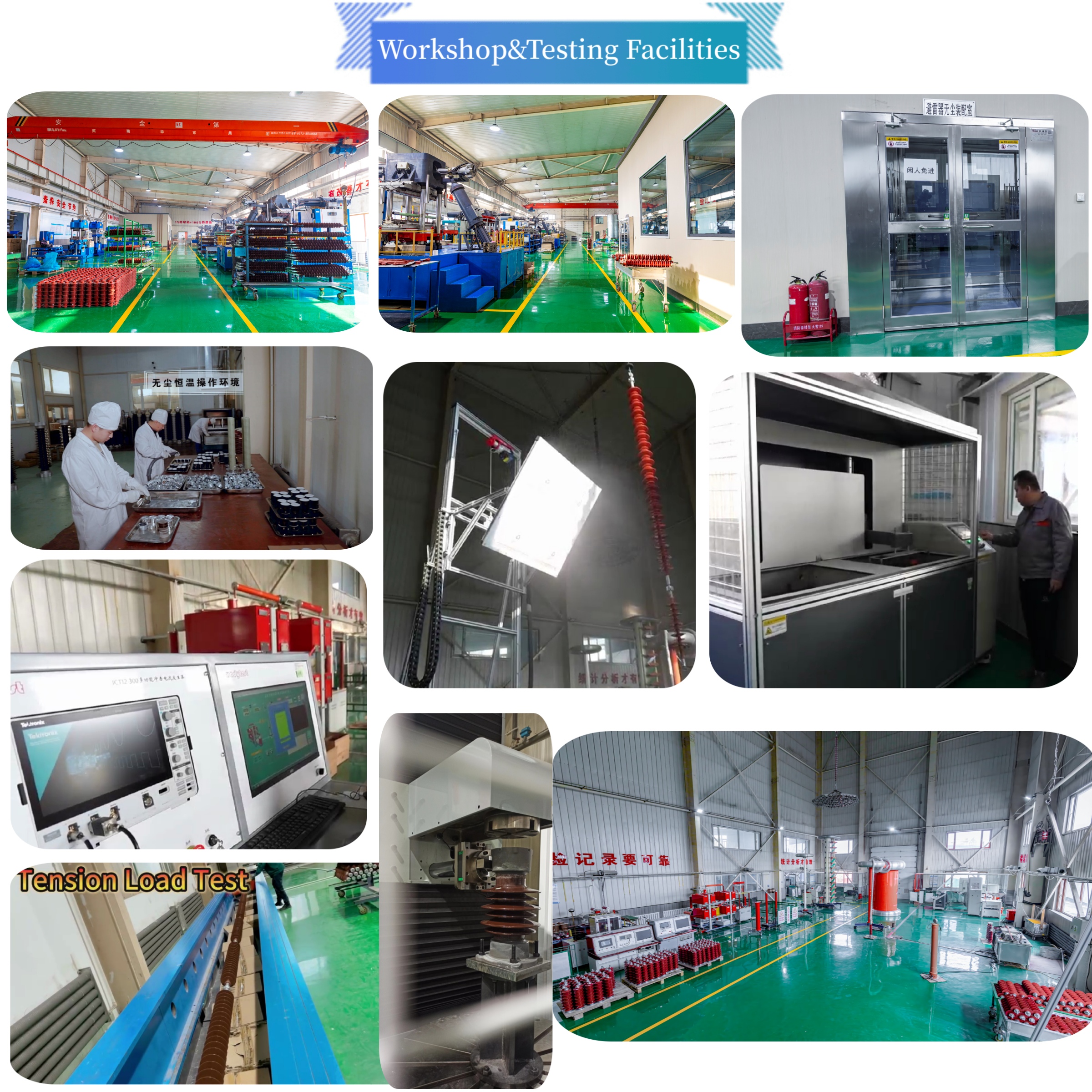

4).1000hours aging test & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
