Copper Clad Polyimide Film

2 year ago

2 0 

Shijiazhuang Dajia New materials Technology Co.,Ltd

9 year

Product details

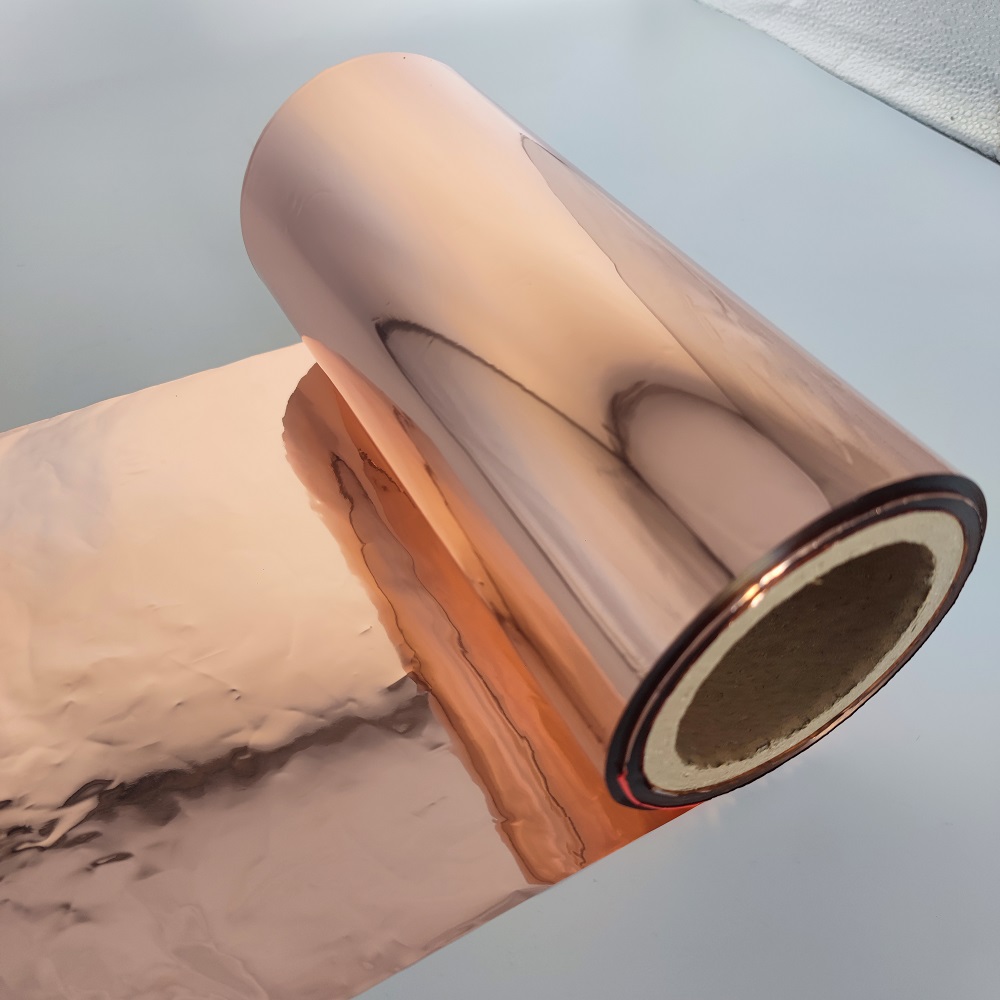

Flexible Copper Clad Laminate Polyimide Sheet Film for FPCB FCCL

Polyimide film and Copper Clad Laminate Polyimide Film is an important material in the electronic plate manufacturing industry. The PI film have excellent Electrical Insulation and heat resistance.It can be used as a flexible substrate, which can make the circuit board more flexible and reliable.It is usual used for FPCB FCCL. Polyimide films can withstand high temperatures and do not react easily with other materials, making them more suitable for making reliable electronic components.

We can produce One side or Both sides Copper plate PET film and Polyimide Film .It as an insulation between the electrical components, while ensuring good mechnical and thermal bonding.The copper plated PET or Polyimide film,the resistivity less than 1 ohm conductive.

The Polymide Film Mainly thickness is 7.5micron ,12.5micron .25micron,50um, 75micron , 125micron , 250micron ect ,The thickness of Copper is 1micron -24micron ect . The width of roll is 520mm, 1040mm, 1560mm. Accept custom any size!

Polyimide advantages:

(1) excellent heat resistance.

2) excellent mechanical properties.

(3) good chemical stability and moisture
and heat resistance.

(4) good radiation resistance.

(5) good dielectric performance.

PI film thickness: 7.5um, 12.5um, 25um, 50um,100um, 125um, 250um , etc

copper thickness :

EDHD:1um, 3um, 6um; RA: 8um 12um, 18um, 24um, others

copper side:single and Double sides
Roll width:: 520mm,1040mm etc

Roll length:: 100m
Sheet Material: PI film + copper foil ; copper foil+ Polyimide film + copper foil

Images Shows

Application

The Polyimide film Mainly used for Electrical and Electronics, circuit board manufacture H grade electric engine, transformer coil and capacitor insulation wrapping up in high-temperature, high-voltage condition SMT thermal resistance, protection of PCB board.High temperature resistance and waterproof for electronic transformer etc.

Contact:

Shijiazhuang Dajia New Material Technology Co., Ltd Established in June 2014, it is a high-tech enterprise integrating R&D,experimental processing and production. The company has been focusing on the R&D, production, sales and after-sales service of plastic film new materials for many years, and its rapid production capacity and complete differentiated product structure can meet the various needs of customers in different regions.

Our products are divided into eight categories: general PET film series, PET color film series, PET functional film series, PET deep processing film series, PI high temperature film series, PET and PI derived film series, fluorine film weathering resistance film series, and perforated film series. Metallized PET Film .

Dajia Emma Liu
