sk50 face milling holder
2 year ago
SK Face Milling Holder Mechanical spindle and cutting tools and other accessories.SK Face Milling Holder High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose. SK Face Milling Holder such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining. SK Face milling holder face milling cutter with SK shank is used in the clamping of the cutter with the radial drive groove,
1. SK Face milling holder Material: 20CrMnTi
2. SK Face milling holder Hardness: HRC56-58
3. SK Face milling holder Type: SK40/50 ER Collet Chuck
4. SK Face milling holder Standard: DIN69871
5. SK Face milling holder Dynamic Balance: G6.3/2.5

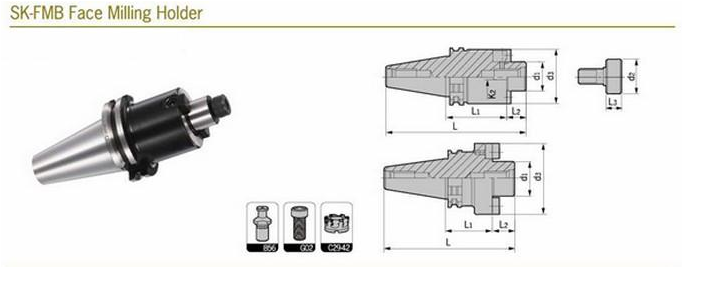

SK Face Milling Holder
|
Model |
d1 |
d2 |
d3 |
L1 |
L2 |
L3 |
L |
Locking screw |
Washer |
Weight |
|
|
SK30- |
FMB22-35 |
22 |
26 |
47 |
35 |
18 |
14 |
100.8 |
E100U300 |
|
0.70 |
|
FMB27-35 |
27 |
33 |
58 |
35 |
20 |
16 |
102.8 |
E120U300 |
FM-1 |
1.00 |
|
|
SK40- |
FMB22-35 |
22 |
26 |
47 |
35 |
18 |
14 |
121.4 |
E100U300 |
|
1.20 |
|
FMB27-60 |
27 |
33 |
58 |
60 |
20 |
16 |
148.4 |
E120U300 |
FM-1 |
1.86 |
|
|
FMB32-60 |
32 |
40 |
66 |
60 |
22 |
16 |
150.4 |
E160U350 |
FM-1 |
2.32 |
|
|
FMB40-60 |
40 |
50 |
82 |
60 |
25 |
20.5 |
153.4 |
E160U351 |
FM-1 |
2.47 |
|
|
SK50- |
FMB22-35 |
22 |
26 |
47 |
35 |
18 |
14 |
154.75 |
E100U300 |
|
3.60 |
|
FMB27-35 |
27 |
33 |
58 |
35 |
20 |
16 |
156.75 |
E120U300 |
FM-1 |
3.79 |
|
|
FMB32-35 |
32 |
40 |
66 |
35 |
22 |
16 |
158.75 |
E160Z350-4.0 |
|
4.10 |
|
|
FMB40-50 |
40 |
50 |
82 |
50 |
25 |
20.5 |
189.75 |
E160Z350-5.0 |
|
4.57 |
|
|
FMB60F-70 |
60 |
|
129 |
70 |
40 |
|
211.75 |
E160ZU500 |
|
8.00 |
|
