EVR20-078S Refrigeration Solenoid Valve
2 year ago
7/8'' EVR 20 Danfoss Type Refrigeration Solenoid Valve 032F1240
Product introduction
The EVR20-078S is a diaphragm pilot operated refrigeration solenoid valve with 7/8" port size, 5m³/ h KV value, 2 way normally closed type, and the general working coil temperature range is -40~105℃. It is designed for medium temperatures up to 105℃. This type of valve is widely used in various refrigeration systems, such as air conditioning equipment, air conditioning units, compressors and so on. We have a wide selection of AC and DC solenoid valve coils.
Brass valve body
The body of EVR20-078S is made of solid brass. The extended welding port makes installation easier. It can use low-meilting point filling materials and does not require disassembly of the valve body before welding.
Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.
Wide range of application
Generally used in commercial refrigeration systems, civil and pulic air conditioning equipment, such as air conditioners, refrigerators and other refrigeration equipment.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
EVR solder connections, Normally closed (NC)
|
Type |
Current Type |
Port Size |
Connection Size (mm) |
Max. Working Pressure (bar) |
KV Valve (m³/h) |
Code no. |
|
EVR 2 |
AC |
1/4 '' |
6 |
45.2 |
0.15 |
032F1201 |
|
EVR 3 |
AC / DC |
1/4 '' |
6 |
45.2 |
0.26 |
032F1206 |
|
AC / DC |
3/8 '' |
10 |
45.2 |
0.26 |
032F1204 |
|
|
EVR 6 |
AC / DC |
3/8 '' |
10 |
45.2 |
0.80 |
032F1212 |
|
AC / DC |
1/2 '' |
12 |
45.2 |
0.80 |
032F1209 |
|
|
EVR 10 |
AC / DC |
1/2 '' |
12 |
35 |
1.9 |
032F1217 |
|
AC / DC |
5/8 '' |
16 |
35 |
1.9 |
032F1214 |
|
|
EVR 15 |
AC / DC |
5/8 '' |
16 |
32 |
2.6 |
032F1228 |
|
AC / DC |
7/8 '' |
22 |
32 |
2.6 |
032F1225 |
|
|
EVR 20 |
AC |
7/8 '' |
22 |
32 |
5.0 |
032F1240 |
|
DC |
7/8 '' |
22 |
32 |
5.0 |
032F1264 |
|
|
AC |
1 1/8 '' |
28 |
32 |
5.0 |
032F1244 |
|
|
EVR 22 |
AC |
1 3/8 '' |
35 |
32 |
6.0 |
032F3267 |
|
EVR 25 |
AC / DC |
1 1/8 '' |
28 |
32 |
10.0 |
032F2201 |
|
AC / DC |
1 3/8 '' |
35 |
32 |
10.0 |
032F2208 |
|
|
EVR 32 |
AC / DC |
1 5/8 '' |
42 |
32 |
16.0 |
042H1104 |
|
EVR 40 |
AC / DC |
1 5/8 '' |
42 |
32 |
25.0 |
042H1110 |
|
AC / DC |
2 1/8 '' |
42 |
32 |
25.0 |
042H1112 |

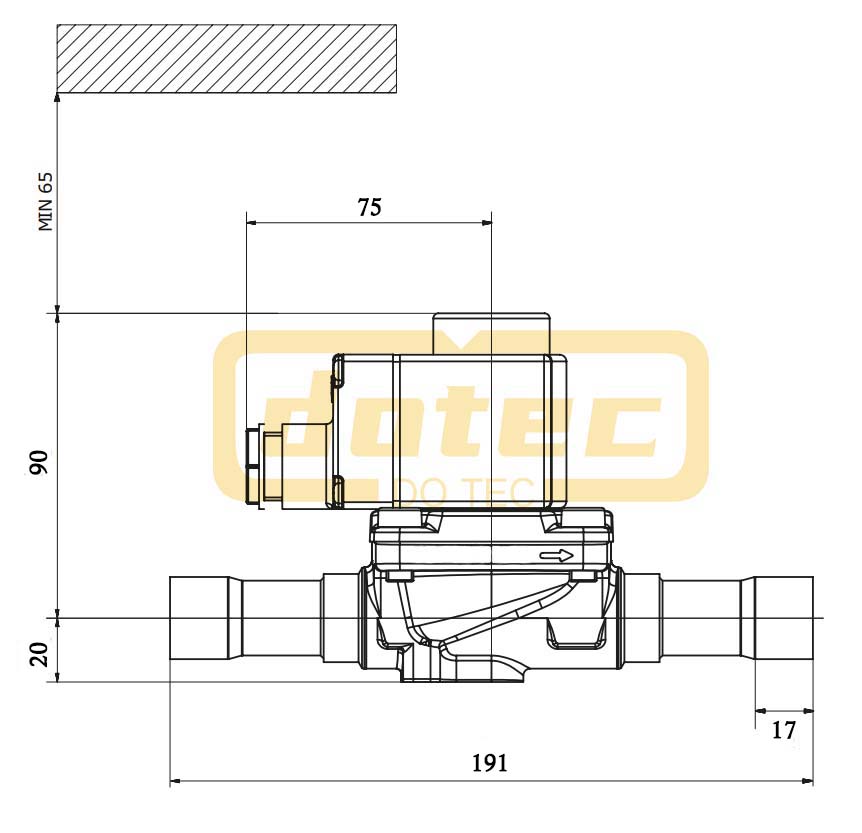

EVR20-078S Dimension
