Carbide Tip1.6
2 year ago

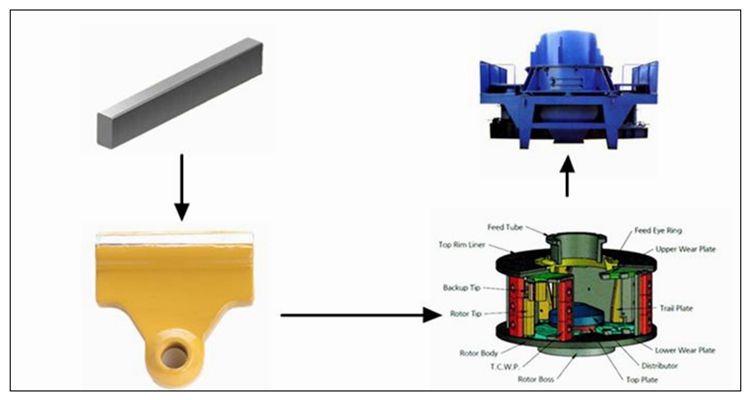

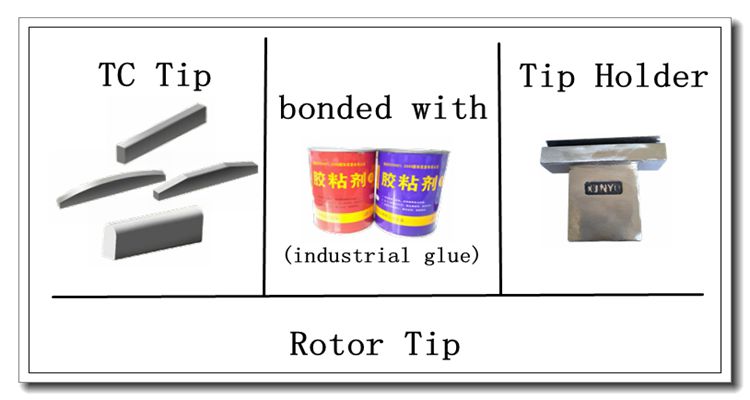

Application of rotor tip set carbide tip

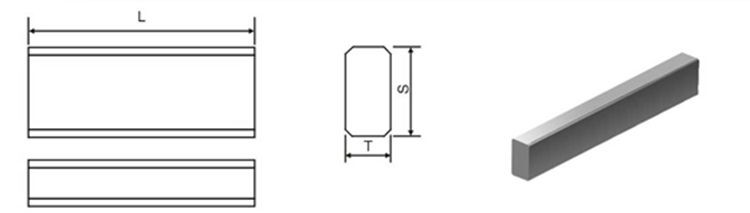

Reference Size of carbide bar
|
||||
| L(mm) | T(mm) | S(mm) | Chamfer | Approx.W(g) |
| 50 | 12 | 26 | 1*45° | 230 |
| 52.5 | 10 | 19 | 1*45° | 141 |
| 60 | 12 | 23 | 1*45° | 242 |
| 110 | 10 | 20 | 1*45° | 321 |
| 113 | 16 | 25 | 1*45° | 680 |
| 150 | 11.5 | 19.5 | 1*45° | 662 |
| 160 | 23 | 23 | 1*45° | 742 |
Reference Grade of carbide plate
| Grade | Physical Properties | |||
|
Density g/cm3 |
Coercivity kA/m |
Hardness HRA |
TRS ≥N/mm2 |
|
| YG6 | 14.82-15.05 |
12.5-17.5 13.0-17.0 |
90.5-92.0 | 1720 |
| YG6X | 14.8-15.0 |
18.8-24.3 19.0-24.5
|
91.7-93.0 | 1600 |
| YG8 | 14.62-14.82 |
10.0-15.0 11.0-15.5 |
89.5-91.0 | 1800 |
| YG8C | 14.6-14.8 | 6.3-9.3 | 87.5-89.0 | 2000 |
| YG15 | 13.95-14.15 | 7.0-10.0 | 87.0-88.5 | 2300 |
| More | ||||

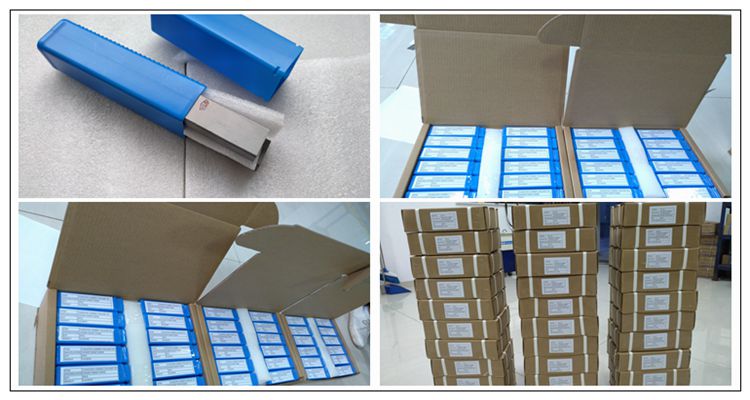

Packaging
Recommend goods

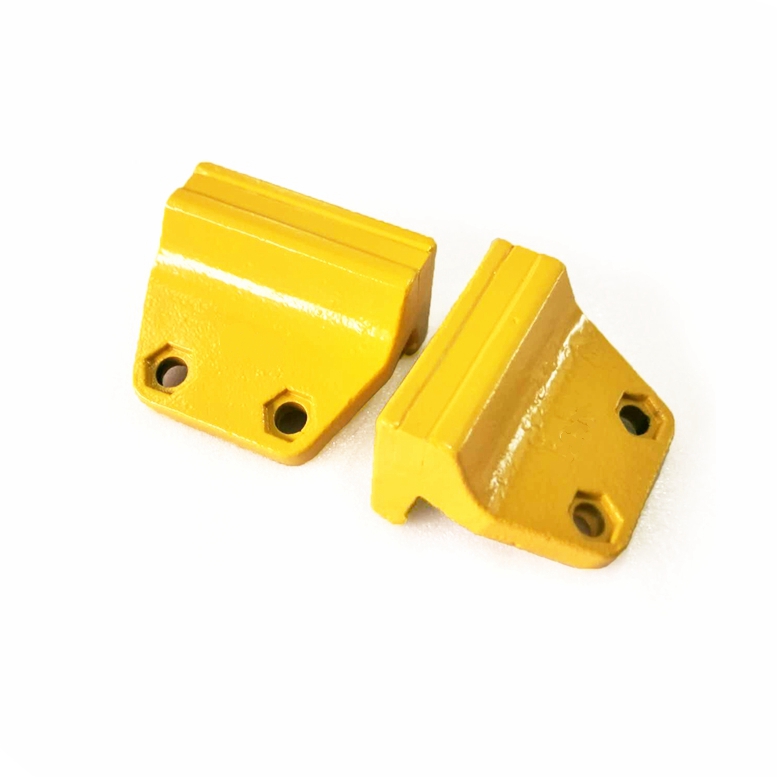

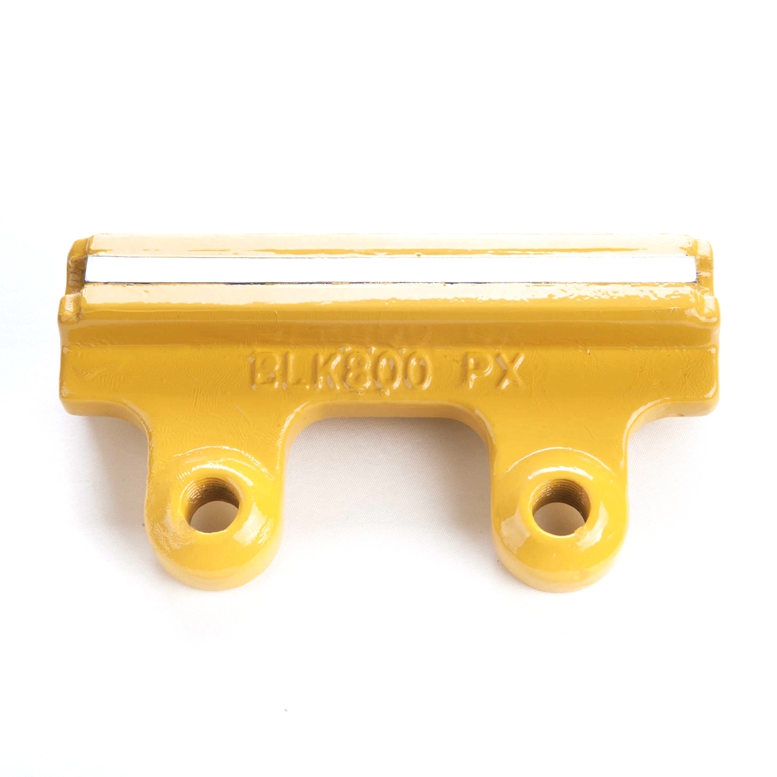

Rotor tip set
Crusher part
If you are interested in our product, please feel free to contact us for more details.
