AEL 6 AEL-222215 Honeywell Type Automatic Expansion Valve
Product introduction
The AEL 6 is an AEL series automatic expansion valve with fixed orifice and adjustable vaporation pressure setting. When the outlet pressure of the valve changes, the valve will automatically adjust to close or open, keeping the outlet pressure constant at the set valve and not sffected by the inlet pressure within a certain range. It can withstand a maximum pressure of 25.5bar and a maximun ambient temperature of 100℃, and it is suitable for all fluoride refrigerants.
Small Size valve body
The body of AEL 6 has the smallest dimensions, can be welded and installed in any position, and has high performance.
Stainless Steel Head
It features a stainless steel head and stainless steel diaphragm welded to make it extremely durable.
Wide range of application
Generally suitable for refrigeration and original equipmant, such as dehumidifiers, air conditions, ice machines, air dryers and water coolers.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
Connections (ODF) |
Nominal Capacity (KW) |
Orifice Size |
Max. Temperature |
Max. Pressure |
Type |
||||
|
Inlet |
Outlet |
R22 |
R134a |
R404A |
R507A |
|||||
|
AEL 0.5 |
1/4 “ |
3/8 “ |
1.4 |
1.0 |
0.97 |
0.98 |
0.7 |
100℃ |
25.5 bar |
AEL-222210 |
|
AEL 1 |
2.0 |
1.4 |
1.4 |
1.4 |
1.0 |
AEL-222211 |
||||
|
AEL 2 |
4.0 |
2.9 |
2.8 |
2.9 |
2.0 |
AEL-222212 |
||||
|
AEL 3 |
9.3 |
6.6 |
6.5 |
6.6 |
3.0 |
AEL-222213 |
||||
|
AEL 4 |
12.2 |
8.7 |
8.6 |
8.7 |
3.5 |
AEL-222214 |
||||
|
AEL 5 |
3/8 “ |
5/8 “ |
22.4 |
15.9 |
15.8 |
15.9 |
4.75 |
AEL-22285 |
||
|
AEL 6 |
29.1 |
20.0 |
20.5 |
20.7 |
5 |
AEL-222215 |
||||

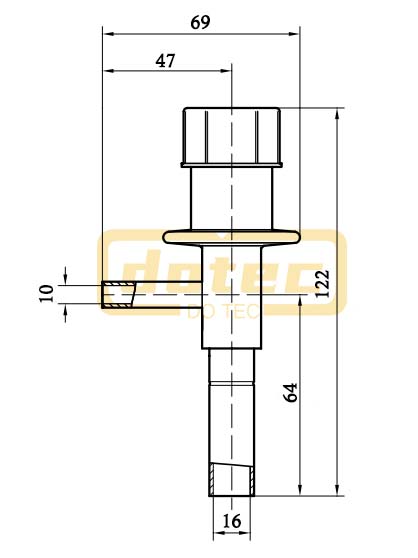

AEL 6 Dimension
