3A110-06 Airtac Type Air Pilot Pneumatic Valve 3/2 Way
Product introduction
The 3A110-06 AIRTAC type pneumatic air pilot valve. Its working medium is 40 micron filtered air, the working temperature is -20~70℃, and the maximum operating frequency is 5 cycle/sec. This type of double control solenoid air valve has memory function and is usually used in pneumatic systems. We have other AIRTAC type air pneumatic valve options, like 3A110-M5, 3A120-M5, 3A120-06. The most common types are 3/2-way, 5/2-way and 5/3-way.
Aluminum valve body
The body of 3A110-06 is made of aluminum alloy, and its inner hole adopts special processing technology to achieve low friction,low starting pressure and longer service life.
Air Pilot
No coil, pneumatic control, highly responsive. It is used to send signals to other pneumatic devices and is suitable for a variety of pneumatic industries and equipment.
Wide application
It is widely used in electromechanical devices that control air or process gas flow, and is commonly used in pneumatic systems with pneumatic cylinders and filters.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
3A110-M5 |
3A120-M5 |
3A110-06 |
3A120-06 |
|
Position and Way No. |
3/2 Way |
|||
|
Effective Section Area |
10mm² (CV=0.56) |
12mm² (CV=0.67) |
||
|
Port Size |
In=Out=Exhaust=M5×0.8 |
In=Out=Exhaust=G1/8 '' |
||
|
Working Medium |
40 Micron Filtered Air |
|||
|
Max. Pressure Resistance |
1.2 MPa (175psi) |
|||
|
Temperature |
-20~70℃ |
|||
|
Body Material |
Aluminum Alloy |
|||
|
Max Frequency |
5 cycle / sec |
|||
|
Acting Type |
Internal pilot |
|||
|
Working Pressure |
0.15~0.8 MPa (21~114 psi) |
|||
|
Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC |
|||

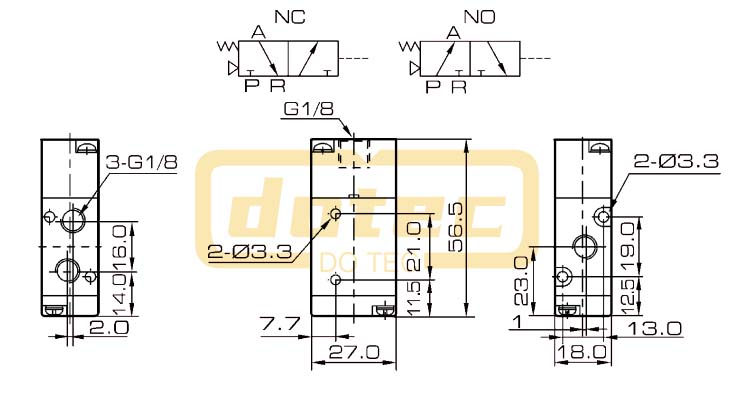

3A110-06 Dimension
