Product details

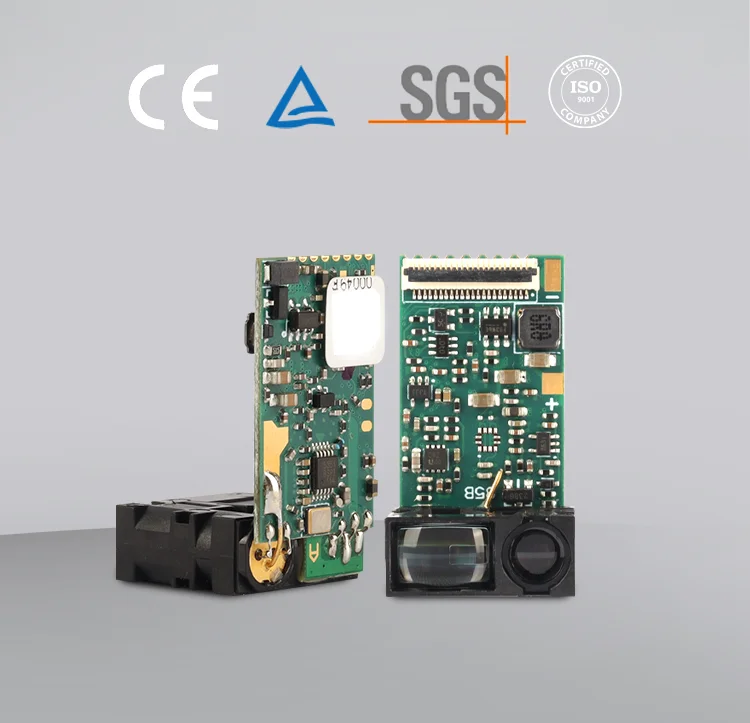

LDLL Module

This laser distance module provides faster and more accurate distance measurements, even in harsh test environments such as poor reflective surfaces. reflective surfaces. The extremely small size and light weight of our newest rangefinder module, this module, allows the module to be used in extreme applications where size and weight are important, such as robotics, drones, etc. This module can be used in a wide range of applications. size and weight requirements, such as in robotics, drones, and other extreme applications.

Accuracy	±1mm
Units of measurement	mm
Measure distance	0.03-5 meters
measure time	0.35~4 seconds
Laser standards	Class II
operating temperature	0-40 ℃ （32-104 ℉ ）
Storage temperature	25~60 ℃ (-13~140 ℉)
Voltage	DC 2.5~3.3V
size	42156mm
weight	4g

Attention:

1. Under adverse measurement conditions (e.g., excessive ambient light, large or small diffuse reflection coefficient of the measured point), the measurement accuracy will be subject to large errors: ±3 mm+40PPM. 2. Use a surveyor's plate in case of strong sunlight or poor target reflection. 3. If the operating temperature range is -10 C° to 50 C°, special order is required.

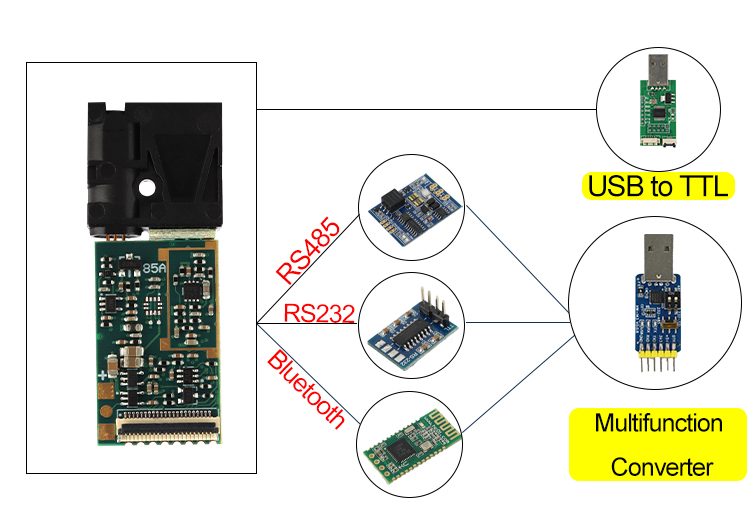

Communication Port

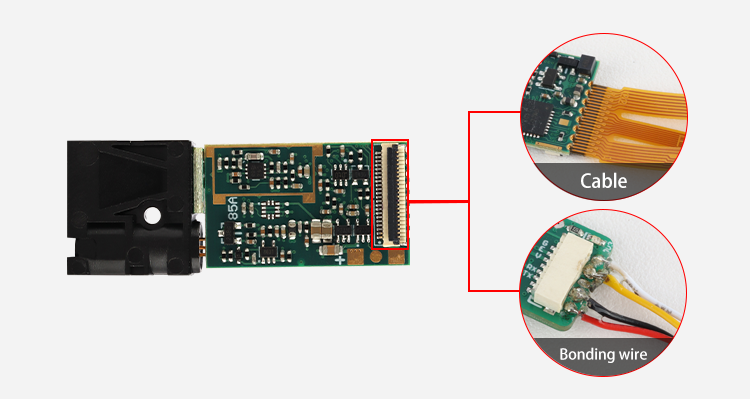

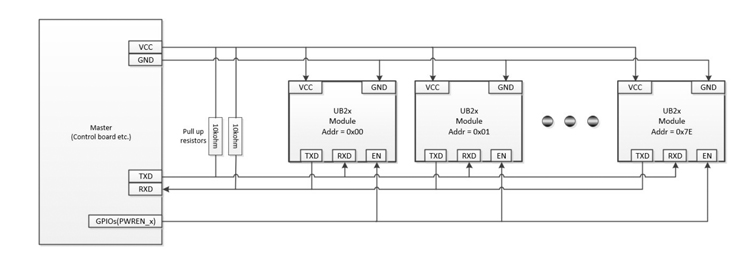

Product Pins And Connection Methods.

We also have long range laser distance sensor, High precision laser distacne sensor, IP protection sensor, industrial laser distance sensor, TOF sensor, welcome to consult us!
