Product details

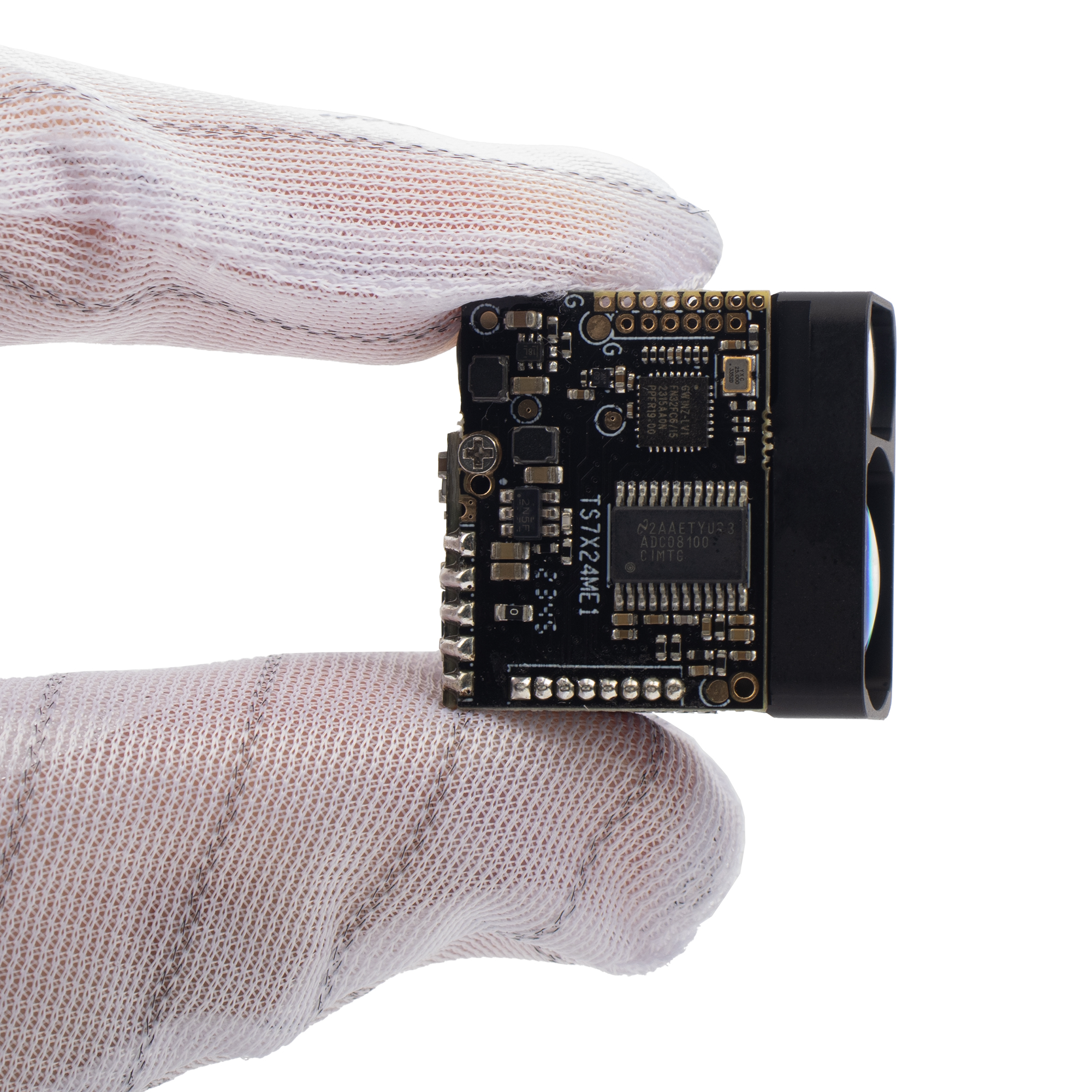

The TS1224 Laser Rangefinder Module represents Meskernel's latest advancement in the realm of compact yet robust laser ranging sensors. It stands as the smallest unit (measuring 25.72 * 24.6 * 13.4mm) within the Pulse Ranging Sensor series. Crafted from metal, the TS1224 demonstrates remarkable stability in extreme temperature conditions ranging from -20°C to 70°C. Furthermore, its glass lens enhances its light signal reception capabilities

The TS1224 Long Range Laser Distance Sensor boasts an impressive range of up to 1500 meters with high accuracy of ±1 meter, making it suitable for both indoor and outdoor applications. Employing a 905nm laser, it poses no harm to human eyes due to its low power level. For a comprehensive overview of its technical specifications, please refer to the details provided below.

Part No.: TS 1224

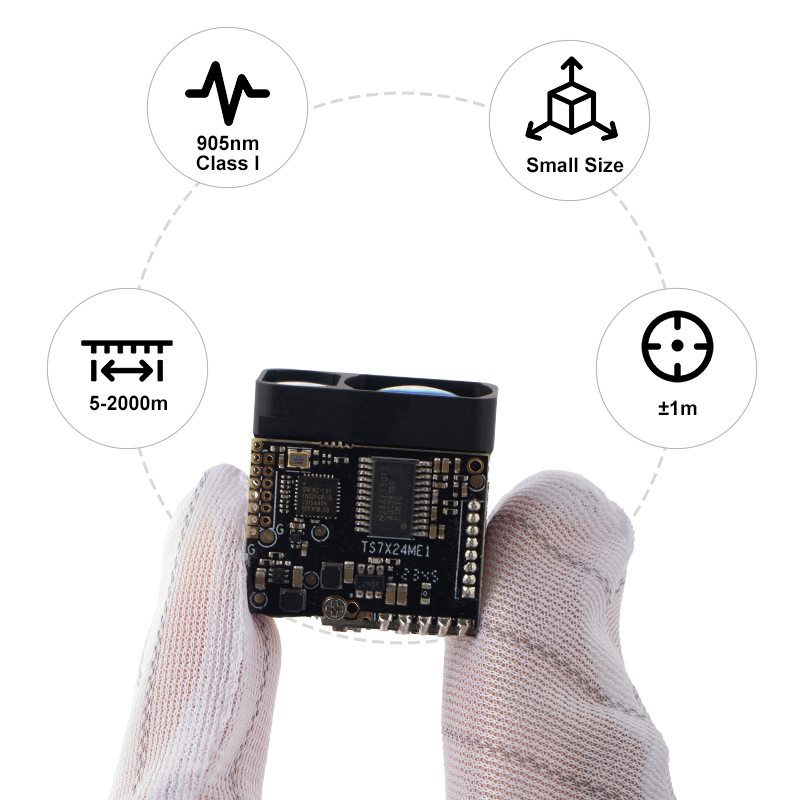

Range: 5-1500m

Accuracy: ±1m (<200m; >200m at 0.5%)

Frequency: 1-3Hz (Reflectivity: 1.0, Interference light intensity: 1kLux, Distance: 0.03-10m)

Laser Type: 905nm, Invisible

Laser Class: Class I (IEC 60825-1:2014), <0.4mw

Measurement Method: Pulse principle

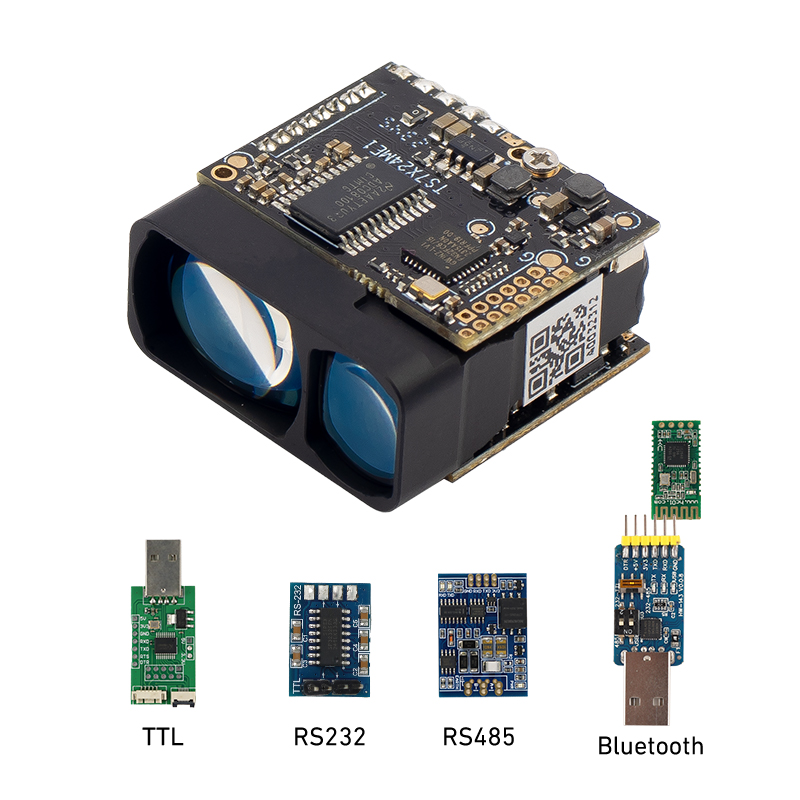

Interface: UART/TTL/RS232/RS485/Bluetooth
