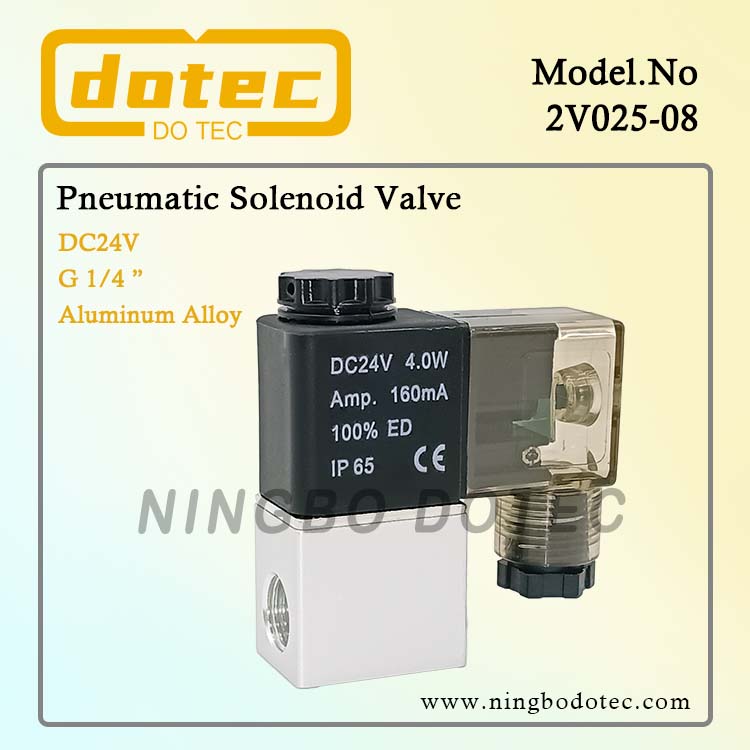

2V025-08 1/4'' Airtac Type Pneumatic Solenoid Valve DC12V DC24V
Product introduction
The 2V025-08 Airtac pneumatic solenoid valve is 2V025 series direct acting normally closed 2/2 way connection box solenoid valve. Its seals are made of NBR and are suitable for a variety of working media, such as air, water, oil. The high sensitivity of this valve enables it to change direction quickly, while the small and compact structure makes it easy to install. We have variety of voltage options 12VDC, 24VDC, 24VAC, 110VAC, 220VAC.
Aluminum valve body
The body of 2V025-08 is made of aluminum alloy, and its inner hole adopts special processing technology to achieve low friction,low starting pressure and longer service life.
Stable Solenoid Coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.
Wide application
It is widely used in electromechanical devices that control air or process gas flow, and is commonly used in pneumatic systems with pneumatic cylinders and filters.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
2V025-06 |
2V025-08 |
2V130-10 |
2V130-15 |
2V250-20 |
2V250-25 |
|
Acting Type |
Normally Closed |
|||||
|
Operation |
Direct Acting |
Internally Pilot Acting |
||||
|
Fluid |
Air, Water, Oil |
|||||
|
Orifice Size (mm) |
2.5 |
2.5 |
13.0 |
13.0 |
25.0 |
25.0 |
|
CV Value |
0.23 |
0.25 |
6.20 |
6.20 |
13.0 |
13.0 |
|
Port Size |
1/8 '' |
1/4 '' |
3/8 '' |
1/2 '' |
3/4 '' |
1 '' |
|
Viscosity Limit |
Under 20CST |
|||||
|
Working Pressure |
0~1.0 MPa (0~145psi) |
0.05~10 MPa (7~145psi) |
||||
|
Max. Pressure |
1.5 MPa (215psi) |
|||||
|
Material Body |
Aluminum Alloy |
Brass |
||||
|
Seal Material |
NBR |
|||||
|
Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|||||

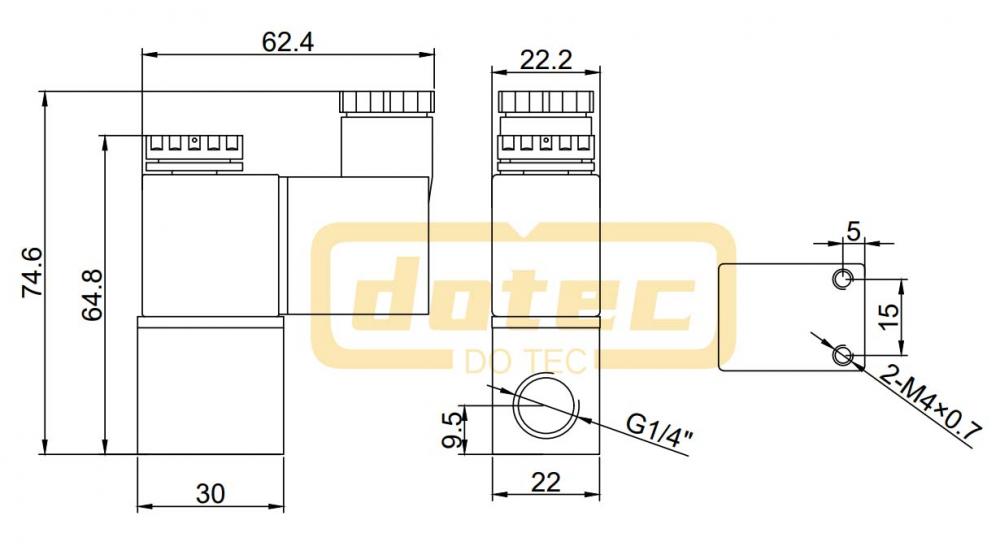

2V025-08 Dimension
