2V250-25 pneumatic valve
2 year ago
2V250-25 1'' Diaphragm Piloted Brass Solenoid Valve 220VAC
Product introduction
The 2V250-25 Airtac pneumatic solenoid valve is 2V250 series diaphragm piloted type normally closed 2/2 way solenoid valve. Its seals are made of NBR and are suitable for a variety of working media, such as air, water, oil. The valve has low energy consumption and large air flow. The starting pressure is low and the Min. operational differential pressure is 0.05MPa. We have variety of voltage options 12VDC, 24VDC, 24VAC, 110VAC, 220VAC.
Brass valve body
The body of 2V250-25 is made of solid brass and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.
Stable Solenoid Coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.

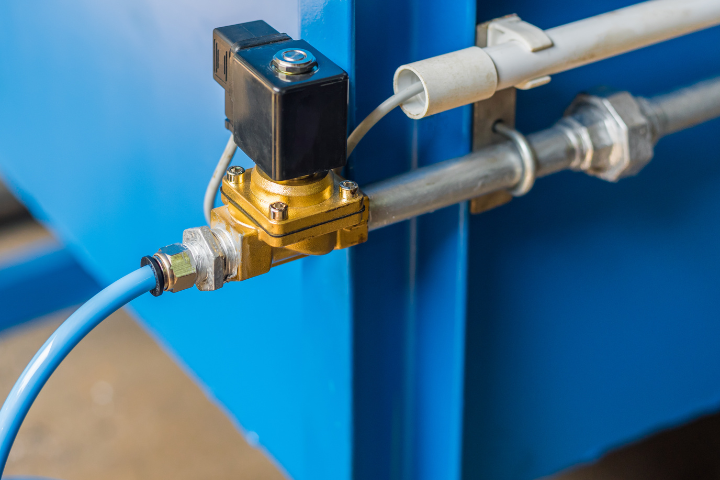

Wide application
It is widely used in electromechanical devices that control air or process gas flow, and is commonly used in pneumatic systems with pneumatic cylinders and filters.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |

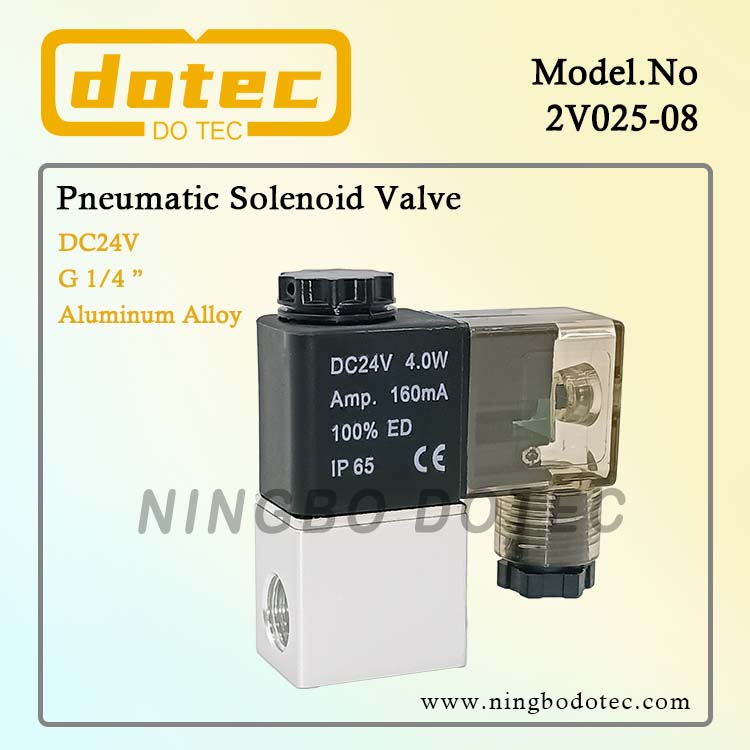

2V025-06 |
2V025-08 |
2V130-10 |
2V130-15 |
2V250-20 |
2V250-25 |
|
Acting Type |
Normally Closed |
|||||
|
Operation |
Direct Acting |
Internally Pilot Acting |
||||
|
Fluid |
Air, Water, Oil |
|||||
|
Orifice Size (mm) |
2.5 |
2.5 |
13.0 |
13.0 |
25.0 |
25.0 |
|
CV Value |
0.23 |
0.25 |
6.20 |
6.20 |
13.0 |
13.0 |
|
Port Size |
1/8 '' |
1/4 '' |
3/8 '' |
1/2 '' |
3/4 '' |
1 '' |
|
Viscosity Limit |
Under 20CST |
|||||
|
Working Pressure |
0~1.0 MPa (0~145psi) |
0.05~10 MPa (7~145psi) |
||||
|
Max. Pressure |
1.5 MPa (215psi) |
|||||
|
Material Body |
Aluminum Alloy |
Brass |
||||
|
Seal Material |
NBR |
|||||
|
Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|||||
2V250-25 Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
