3V1-06 pneumatic valve
2 year ago
3V1-06 Airtac Type 3/2 Way Pneumatic Air Solenoid Valve 220VAC
Product introduction
The 3V1-06 Airtac pneumatic solenoid valve is a normally closed direct acting 3/2 way solenoid valve. The working medium is 40 micron filtered air, the working temperature is -20~70℃, and the orifice size is 1.2mm. This type of valve operates without oil lubrication, and multipe valves can be connected in series to save installation space. We have several standard voltages to choose from: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC.
Aluminum valve body
The body of 3V1-06 is made of aluminum alloy, and its inner hole adopts special processing technology to achieve low friction,low starting pressure and longer service life.
Stable Solenoid Coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.
Wide application
It is widely used in electromechanical devices that control air or process gas flow, and is commonly used in pneumatic systems with pneumatic cylinders and filters.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
3V1-M5 |
3V1-06 |
|
Port size |
M5 |
1/8 '' |
|
Valve Type |
3/2 Way |
|
|
Acting Type |
Direct Acting |
|
|
Fluid |
40 Micron Filtered Air |
|
|
Operating Pressure |
0~0.8 MPa (0~114psi) |
|
|
Max. Pressure |
1.5 MPa (215psi) |
|
|
Temperature |
-20~70℃ |
|
|
Orifice size |
1.2mm |
|
|
Material of body |
Aluminum Alloy |
|

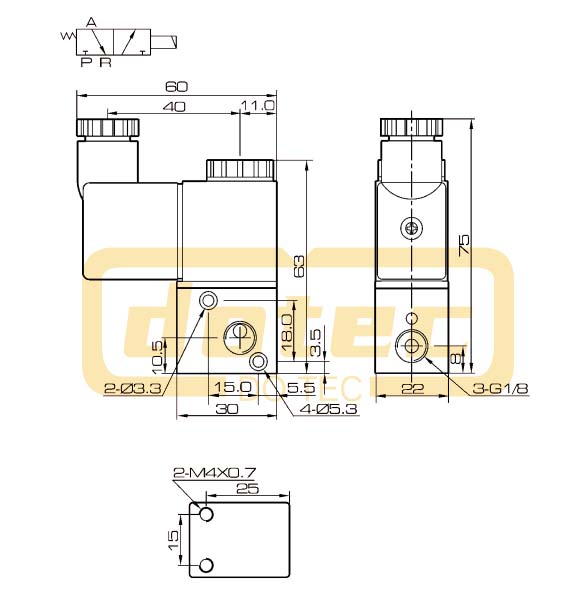

3V1-06 Dimension
