6mm using epoxy resin/vinyl pvc/white fiberglass

2 year ago

12 0 

Chongqing Qingtao Fiberglass Products Co., Ltd.

2 year

Product details

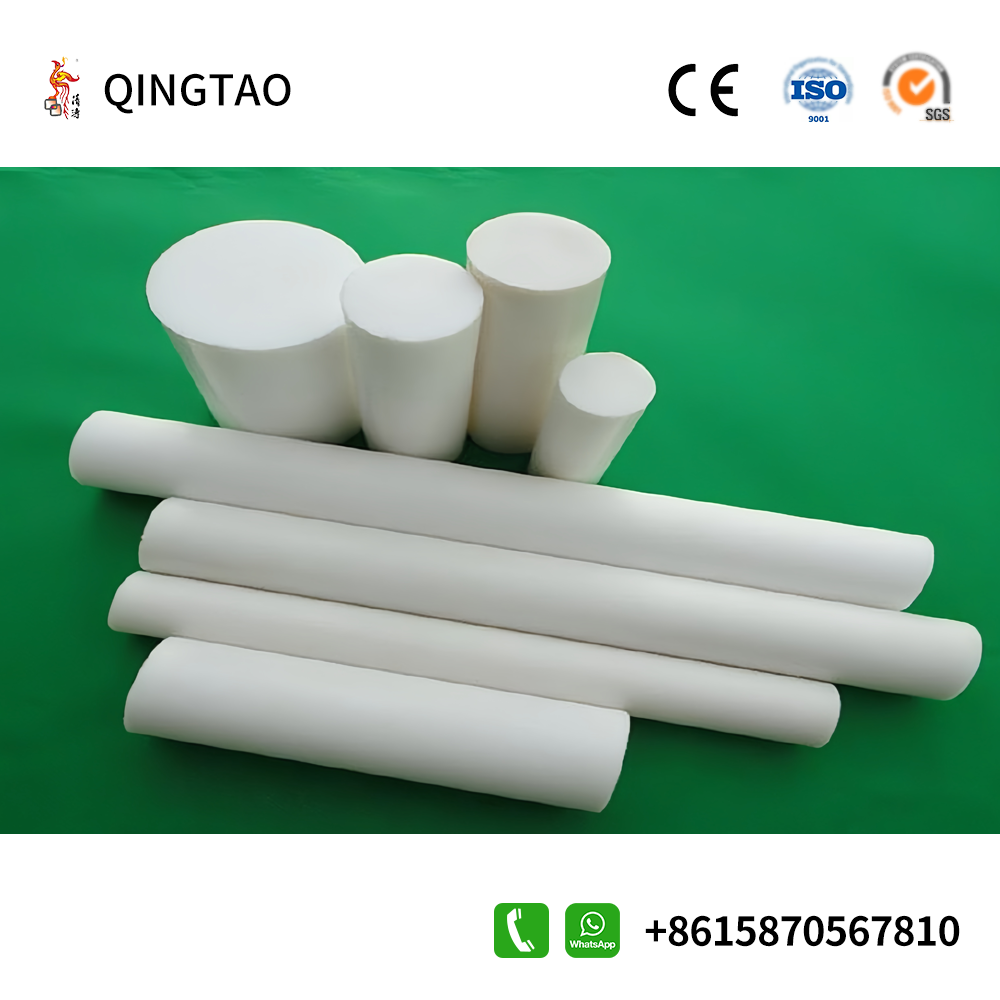

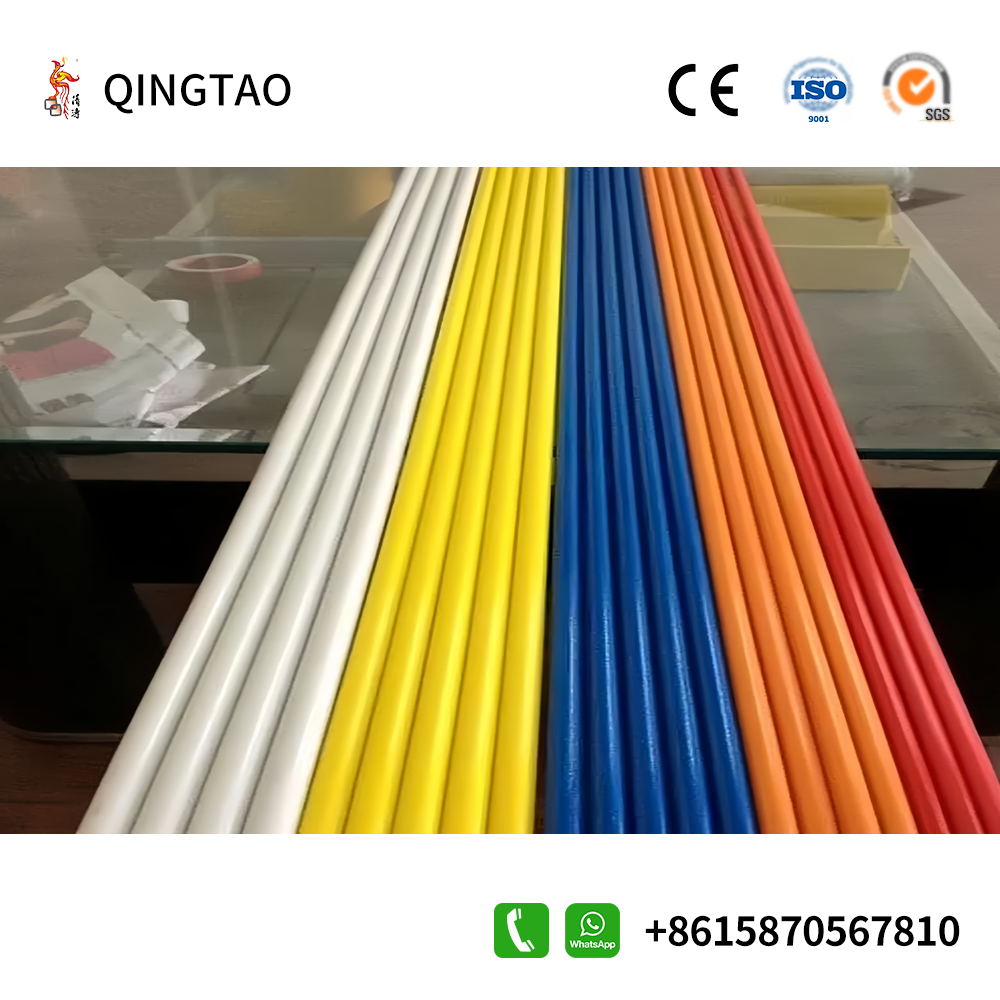

Fiberglass rod is a high-strength composite (glass rod) material made of raw wires pre-impregnated with resin and pultruded. Because it is light, highly elastic, acid and alkali resistant, anti-corrosion, good flexibility, beautiful, insulating, corrosion-resistant, and has comprehensive benefits It has good performance advantages and is mainly suitable for outdoor outdoor work supports, tourist tents, kite frames/umbrella frames, flagpoles(Fiber glass), arrow shafts, fishing rod tail tips, model aircraft(Fiberglass cloth), etc. For products such as pipe fittings, our company currently produces specifications with diameters of 2.0mm, 2.5mm, 3.0mm, .3.5mm, 4.0mm, 4.5mm~~~300m inner hole, which can be customized according to clients need (Fiber glass rod).

Glass fiber rod is a pultruded fiberglass composite material. It is a thermosetting elastic material made of continuous glass fiber roving and resin under the traction and molding of a pultrusion molding machine; the resin-rich layer on the surface makes it have good anti-corrosion properties

Fiberglass Rod
Diameter		Weight		Diameter		Weight
mm	inch	g/m	lb/ft	mm	inch	g/m	lb/ft
2	0.079	6	0.004	17.5	0.689	481	0.323
3	0.118	14	0.009	18	0.709	509	0.342
3.2	0.126	16	0.011	19	0.748	567	0.381
4	0.157	25	0.017	20	0.787	628	0.422
5	0.197	39	0.026	22	0.866	760	0.511
6	0.236	57	0.038	24	0.945	905	0.608
6.35	0.25	63	0.043	25	0.984	982	0.66
7	0.276	77	0.052	25.4	1	1013	0.681
7.5	0.295	88	0.059	26	1.024	1062	0.714
8	0.315	101	0.068	28	1.102	1232	0.828
8.5	0.335	113	0.076	30	1.181	1414	0.95
9.5	0.374	142	0.095	32	1.26	1608	1.081
10	0.394	157	0.106	35	1.378	1924	1.293
11	0.433	190	0.128	36	1.417	2036	1.368
12	0.472	226	0.152	38	1.496	2268	1.524
12.7	0.5	253	0.17	40	1.575	2513	1.689
14	0.551	308	0.207	45	1.772	3181	2.137
15	0.591	353	0.237	50	1.969	3927	2.639
15.7	0.618	387	0.26	50.8	2	4054	2.724
16	0.63	402	0.27	76	2.992	9073	6.097
16.5	0.65	428	0.287	100	3.937	15708	10.555
If there are any differences in parameters, staff will inform you during consultation
