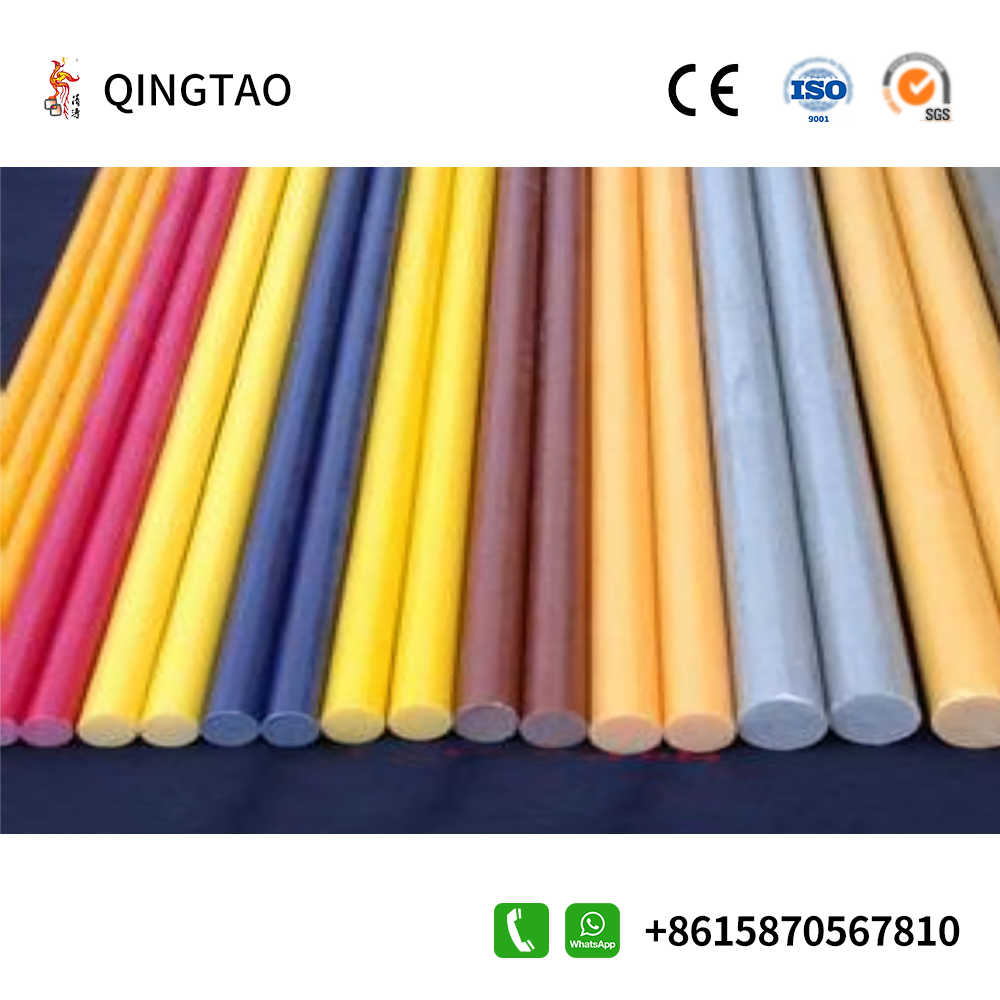

10mm fiberglass rodding/fiberglass roll
2 year ago
Product details
Fiberglass rodding(Fiber glass) is an innovative composite material. Made up of continuous broken glass fiber rovings (Fiberglass cloth) and resin under traction and molding by pultrusion molding machines, fiberglass rodding offers good anti-corrosion properties thanks to the resin rich surface layer.
1.Lightweight, sturdy and high elasticity.
2. Relatively lightweight at about 1/3 lighter than aluminum and 1/4-1/5 lighter than ordinary carbon steel, glass fiber tensile profiles boast unrivaled mechanical properties which outshone even many metal materials and other materials; additionally they possess excellent elasticity that allows full circle bends without cracking or breaking in some case.
3. Attractive and cost-effective fiberglass rods offer customers many advantages for various uses; their low prices make them highly accessible; they can be made into various colors to meet customer preferences; maintenance is generally minimal;
4. Beautiful and easy to maintain, with various colors. Fiberglass rods can be made into various colors according to customer needs, with good surface quality and good appearance. Normally almost no maintenance is needed.
5. Glass fiber rods(glass rod) have outstanding electrical insulation characteristic and can be used as insulating parts in instruments, clicks and electrical appliances. In addition, FRP does not affect electromagnetism or sparks and has excellent microwave transmission properties, and has good microwave transmission properties. It can be used in equipment areas with conductive hazards, magnetic sensitivity, and flammable and the explosive of place.
6. Non-heat conductive and flame retardant. Glass fiber rods have good thermal properties, with a large specific heat, 2-3 times that of metal, and a relatively low thermal conductivity, 1/100 to 1/1000 that of metal. At the same time, its resistance to the temperature rises in a short time , is also outstanding, and it is used in rockets, missiles, and spacecrafts.
7. Long-term temperature resistance and flame retardancy. Temperature resistance mainly depends on the resin used. The temperature used for a long time cannot exceed the heat deformation temperature of the resin. As high-temperature resistant materials， carbon fiber composite materials have a much lower thermal expansion coefficient than ordinary plastics. They have excellent mechanical properties at low temperatures and will not melt at high temperatures. However, the strength and modulus will decrease at high temperatures.
8. Excellent machining performance. It can be cut, drilled, turned, sanded, tapped, etc.
1.Lightweight, sturdy and high elasticity.
2. Relatively lightweight at about 1/3 lighter than aluminum and 1/4-1/5 lighter than ordinary carbon steel, glass fiber tensile profiles boast unrivaled mechanical properties which outshone even many metal materials and other materials; additionally they possess excellent elasticity that allows full circle bends without cracking or breaking in some case.
3. Attractive and cost-effective fiberglass rods offer customers many advantages for various uses; their low prices make them highly accessible; they can be made into various colors to meet customer preferences; maintenance is generally minimal;
4. Beautiful and easy to maintain, with various colors. Fiberglass rods can be made into various colors according to customer needs, with good surface quality and good appearance. Normally almost no maintenance is needed.
5. Glass fiber rods(glass rod) have outstanding electrical insulation characteristic and can be used as insulating parts in instruments, clicks and electrical appliances. In addition, FRP does not affect electromagnetism or sparks and has excellent microwave transmission properties, and has good microwave transmission properties. It can be used in equipment areas with conductive hazards, magnetic sensitivity, and flammable and the explosive of place.
6. Non-heat conductive and flame retardant. Glass fiber rods have good thermal properties, with a large specific heat, 2-3 times that of metal, and a relatively low thermal conductivity, 1/100 to 1/1000 that of metal. At the same time, its resistance to the temperature rises in a short time , is also outstanding, and it is used in rockets, missiles, and spacecrafts.
7. Long-term temperature resistance and flame retardancy. Temperature resistance mainly depends on the resin used. The temperature used for a long time cannot exceed the heat deformation temperature of the resin. As high-temperature resistant materials， carbon fiber composite materials have a much lower thermal expansion coefficient than ordinary plastics. They have excellent mechanical properties at low temperatures and will not melt at high temperatures. However, the strength and modulus will decrease at high temperatures.
8. Excellent machining performance. It can be cut, drilled, turned, sanded, tapped, etc.
| Fiberglass Rod | |||||||
| Diameter | Weight | Diameter | Weight | ||||
| mm | inch | g/m | lb/ft | mm | inch | g/m | lb/ft |
| 2 | 0.079 | 6 | 0.004 | 17.5 | 0.689 | 481 | 0.323 |
| 3 | 0.118 | 14 | 0.009 | 18 | 0.709 | 509 | 0.342 |
| 3.2 | 0.126 | 16 | 0.011 | 19 | 0.748 | 567 | 0.381 |
| 4 | 0.157 | 25 | 0.017 | 20 | 0.787 | 628 | 0.422 |
| 5 | 0.197 | 39 | 0.026 | 22 | 0.866 | 760 | 0.511 |
| 6 | 0.236 | 57 | 0.038 | 24 | 0.945 | 905 | 0.608 |
| 6.35 | 0.25 | 63 | 0.043 | 25 | 0.984 | 982 | 0.66 |
| 7 | 0.276 | 77 | 0.052 | 25.4 | 1 | 1013 | 0.681 |
| 7.5 | 0.295 | 88 | 0.059 | 26 | 1.024 | 1062 | 0.714 |
| 8 | 0.315 | 101 | 0.068 | 28 | 1.102 | 1232 | 0.828 |
| 8.5 | 0.335 | 113 | 0.076 | 30 | 1.181 | 1414 | 0.95 |
| 9.5 | 0.374 | 142 | 0.095 | 32 | 1.26 | 1608 | 1.081 |
| 10 | 0.394 | 157 | 0.106 | 35 | 1.378 | 1924 | 1.293 |
| 11 | 0.433 | 190 | 0.128 | 36 | 1.417 | 2036 | 1.368 |
| 12 | 0.472 | 226 | 0.152 | 38 | 1.496 | 2268 | 1.524 |
| 12.7 | 0.5 | 253 | 0.17 | 40 | 1.575 | 2513 | 1.689 |
| 14 | 0.551 | 308 | 0.207 | 45 | 1.772 | 3181 | 2.137 |
| 15 | 0.591 | 353 | 0.237 | 50 | 1.969 | 3927 | 2.639 |
| 15.7 | 0.618 | 387 | 0.26 | 50.8 | 2 | 4054 | 2.724 |
| 16 | 0.63 | 402 | 0.27 | 76 | 2.992 | 9073 | 6.097 |
| 16.5 | 0.65 | 428 | 0.287 | 100 | 3.937 | 15708 | 10.555 |
| If there are any differences in parameters, staff will inform you during consultation | |||||||
