12mm tube fiberglass /acrylic and epoxy
2 year agoIn thermoplastic pultrusion, preheated continuous fiber bundles are pulled into an impregnation machine to completely saturate the fibers. The melt-impregnated reinforcement is then passed through the cooling mold, controlling the shape, size and finish of the final product. A mechanism is used to control the speed of the process and create a drag force on the product. Finally, the final product is cut using a pelletizing system.

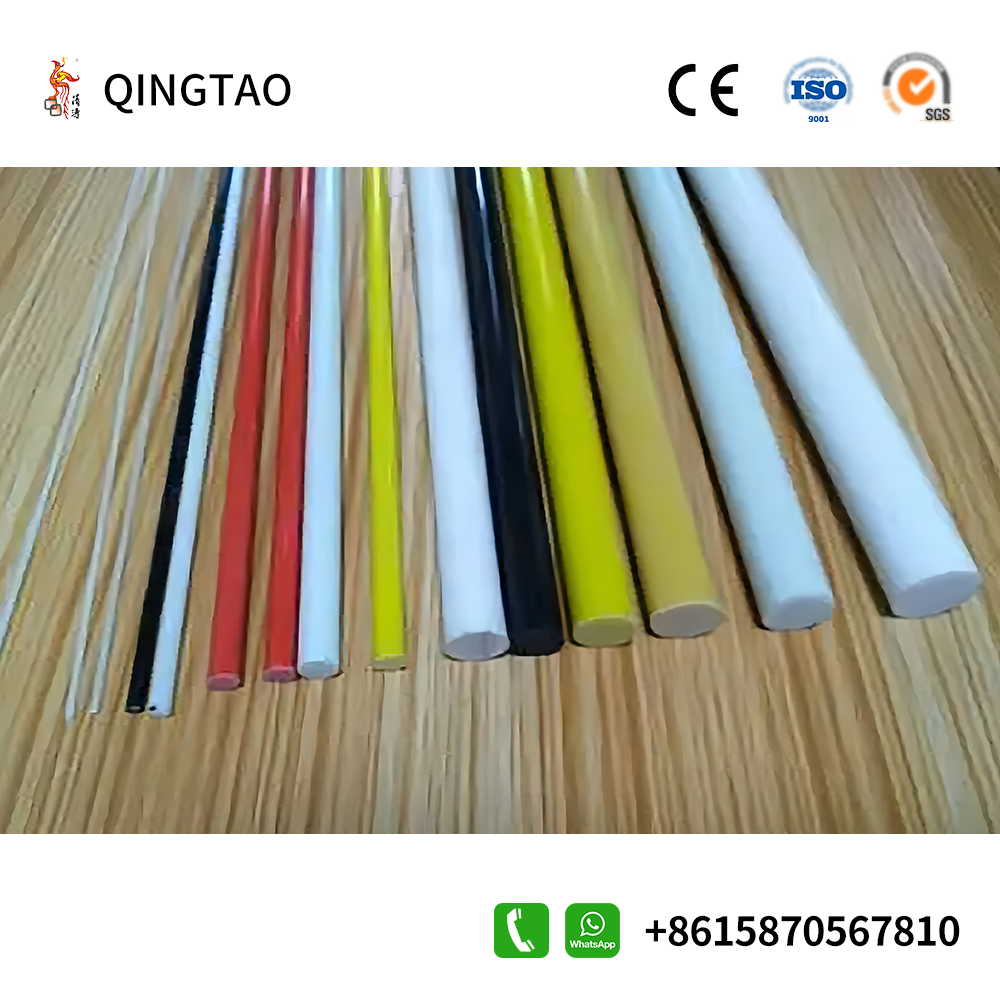

Glass fiber rod 0.472 is a pultruded fiberglass composite material, which is a thermosetting (Fiberglass cloth) elastic material made of continuous glass fiber roving and resin under the traction and molding of a pultrusion molding machine; the resin-rich layer on the surface makes it have good anti-corrosion properties. It has light weight, high(glass yarn) strength, good elasticity, stable and precise dimensions, and has excellent identity such as insulation, non-heat conductivity (Fiber glass), flame retardant, beautiful appearance and easy maintenance. It is the best alternative to steel and other materials in projects with corrosive environments. Outstanding products, and widely used in: optical cable reinforcement core, sports equipment products, flagpoles, car hood poles, tent poles, grain machine booms, curtain poles, sign poles, exhaust fan columns, automobile antennas, building and bridge reinforcement, automatic transmission shafts , golf clubs, yard fences, kite frames, aluminum film balloon frames, umbrella frames, support blanket frames, aircraft model frames, luggage frames, fishing gear accessories, etc. The specifications are: 0.5mm~~~90mm (generally commonly used specifications), Special specifications (glass rod)can be molded and produced according to clients needs.
Fiberglass Rod | |||||||
Diameter | Weight | Diameter | Weight | ||||
mm | inch | g/m | lb/ft | mm | inch | g/m | lb/ft |
2 | 0.079 | 6 | 0.004 | 17.5 | 0.689 | 481 | 0.323 |
3 | 0.118 | 14 | 0.009 | 18 | 0.709 | 509 | 0.342 |
3.2 | 0.126 | 16 | 0.011 | 19 | 0.748 | 567 | 0.381 |
4 | 0.157 | 25 | 0.017 | 20 | 0.787 | 628 | 0.422 |
5 | 0.197 | 39 | 0.026 | 22 | 0.866 | 760 | 0.511 |
6 | 0.236 | 57 | 0.038 | 24 | 0.945 | 905 | 0.608 |
6.35 | 0.25 | 63 | 0.043 | 25 | 0.984 | 982 | 0.66 |
7 | 0.276 | 77 | 0.052 | 25.4 | 1 | 1013 | 0.681 |
7.5 | 0.295 | 88 | 0.059 | 26 | 1.024 | 1062 | 0.714 |
8 | 0.315 | 101 | 0.068 | 28 | 1.102 | 1232 | 0.828 |
8.5 | 0.335 | 113 | 0.076 | 30 | 1.181 | 1414 | 0.95 |
9.5 | 0.374 | 142 | 0.095 | 32 | 1.26 | 1608 | 1.081 |
10 | 0.394 | 157 | 0.106 | 35 | 1.378 | 1924 | 1.293 |
11 | 0.433 | 190 | 0.128 | 36 | 1.417 | 2036 | 1.368 |
12 | 0.472 | 226 | 0.152 | 38 | 1.496 | 2268 | 1.524 |
12.7 | 0.5 | 253 | 0.17 | 40 | 1.575 | 2513 | 1.689 |
14 | 0.551 | 308 | 0.207 | 45 | 1.772 | 3181 | 2.137 |
15 | 0.591 | 353 | 0.237 | 50 | 1.969 | 3927 | 2.639 |
15.7 | 0.618 | 387 | 0.26 | 50.8 | 2 | 4054 | 2.724 |
16 | 0.63 | 402 | 0.27 | 76 | 2.992 | 9073 | 6.097 |
16.5 | 0.65 | 428 | 0.287 | 100 | 3.937 | 15708 | 10.555 |
If there are any differences in parameters, staff will inform you during consultation |
