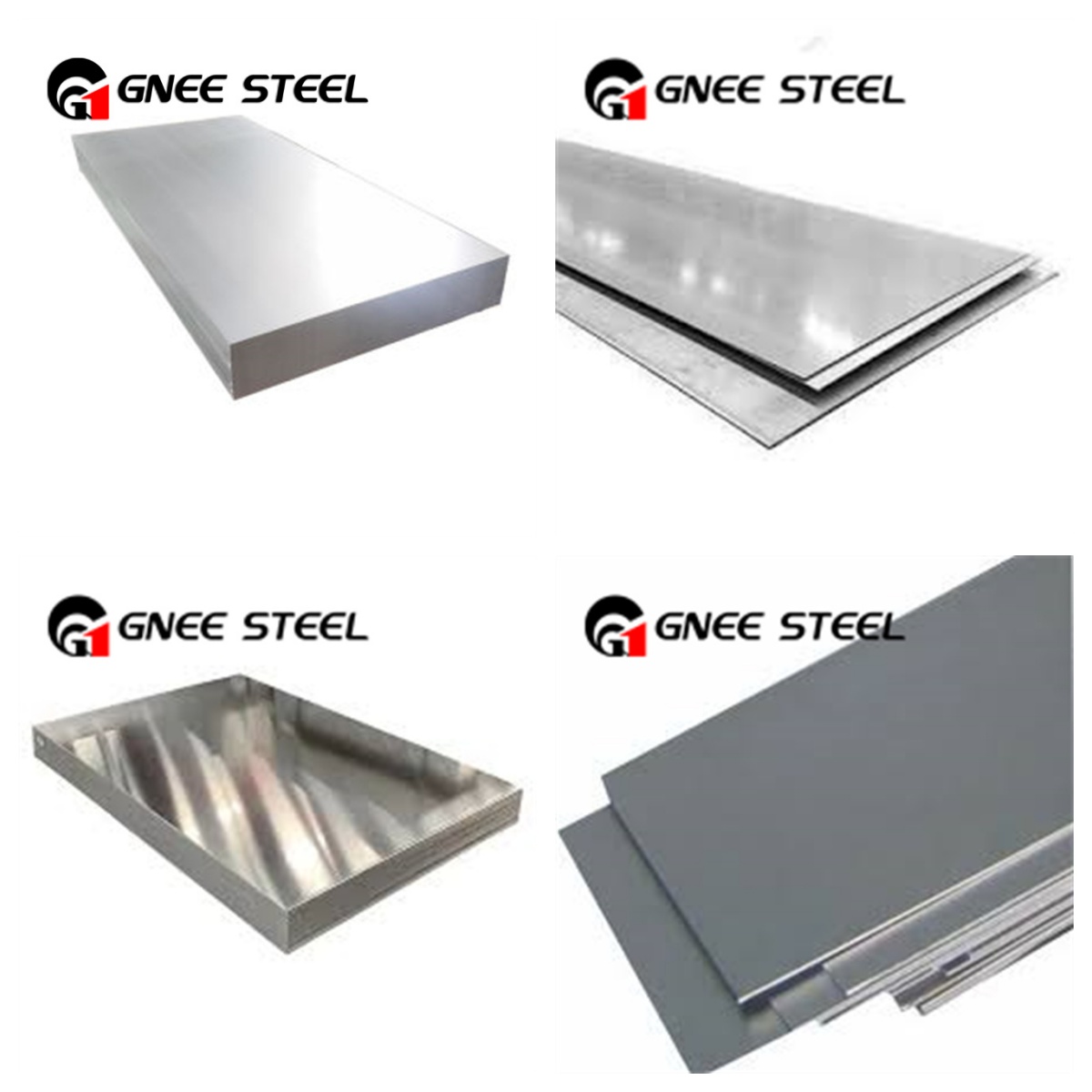

Titanium Steel Clad Plate Overview
In the industry field, the Stainless steel and Titanium alloy plate welded material is well-used into use. Titanium stainless steel clad plate (Ti/SS) is a composite material combined with the titanium plate or titanium alloy and the alloy steel plate. It is always metallurgically bonded by explosion bonding, or explosion-roll bonding. Titanium and stainless alloy steel bonding is an indispensable part of the modern manufacturing industry, and its technical standards and requirements are getting higher and higher.
The clad plate will be used for pressure vessels, transition joints and other equipment parts under a certain pressure and high temperature in a corrosive environment.
Performances of Titanium Stainless Steel Clad Plate
-
Corrosion resistance
-
Heat resistance
-
High strength
-
Good toughness
In real production activities, Titanium stainless steel clad plates is widely used in Aircraft and Aerospace, Oil & Gas, Petroleum refining, Pharmaceutical, Chemical industry etc.
Applicable Materials Table of Titanium Stainless Steel Clad Plate
The Titanium Stainless Steel Clad Plate shall apply for Industrial Standards. The cladding material and the base metal in the table can be combined freely according to different needs. The cladding material can clad to one or two sides of the base metal. Titanium-clad steel sheets should be manufactured in accordance with ASTM B898.
| Product Name | Titanium Stainless Steel Clad Plate |
| Standard | ASTM B898, NB/T 47002.3 |
| Cladding Technique | Explosive welding or Explosion-roll bonding |
| Cladding Material Scope | GB/T Titanium (TA1, TA2, TA9, TA10 etc ) |
| ASTM B265 Titanium (Gr1, Gr2, Gr7, Gr12 etc ) | |
| Base Metal Scope (various carbon steels) | GB/T24511-2009 (S30408, S30403, S31603) |
| GB/T4238 (12Cr18Ni9, 06Cr19Ni10, 20Cr25Ni20) | |
| GB/T47010 (S31608) | |
| ASTM A240/240M-08: | |
| (S30400, 304) (S30403, 304L) (S31603,316L) (S31600, 316) | |
| (S30200, 302) (S31000, 310) (S31608, 316) | |
| Cladding sizes | Thickness: Around 1mm-12mm |
| Width: Around 400mm-3000mm | |
| Length: Around 1000mm-4000mm | |
| (negotiation, customizable ) | |
| Clad Plate Total Thickness | Around 4-60mm |
| Clad Plate Total Width | Around 3000mm or Customizable If the clad plate width or diameter is more than 1450mm, the base metal can be jointed by welding to reach the needed size. |
| Clad Plate Total Length | Around 10000mm or Customizable |
| Surface Treatment | Polished, blast cleaned, pickled and passivated as per the applicable standard, or Negotiable. |
| Delivery Period | 3-6 months or Negotiable |
| Package | Export sea worthy package: waterproof papers+steel bands etc. |
| Payment | T/T, L/C or Negotiable |
| Industries | Oil & Gas, Petroleum refining, Chemical industry, Aircraft and Aerospace, Pharmaceutical Industry etc. |
| Application | Pressure Vessel, Reactor, Tower, Chilling unit, Pre-heater, Pump vessel, Heat-exchanger, Crystalizer Digester, Hydrocracker, Polymerizers, Shift Reactors. |
