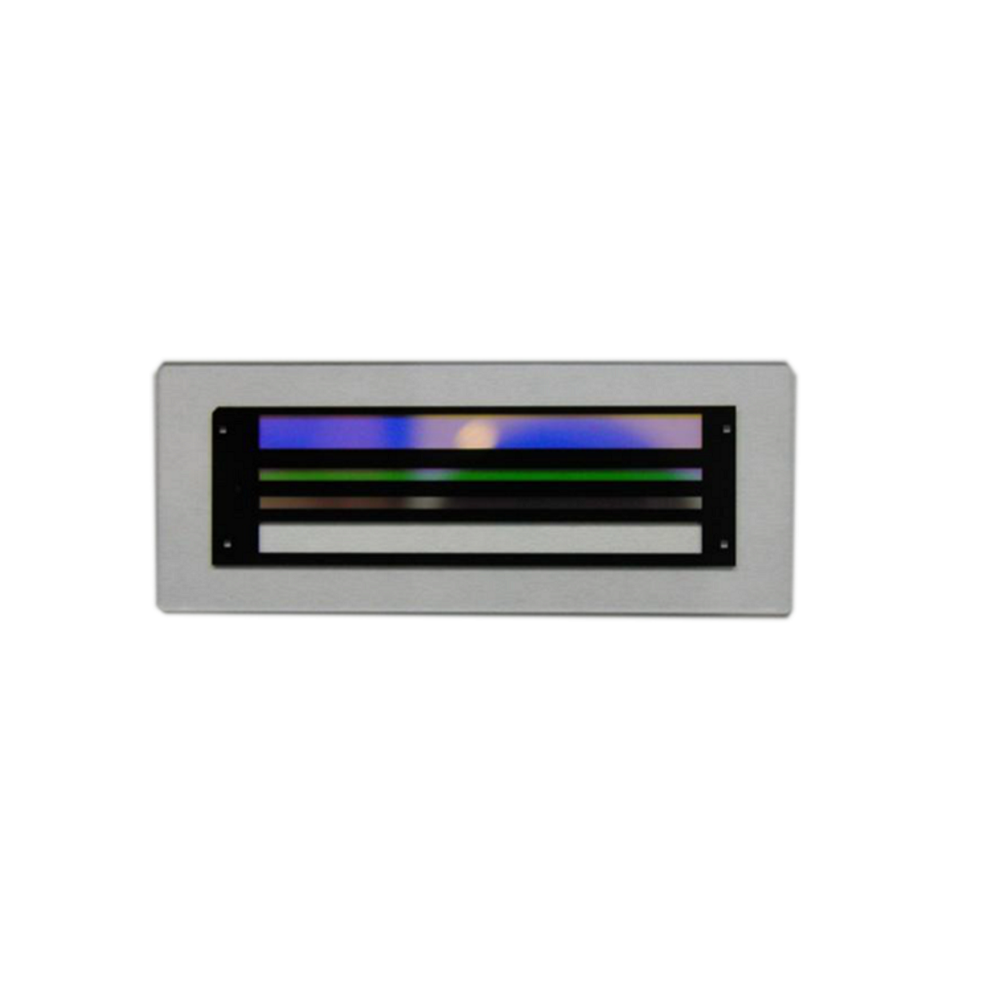

Multispectral filter
2 year ago
The multispectral filter is precisely produced by the composite process of photolithography + coating. The deposition mask is produced by the high-precision reproduction photolithography technology, and the high-performance filter film of each spectrum segment is successively plated within the deposition pattern. Multi-spectral filters have high transmittance and excellent filtering characteristics. Multiple filter channels are integrated into a single substrate, and the spatial alignment accuracy is extremely high.
Application: Used in space multispectral imaging, multispectral imaging spectrometer, medical multispectral imaging.
Standard product：
Central wavelength（nm）
Half
peak bandwidth
（nm）
Gradient（nm）
Block deth
Average transmittance（%）
550±10
80±20
15
OD≥3@300-1100nm
T≥92%
615±10
350±20
20
650±10
60±20
15
820±10
120±20
25
Can be customized on demand
