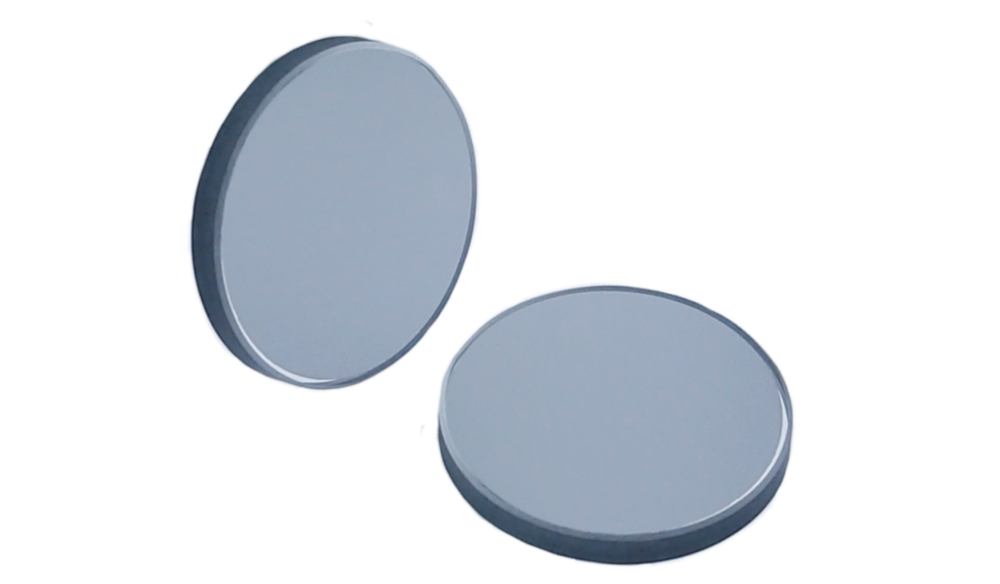

Laser filter
2 year ago
The laser radar filter is the core element of the laser detection and ranging system. The general wavelength of the laser radar filter produced by our company is 532 nm, 905 nm, 940 nm, 1064 nm, 1550 nm, etc.
Application:Intelligent vehicle driving, atmospheric measurement, ocean research, military and other fields.
Technical specifications：
|
Center wavelength（nm） |
Half Peak bandwidth（nm） |
Peak transmittance（%） |
Cut-off wavelength（nm） |
Cut-off depth |
The angle of incidence (half peak bandwidth of 40 ± 1 nm as an example)(40±1nm)
|
Laser damage threshold |
Note |
|

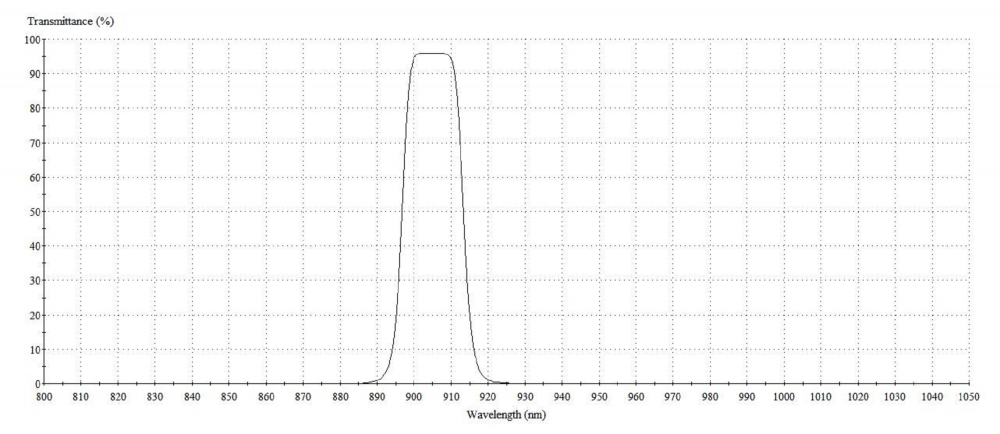

905±1nm |
10-40nm |
≥95% |
200-1200 |
≤OD6 |
When Aoi = 10 ° and CWL OFFSET = 4NMAOI = 20 ° and CWL OFFSET = 15 nmaoi = 25 ° , CWL OFFSET = 73 nm AOI=10°时CWL=4nm AOI=20°时CWL=15nm AOI=25°时CWL=73nm |
≤10J/cm² |
Can be customized on demand |
