3/8'' 4V320-10 5/2 Way Airtac Type Pneumatic Solenoid Valve 24VDC
Product introduction
The 4V320-10 AIRTAC type pneumatic solenoid valve, also known as a directional control solenoid valve. It is a double-head double-position closed pneumatic valve of the 4V300 series. Its working medium is 40 micron filtered air, the working temperature is -20~70℃, and the maximum operating frequency is 5 cycle/sec. This type of double control solenoid air valve has memory function and is usually used in pneumatic systems. We have multiple voltage options 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC.
Aluminum valve body
The body of 4V320-10 is made of aluminum alloy, and its inner hole adopts special processing technology to achieve low friction,low starting pressure and longer service life.

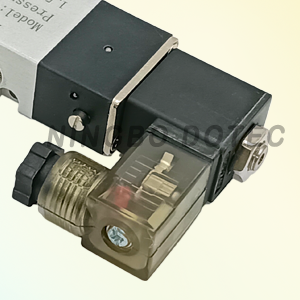

Stable Solenoid Coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.
Wide application
It is widely used in electromechanical devices that control air or process gas flow, and is commonly used in pneumatic systems with pneumatic cylinders and filters.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
4V310-08 |
4V320-08 |
4V330C-08 4V330E-08 4V330P-08 |
4V310-10 |
4V320-10 |
4V330C-10 4V330E-10 4V330P-10 |
|
Position and Way No. |
5/2 Way |
5/3 Way |
5/2 Way |
5/3 Way |
||
|
Effective Section Area |
4V310-10, 4V320-10: 28.0mm² (CV=1.65) 4V330C-10: 21.3mm² (CV=1.25) |
|||||
|
Port Size |
In=Out=Exhaust=G1/4 '' |
In=Out=G3/8 '' Exhaust=G1/4 '' |
||||
|
Working Medium |
40 Micron Filtered Air |
|||||
|
Acting Type |
Internal pilot or external pilot |
|||||
|
Working Pressure |
0.15~0.8 MPa (21~114 psi) |
|||||
|
Max. Pressure Resistance |
1.2 MPa (175psi) |
|||||
|
Temperature |
-20~70℃ |
|||||
|
Body Material |
Aluminum Alloy |
|||||
|
Max Frequency |
5 cycle / sec |
3 cycle / sec |
5 cycle / sec |
3 cycle / sec |
||
|
Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC |
|||||

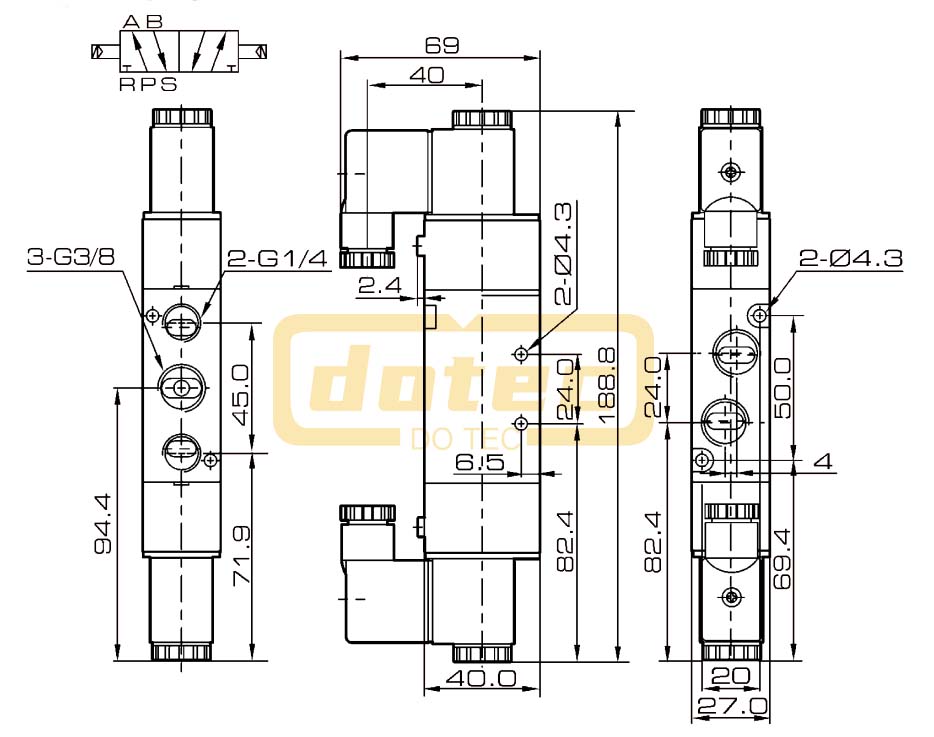

4V320-10 Dimension
About Us

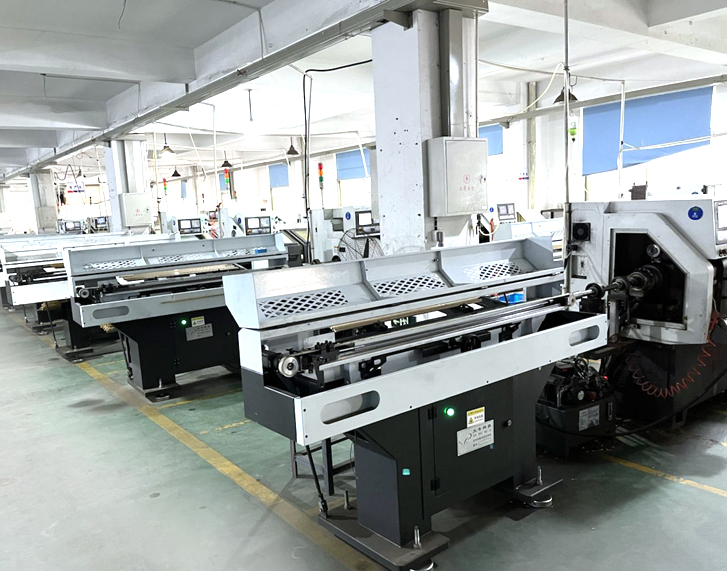

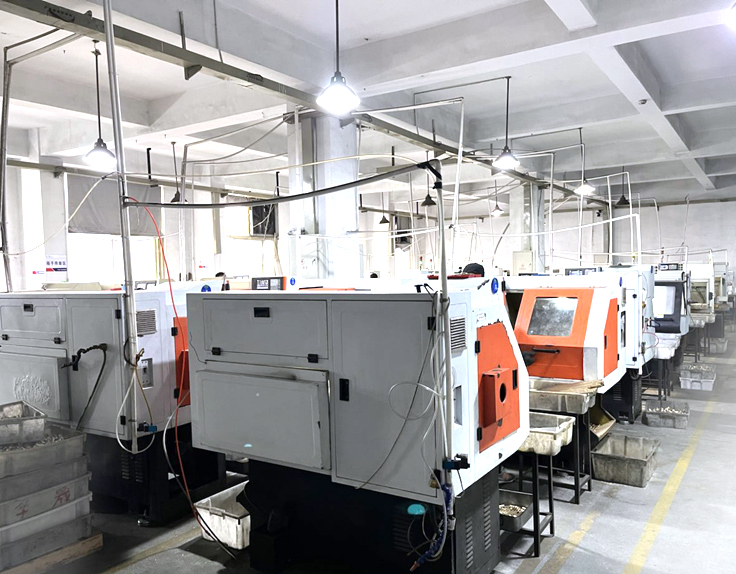

Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
