GPO-3 UPGM203

UPGM203, also known as GPO-3 , commonly used colors are white, red, brown-red. Refers to the unsaturated polyester glass fiber mat board material, mechanical and electrical use, good electrical properties under high humidity, good mechanical properties at moderate temperatures, with flame retardant, arc resistance and resistance to leakage traces of good performance.

Advantages of UPGM203:

1. UPGM203 insulating board electrical performance: it is the superior insulator of electric insulation laminated products, here in accordance with the grade characteristics, the use of its special properties, in the field of engineering and technology is widely used in electrical applications.

2. UPGM203 insulating board is easy to mold: UPGM203 laminate is famous for its easy to make molding at high speed in processing, this material can be easily processed and molded by using standard metal equipment; it can be punched (punched cleanly and quickly), drilled, machined, sheared and abraded.

3. UPGM203 Insulation Board Insulation Board Flame Retardant: It is a flame retardant UL 94 V-O rated product and is a halogen free laminate.

4. UPGM203 Insulation Board Thermal Performance: Temperature resistant UPGM203 laminates provide good protection and space stability during warming, these laminates have UL temperature ratings in the 120-210°C electrical and 130-210°C mechanical ranges.

5. UPGM203 Insulation Board Mechanical Strength: High-strength fiberglass reinforced polyester laminates will not shatter due to their isolation properties, rigid laminates provide structural support, and easily curved laminates can be utilized in applications with a bending diameter of 19mm.

The characteristics of gpo3 by HONY Plastic are:

1. Excellent arc resistance (arc resistance 2 180 seconds)

2. Excellent resistance to leakage traces (CT12600V)

3. Excellent heat resistance (heat-resistant grade of 155 ° C or more)

4. Excellent thermal shock resistance (operating temperature 273°C +155 "CC) Characteristics of products

5. Excellent flame retardancy (UL 94 V.0)

6. Excellent machining performance, high degree of automation processing

7. Low smoke, halogen-free products (NF-F16-101/102 French national standard certification)

8. RoHS. Reach certified products

Heat-resistant GPO-3, also known as UPGM203, is a hard insulating material made of alkali-free glass fiber mat impregnated with unsaturated polyester paste and hot-pressed with appropriate additives.

Colors are: red, white, brown-red, it is in the high humidity environment of the electrical properties of good, medium temperature mechanical properties, with flame retardant, heat resistance, arc resistance, resistance to leakage trace special effects.

GPO-3's heat-resistant grade can reach: 155°, is flame retardant 94-V0 level, usually can be applied in many fields:

1. Application in circuit breakers: frame circuit apparatus safety baffle, safety shield, spacing shield, spacing liner, interphase spacer, etc.;.

2. Application in molded case circuit breakers: inter-phase spacer, arc extinguishing chamber arc spacer, etc.;.

3. Application in motors and motors: armature parts of motors, movable cover plates, slotted wedge stators, fixed spacers, thin spacers, carbon brush holders, etc.; and

4. Applications in switchgear: front end, back end, top end, bottom end, phase-to-phase spacer in arc isolation system, etc.; and

5. Other applications: arc-resistant structural parts for electrical cabinets.

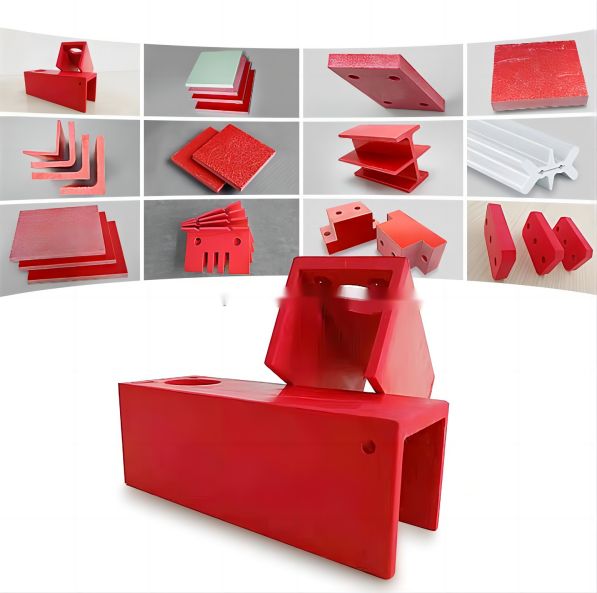

HONY Plastic has been supplying heat-resistant GPO-3 for a long time with sufficient stock, stable quality and timely delivery. At the same time, HONY Plastic also has a variety of machining equipment: CNC, lathe, milling machine, etc., can be synchronized to complete the supply of heat-resistant GPO-3 materials and customized product processing.
