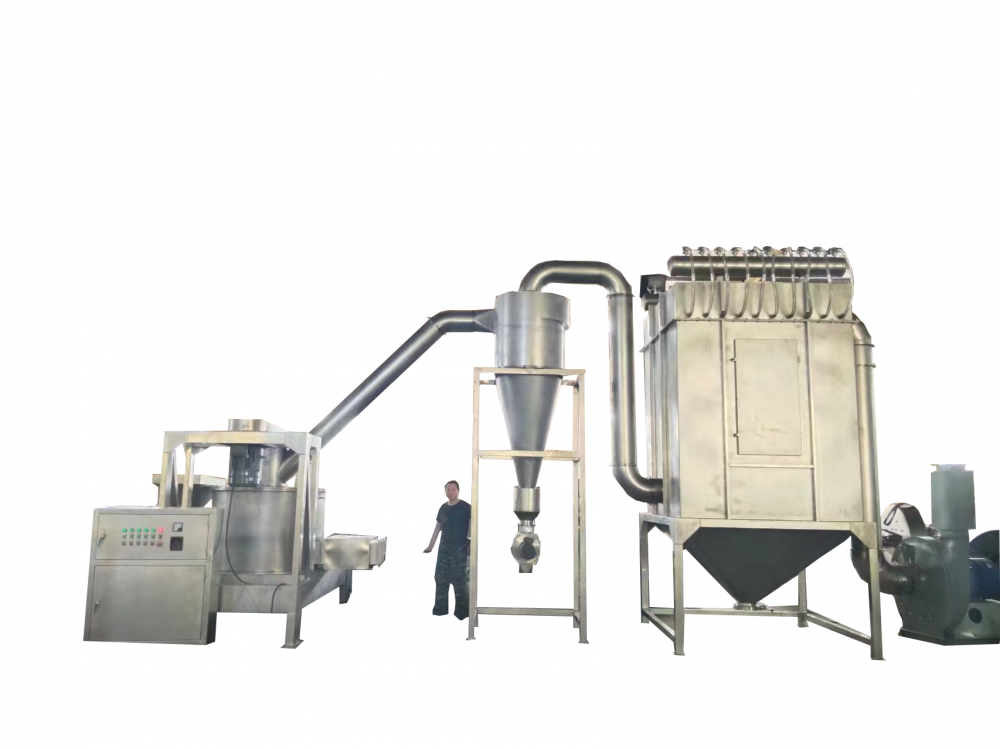

russia customer WFJ120 powder grinding machine
2 year ago
working principle:
The WFJ superfine powder grinding machine works on the principle of impact and shearing between the fixed serrated teeth and the rotating serrated teeth of the grinding disc. The material is fed into the grinding chamber through a screw feeder, and is then pulverized into fine particles by the rotating grinding disc.
The pulverized material is discharged from the grinding chamber through a discharge pipe, while the air flow generated by the rotating disc carries the fine particles into a cyclone separator. The cyclone separator separates the fine particles from the air flow, and the collected powder is then discharged through a separate outlet.
Key parameter:
Model
WFJ15
WFJ30
WFJ45
WFJ60
WFJ80
WFJ100
Capacity(kg/h)
30-350
50-800
80-1000
100-1200
200-1500
300-1800
Feeding size(mm)
＜10
＜10
＜10
＜10
＜10
＜10
Output size(mesh)
80-500
80-500
80-500
80-500
80-500
80-500
Total motor(kw)
14.87
42.12
60.5
70.45
114
134
Main speed(rpm)
5500
3650
3200
2900
2300
2000
Weight(kg)
1300
2000
2200
3500
3800
4000
Remarks:
1.Delivery:30 working days in factory
2.Payment:30% advance,70% before shipping by TT/Paypal
3.If u feel interested in this machine u can tell me your crushed material,capacity and fineness and voltage requirements so that i can better recommend more suitable for your demands machine.in addition we also produce powder mixing machine,sifting machine,conveyor,drying machine,granulator,capsule filling machine,capsule polishing machine,capsule counting machine and capsule blister packing machine etc.if u need it someday can contact me anytime ,what do u think
