Button Dyeing Machine
GD-Button dyeing machine is suitable for nylon, hemp, cotton, rayon, blended fiber finished products, such as clothes, socks, towels, sets, etc., is to provide the flexible operation of postpartum dyeing (finished products after dyeing), the inner cage positive and negative mixing dye liquid, drive the fabric floating, so that the dyeing uniform, deep, is the ideal dyeing equipment.

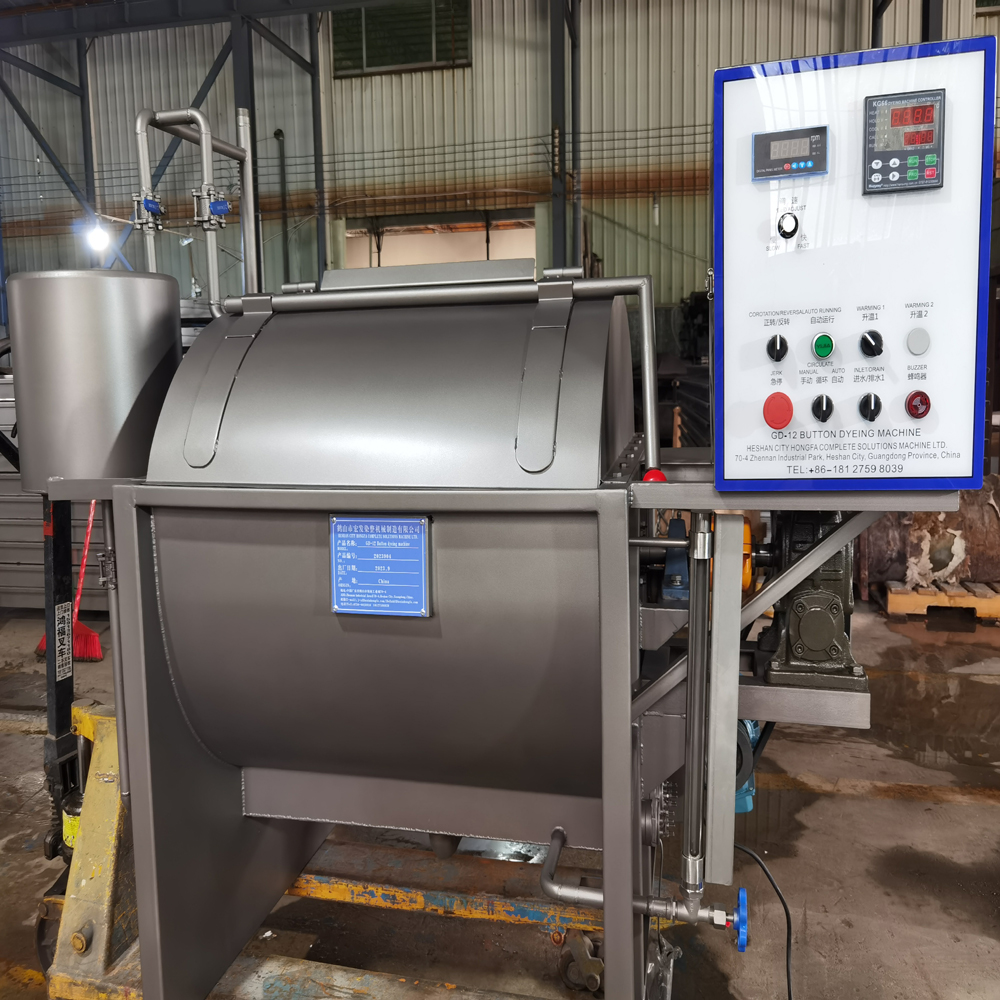

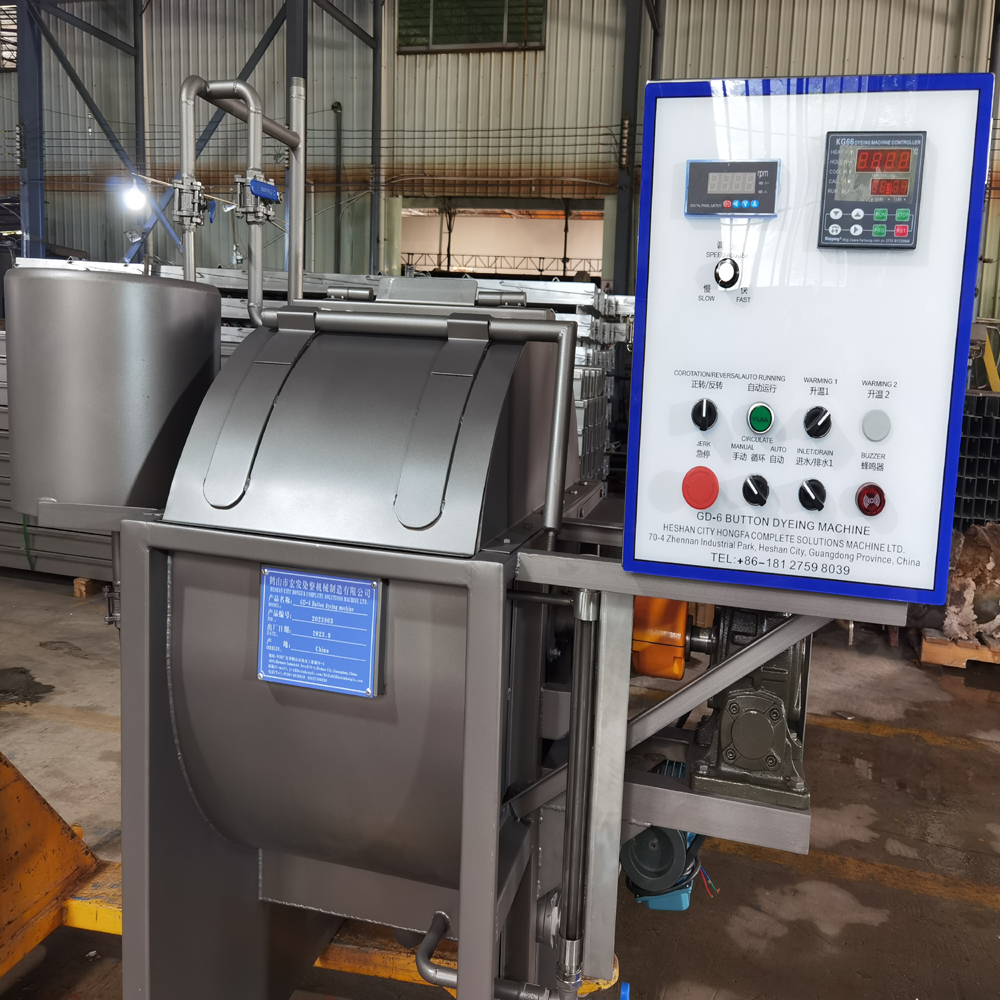

Product images
Technical performance
The cylinder block and surface are made of SUS stainless steel.
Cage size: φ150MM X475MM X 6 (12)
Bath ratio: Energy-saving, low bath ratio 1:10 to 1:20.
Frequency conversion speed control: 0-------40 RPM, with positive and negative automatic control.
Drive motor power: equipped with 0.75W motor and 80 1:60 reducer.
GD-6 series has a separate precision heating system, PT-100 thermocouple, with a programmable temperature control computer, with a heating rate.
Operating temperature: room temperature to 99. C, temperature error: ±1. C
Power supply: AC380V/50HZ, full power 1KW.
Electric heating GD-6=17KW, GD-12=21KW
Dimensions: GD-6: 1010X1000X1410(MM).
GD-12 : 1700X1000X1410(MM).
Parameters
|
Model |
RPM（r/min） |
Power（kw） |
Dimension (LxWxH)mm |
Weight（kg） |
Electric power （KW） |
|
GD-6 |
1-40 |
0.75 |
1010×1000×1410 |
130 |
16 |
|
GD-12 |
1-40 |
0.75 |
2030×700×1410 |
150 |
20 |
