Operation principle of UAV jamming module: The principle of radio frequency jamming is mainly used to counter the jamming module of UAV. The control of unmanned aerial vehicle (UAV) usually depends on radio signals. Therefore, by transmitting radio signals with specific frequencies,and SMA male and Female Connector, the control signals of UAV can be interfered, making it unable to fly normally.It can also match with 2.4G Antenna or 2.4G/ 5.8G Router Antenna, if you wanna 915MHZ fiberglass antenna both ok.
Specifically, the anti-UAV jamming module will first scan and identify the control frequency of the UAV, and then transmit a powerful jamming signal at this frequency. This jamming signal will cover or drown the control signal of the UAV, so that the UAV cannot receive the operator's instructions.

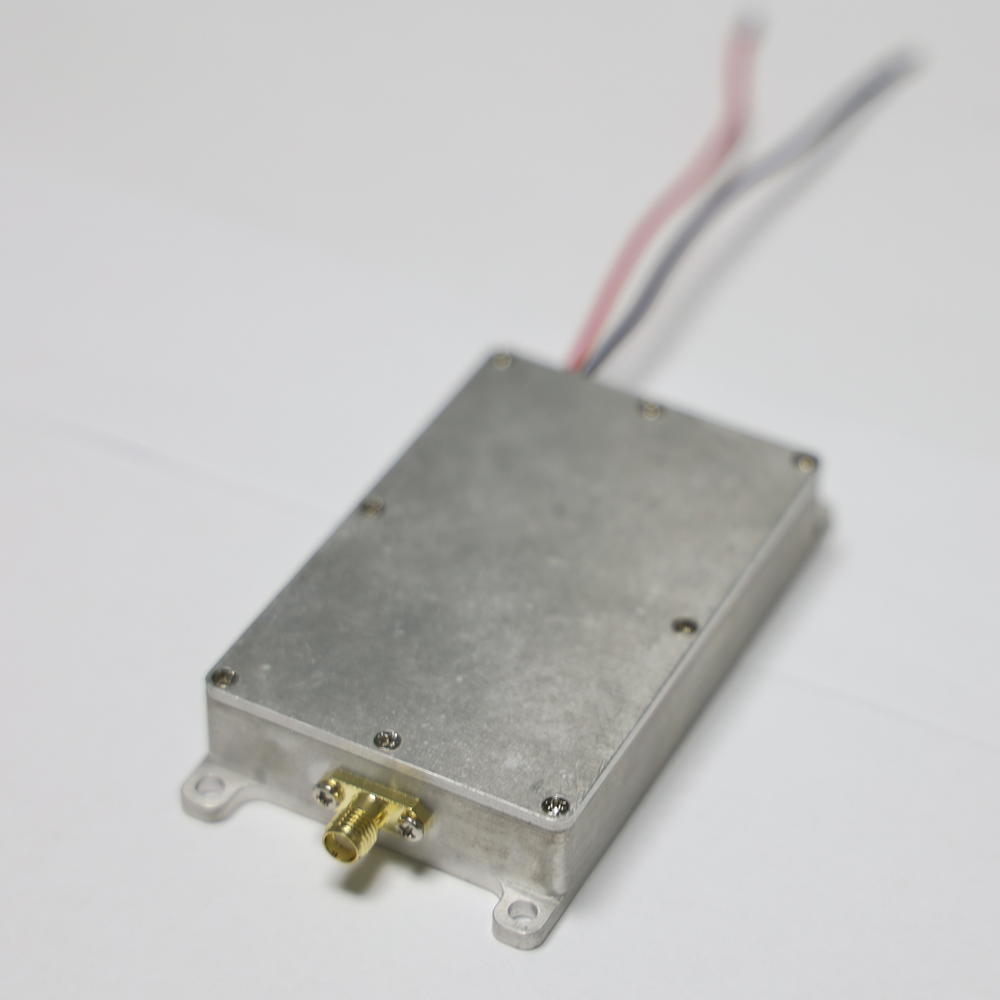

Drone Jamming Module

In addition, some advanced anti-UAV jamming modules can also make the UAV unable to determine its own position by jamming GPS signals, thus losing its direction.

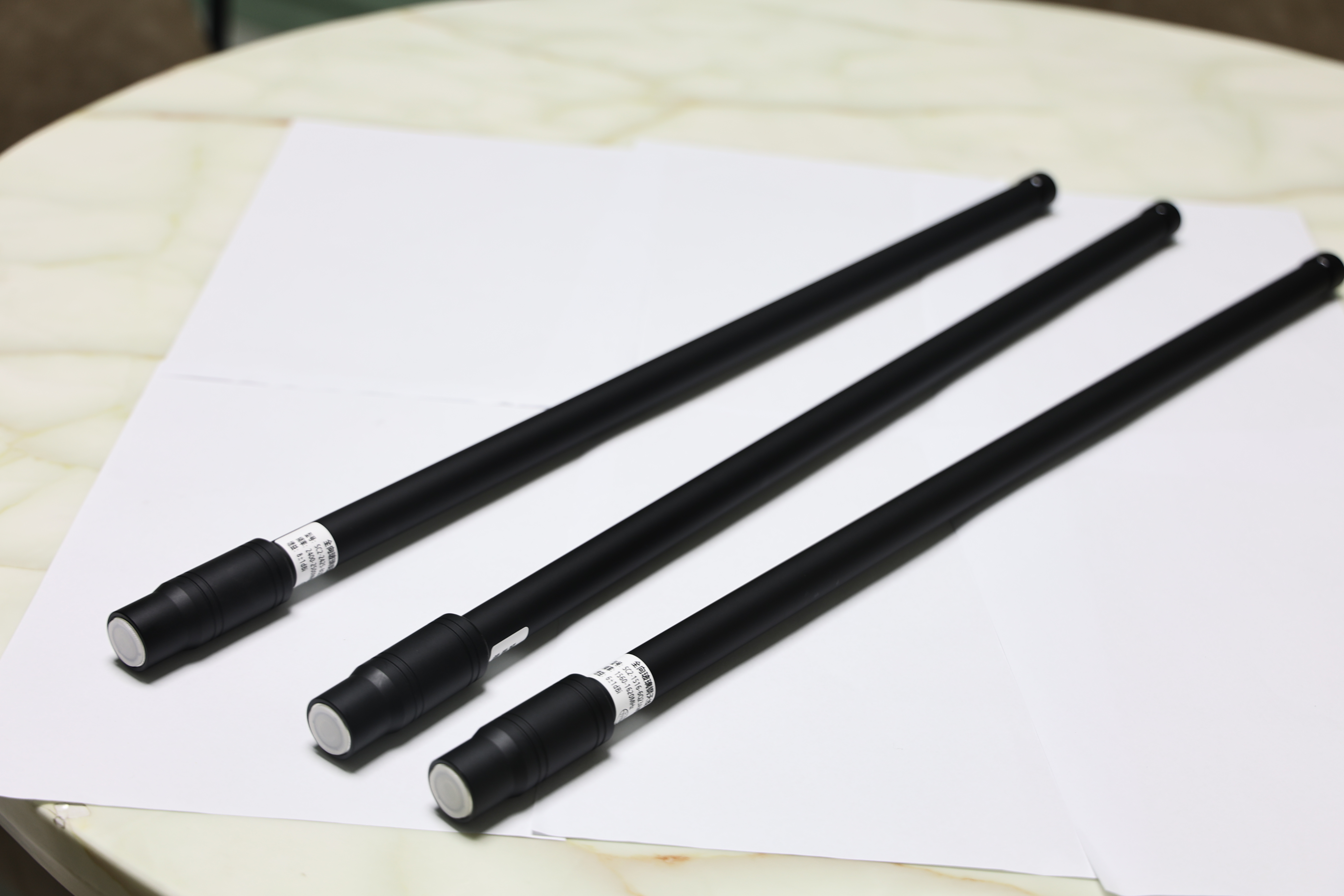

2.4G Outdoor Antenna

Drone Jamming

It should be noted that the use of anti-UAV jamming module needs to comply with relevant laws and regulations, otherwise it may violate the law.

Product Specifications:

Frequency: 900MHz-15.8GHz, versatile for multi-band applications.

Work Temperature: -40°C to +65°C, extreme temp tolerance.

Output Power: 30W for reliable signal transmission.

Work Voltage: DC 24V, stable power supply.

Max Gain: 45dB enhances signal strength and clarity.

Flatness: ±3dB minimizes distortions.

Max Current: 2.9A for efficient power use.

Output VSWR: ≤1.5 for minimal reflected power.

Output Connector: SMA/50Ω, customizable for specific needs.

Switch Control: 0V/0.66V high-low level switch.

Size: 96x36.4x20mm, compact for space savings.

Weight: 0.268kg, lightweight for easy handling.
